Version from MY 2005:

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

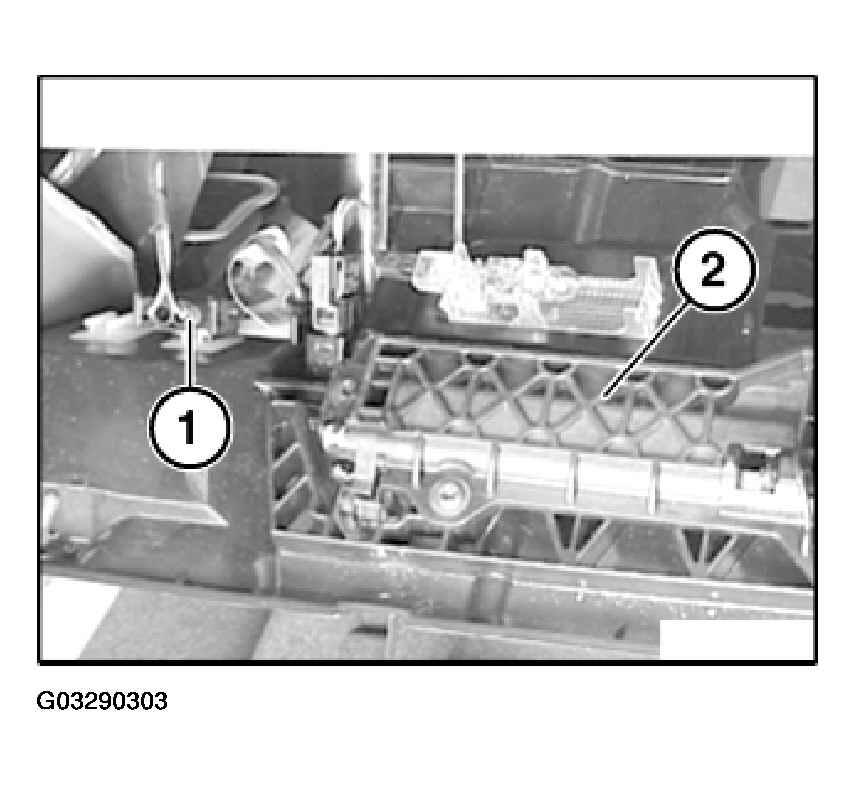

Lever out lock (1) towards rear and detach Bowden cable (2) upwards.

Unhook Bowden cable nipple (3).

Version with active knee protector:

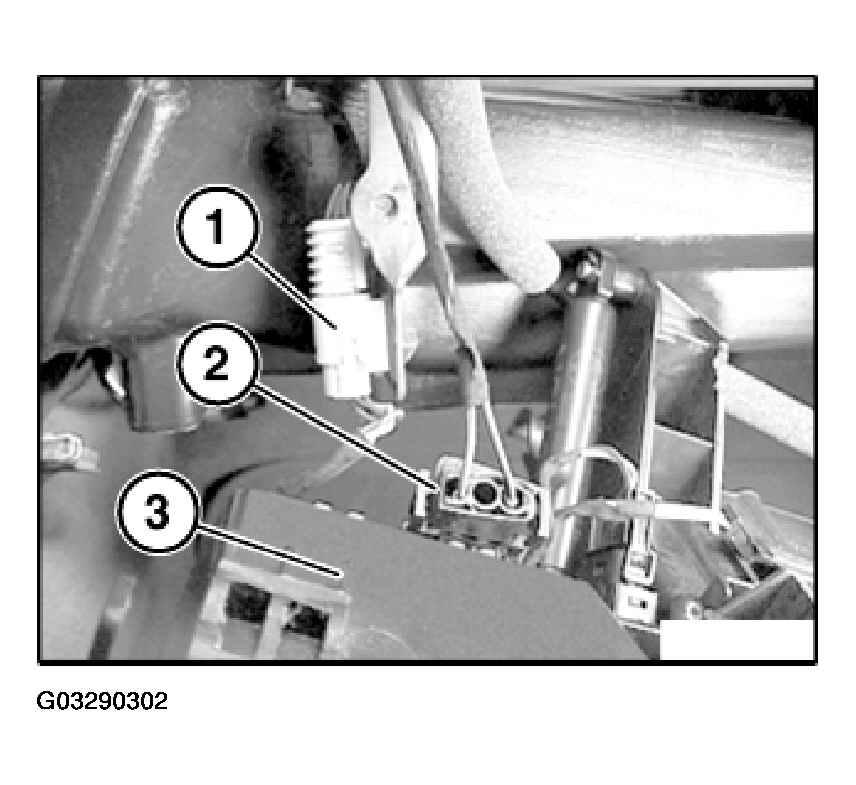

WARNING: Unlock and disconnect plug connection (1) for active knee protector.

Unfasten plug connection (2) and disconnect.

Fig 1: Removing Glovebox

Courtesy of BMW OF NORTH AMERICA, INC.

Remove glovebox (3).

Version without active knee protector:

Unfasten plug connection (1) and disconnect.

Fig 2: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Remove glovebox (2).

Installation:

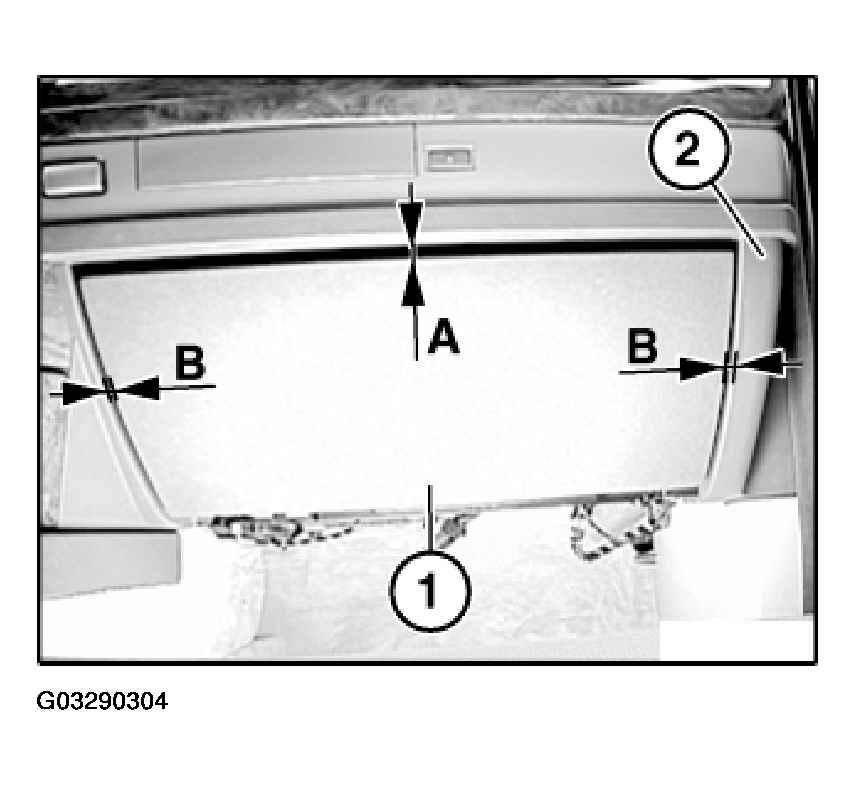

Adjust glovebox (1) to instrument panel (2):

A = approx. 5 mm

B = approx. 4 mm (center)

Check function.

Fig 3: Adjusting Glovebox To Instrument Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Version with active knee protector:

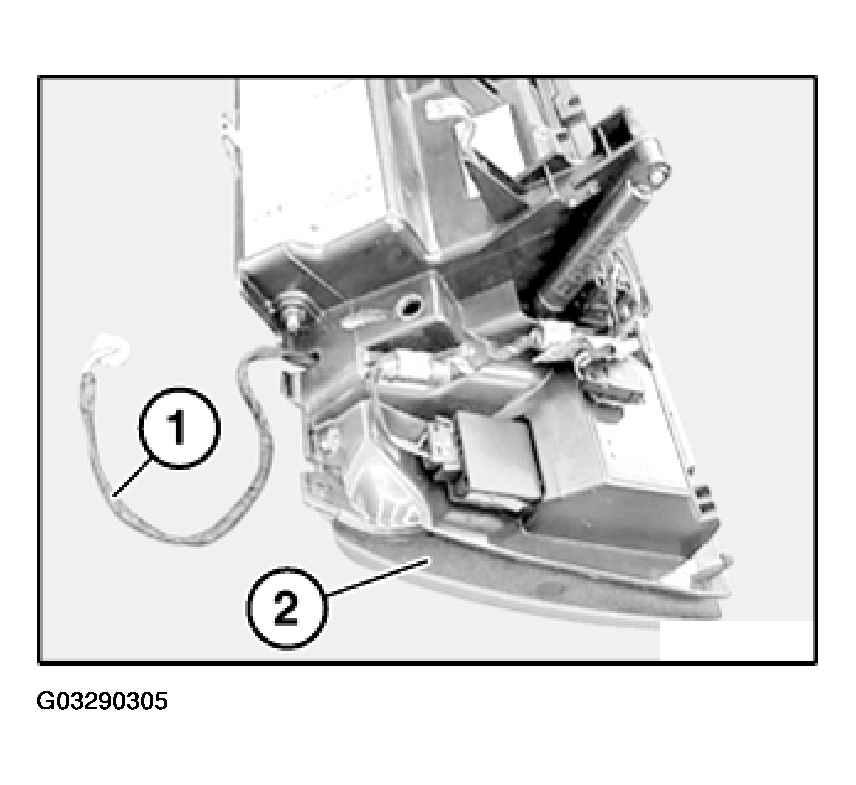

IMPORTANT: Cable (1) on glovebox (2) must not be damaged.

Fig 4: Identifying Cable On Glovebox

Courtesy of BMW OF NORTH AMERICA, INC.
