51 16 190 Removing and installing / replacing lock cylinder in centre armrest

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove center armrest closing cover
Refer to: 51 16 197 REMOVING AND INSTALLING / REPLACING DECORATIVE TRIM ON CENTRE ARMREST

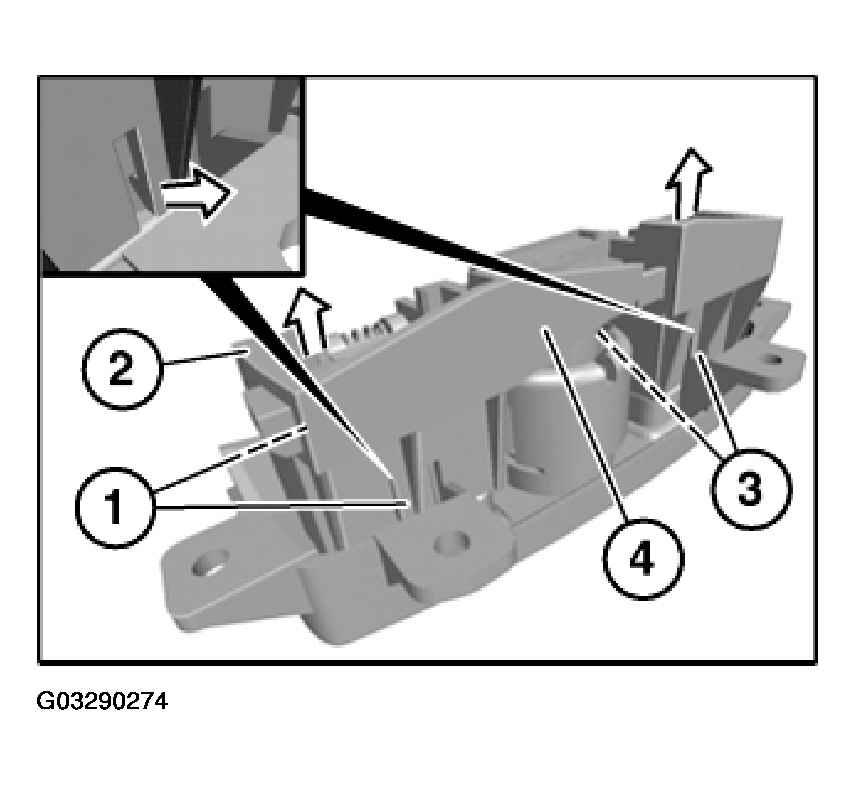

Actuate catches (1 and 3) gently in direction of arrow and detach housings (2 and 4) in direction of arrow.

Fig 1: Actuating Catches

G03290274

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure catches (1 and 3) engage correctly.

Installation:

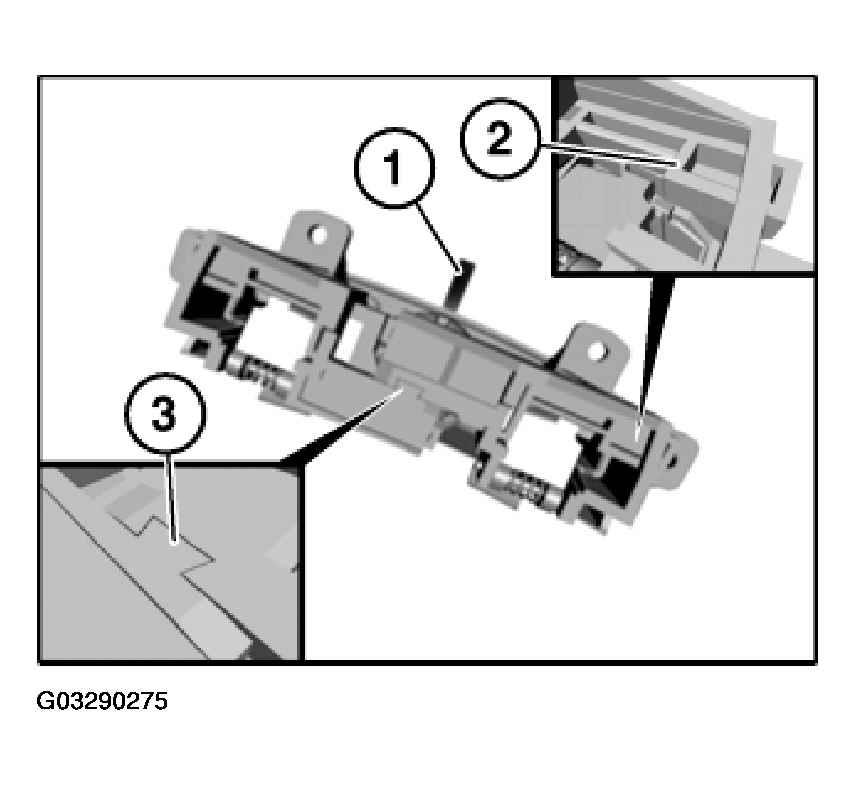

Move key (1) into illustrated (vertical) position.

Fig 2: Moving Key

G03290275

Courtesy of BMW OF NORTH AMERICA, INC.

Slide in lock (2) as far as it will go.

Guide (3) must be flush after housing halves have been fitted.

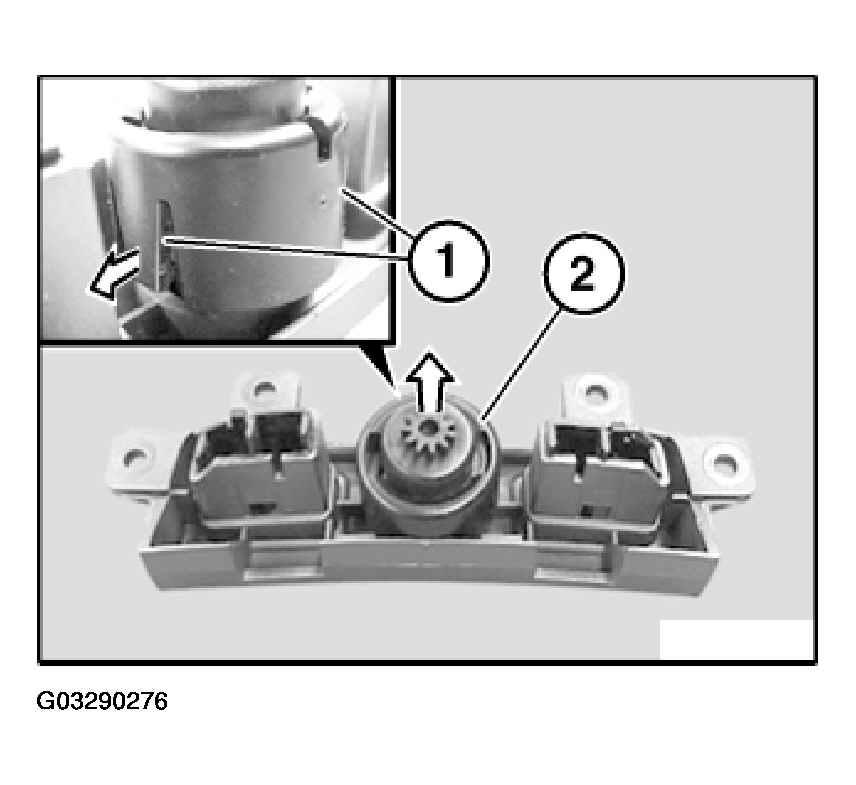

Actuate catches (1) gently in direction of arrow and detach housing (2) in direction of arrow.

Fig 3: Actuating Catches And Detaching Housing

G03290276

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure catches (1) engage correctly.

Installation:

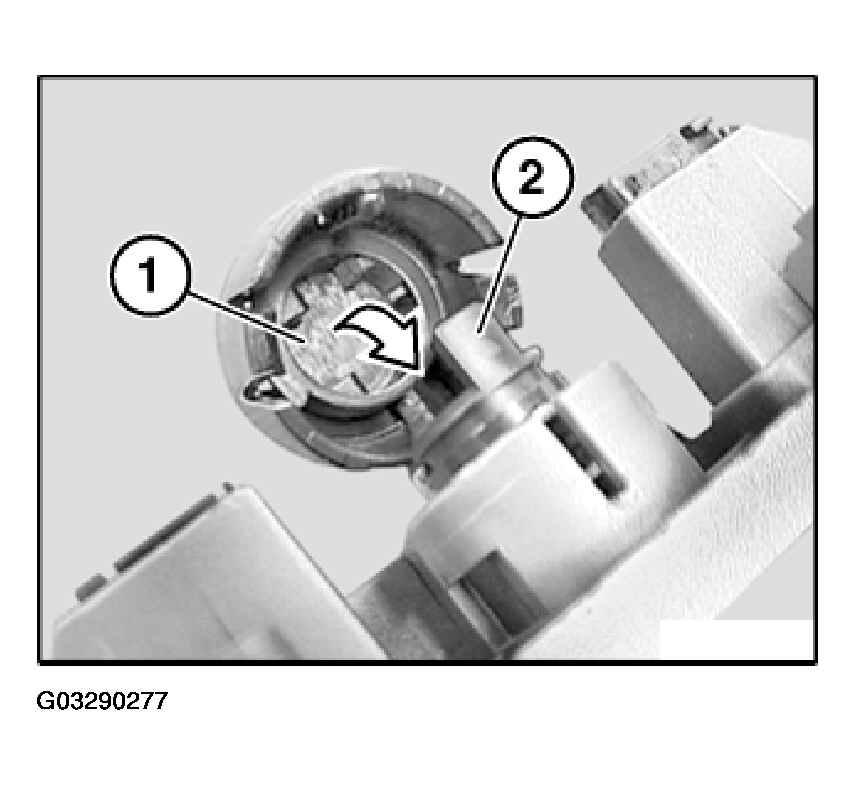

Insert (1) must be correctly seated on lock cylinder (2).

Fig 4: Identifying Insert On Lock Cylinder

G03290277

Courtesy of BMW OF NORTH AMERICA, INC.

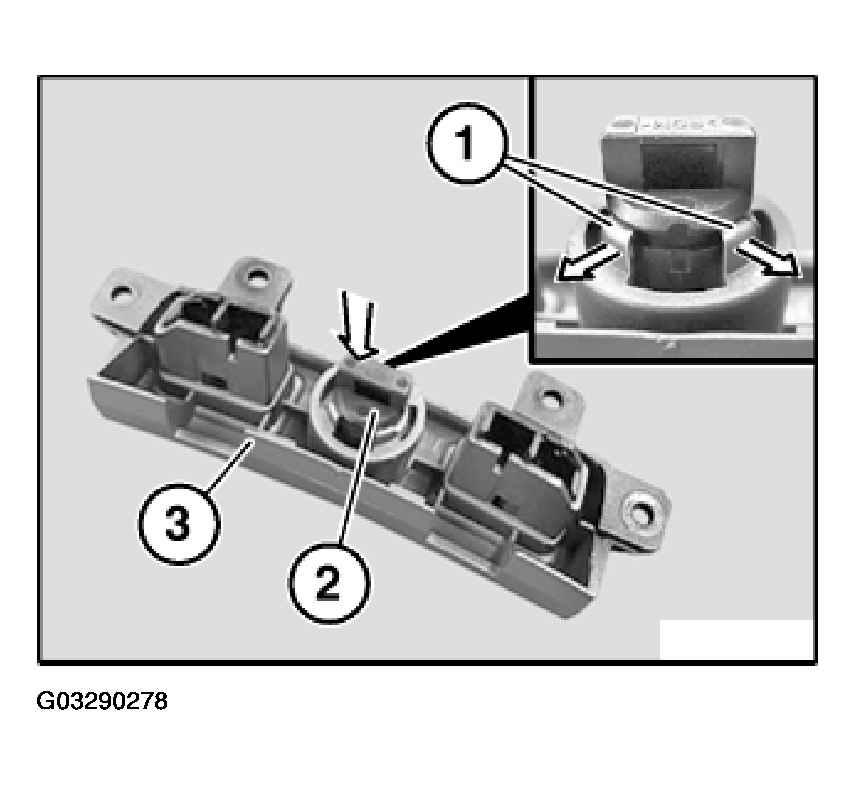

Actuate catches (1) gently in direction of arrow and press lock cylinder (2) in direction of arrow out of housing (3).

Fig 5: Removing Lock Cylinder

G03290278

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure catches (1) engage correctly.
