51 16 000 Removing and installing / replacing mirror on left or right front door: Notes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Partially lever out cover on door window frame (inside) in front area, refer to 51 32 160 REMOVING AND INSTALLING / REPLACING HOUSING COVER ON INNER LEFT OR RIGHT DOOR WINDOW FRAME

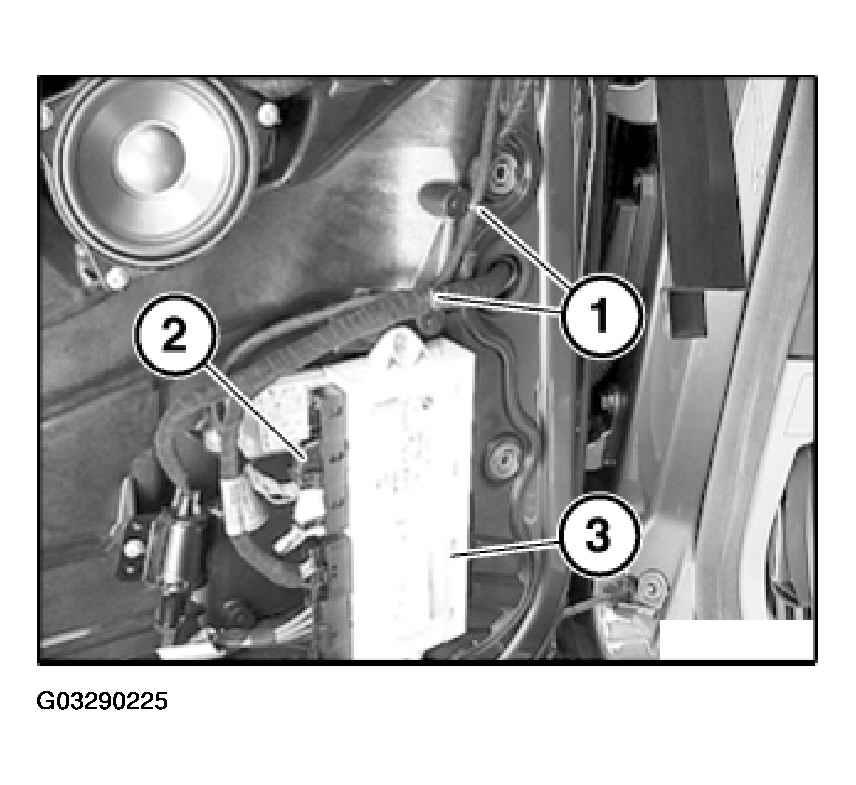

Release cable tie (1).

Fig 1: Disconnecting Plug Connection From Control Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug connection (2) and disconnect from control unit (3).

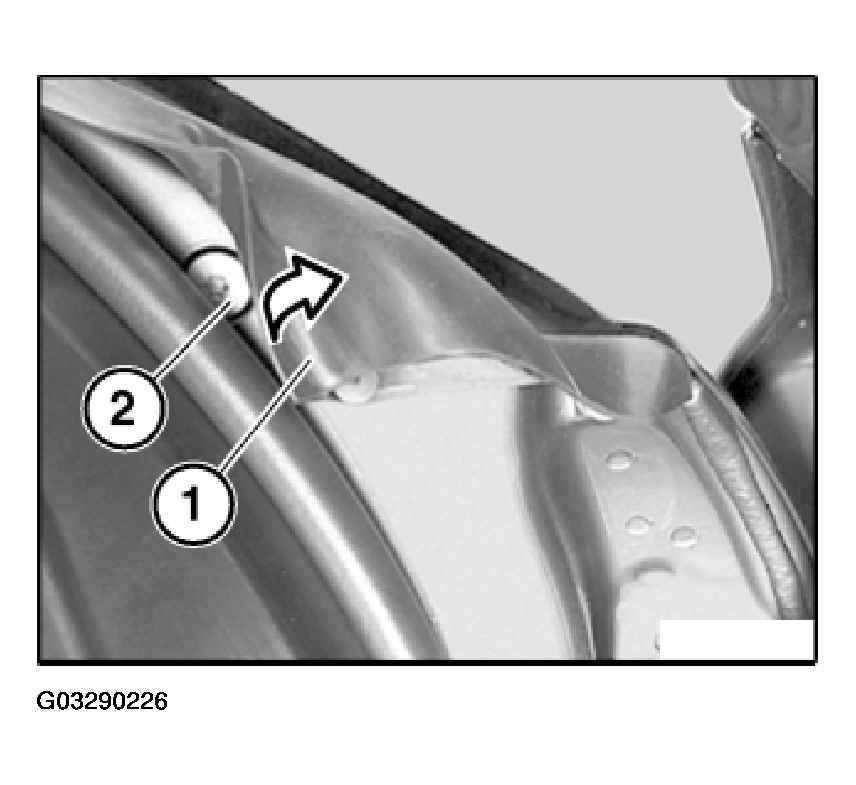

Raise seal (1) slightly and release screw (2).

Fig 2: Raising Seal

Courtesy of BMW OF NORTH AMERICA, INC.

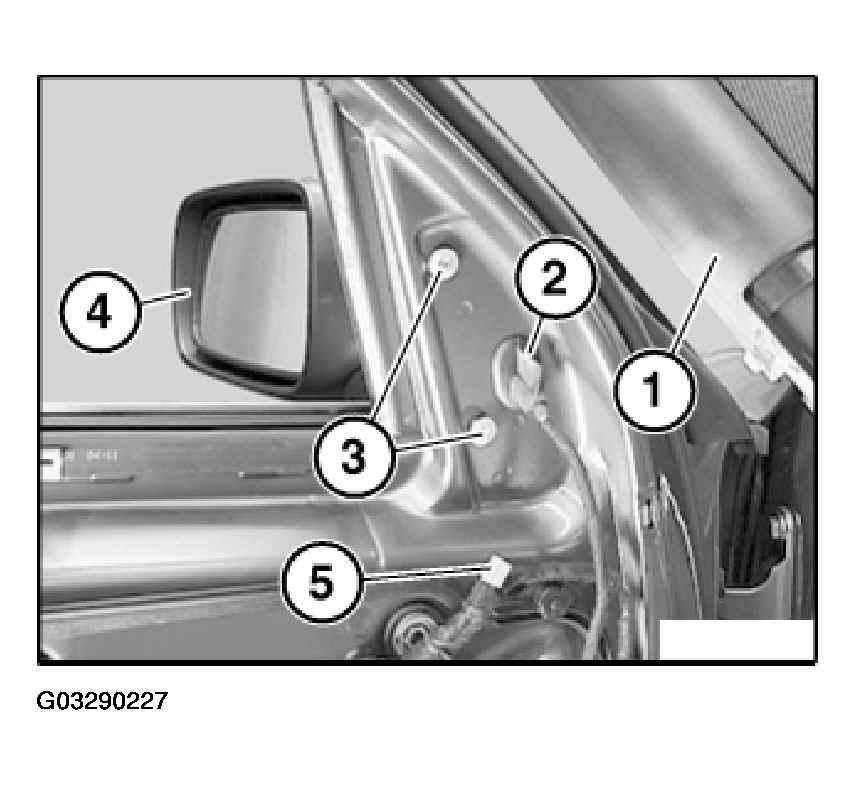

Press rubber grommet (2) outwards.

Release screws (3) and feed out mirror (4) with cable.

Fig 3: Removing Mirror With Cable

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Tightening torque 51 16 1AZ. Refer to BODY EQUIPMENT - TIGHTENING TORQUES .

Connect plug connection (5) with speaker in cover (1).
