51 71 387 Removing and installing/replacing rear water gutter trim (rear lid) on left or right

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Lever out expansion rivet (3).

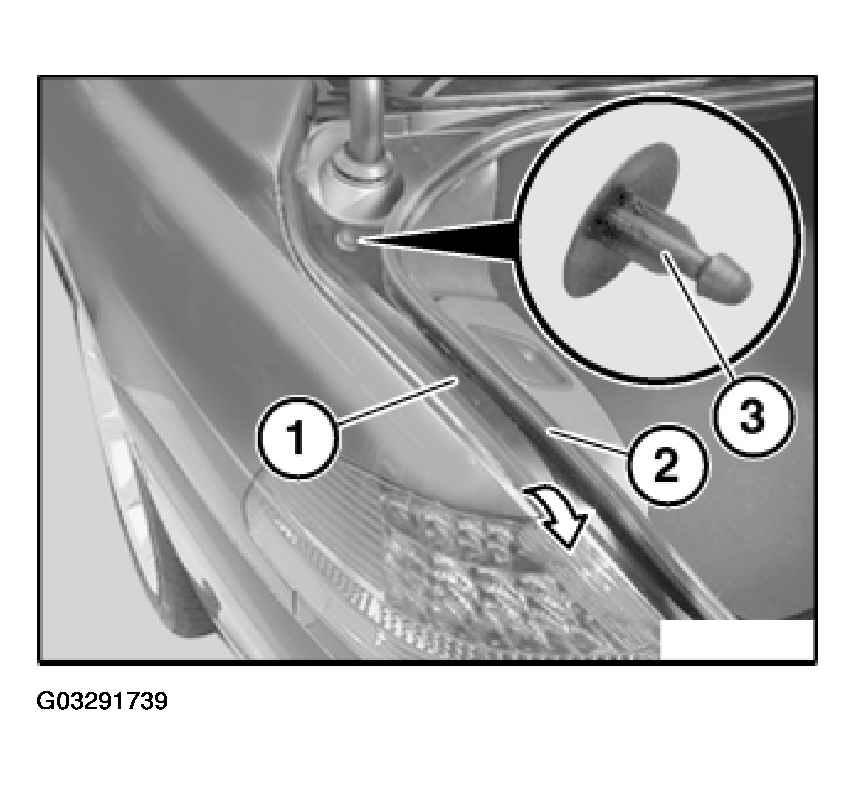

Fig 1: Removing Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Detach rubber seal (2).

Slide trim (1) towards rear and remove.

Installation:

Make sure trim (1) is correctly located in cover (2).

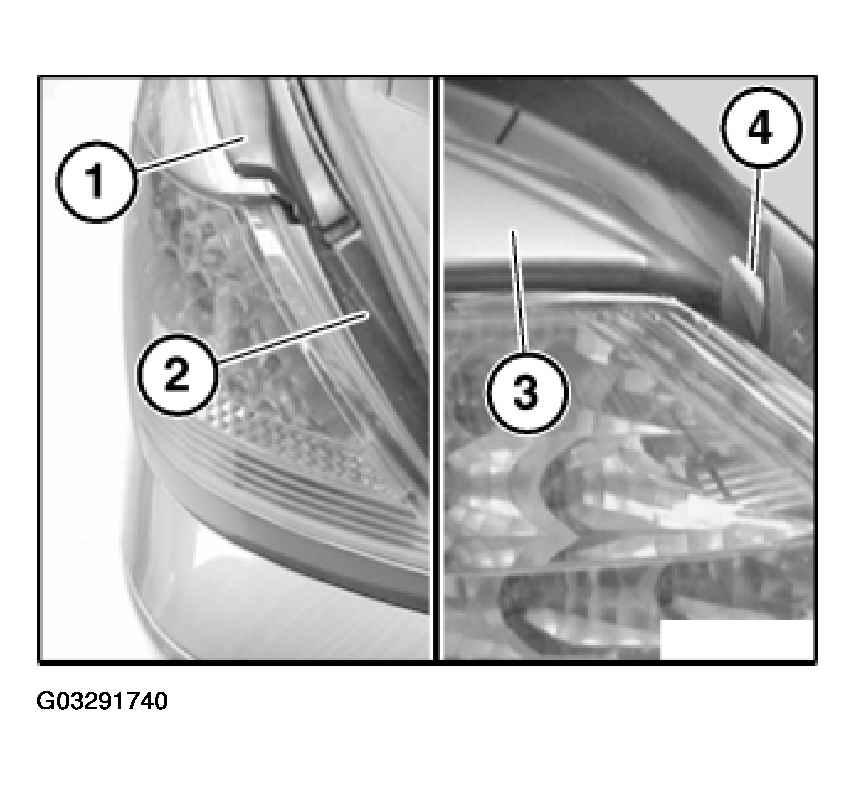

Fig 2: Installing Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Trim (1) must engage catch (4) in side panel at rear (3).

CAUTION: If clip fixture (1) is removed for further work (e.g. painting):
Always replace clip fixture (1) in order to prevent leaks.

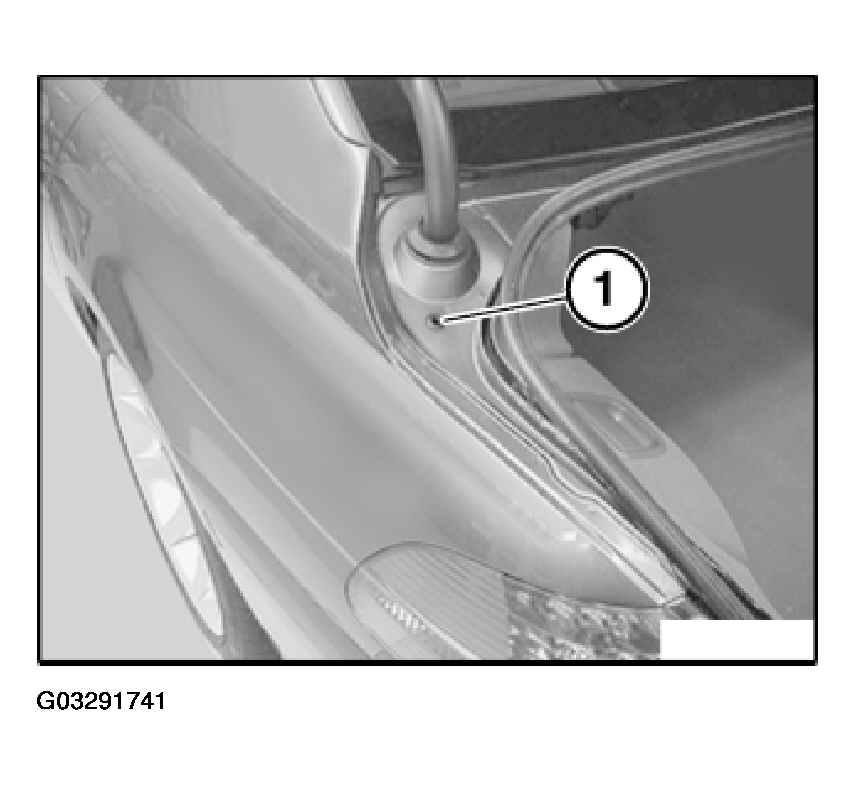

Fig 3: Identifying Clip Fixture

Courtesy of BMW OF NORTH AMERICA, INC.
