Positioning aid "C3" for rear door, left ("D3" right)
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.
Detach prestamped positioning aid from backing.
- Positioning aid "C3" rear door, left
- Positioning aid "D3" rear door, right

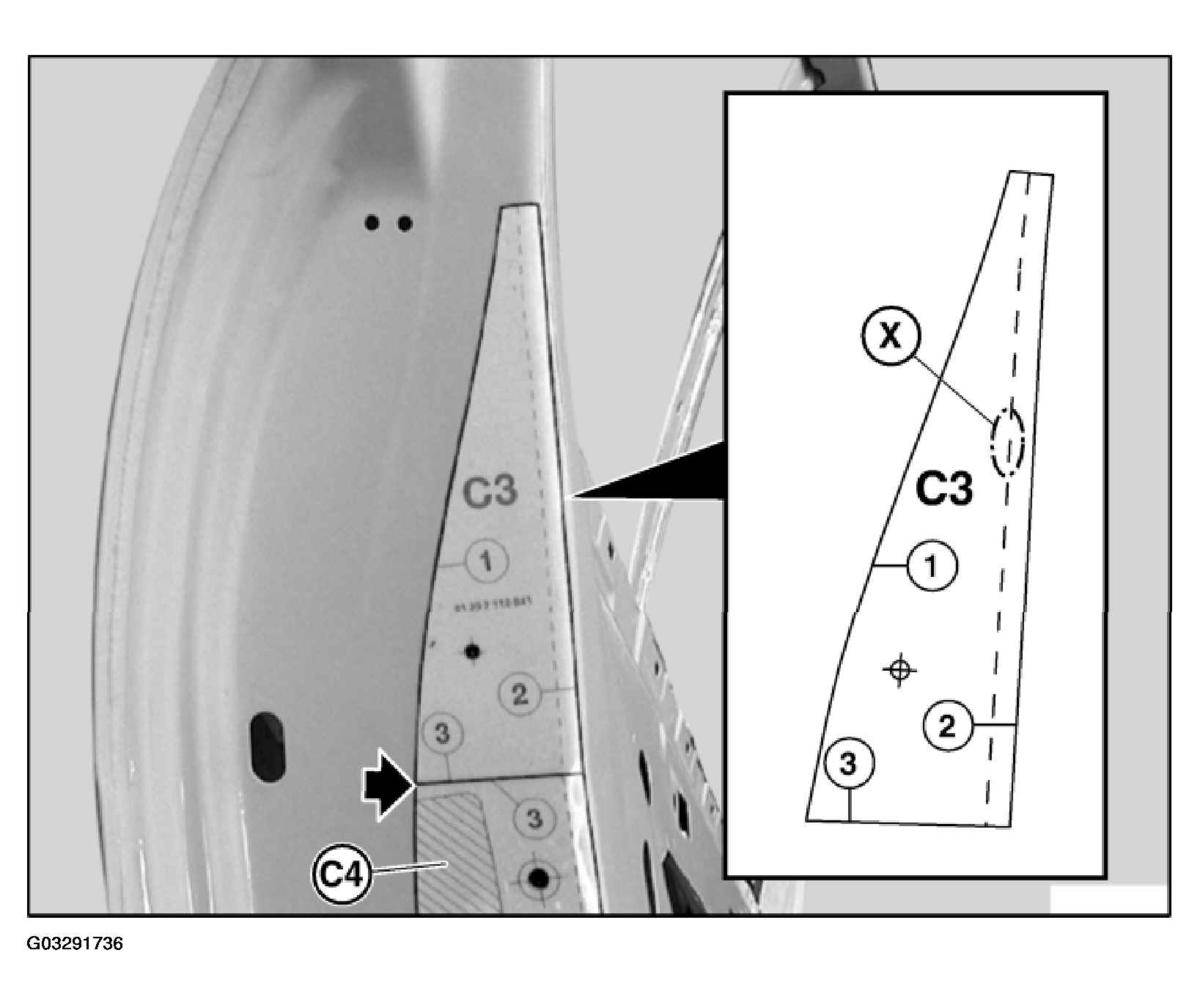

Align positioning aid with printed help markings (X, Y), bore, line (3) of positioning aid (C4) and contact edge (2) to rear door and press. Seal must rest on positioning edge (1) during sticking.
X Start of bend radius
Y Bore for door lock
