51 71 085 Removing and installing center of assembly compartment bulkhead

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove both air ducts for microfilter, refer to 64 31 030 REMOVING AND INSTALLING/REPLACING LEFT OR RIGHT MICROFILTER AIR DUCT (AUTOMATIC A/C BASIC) or 64 31 031 REMOVING AND INSTALLING/REPLACING LEFT OR RIGHT MICROFILTER AIR DUCT (AUTOMATIC A/C HIGH)

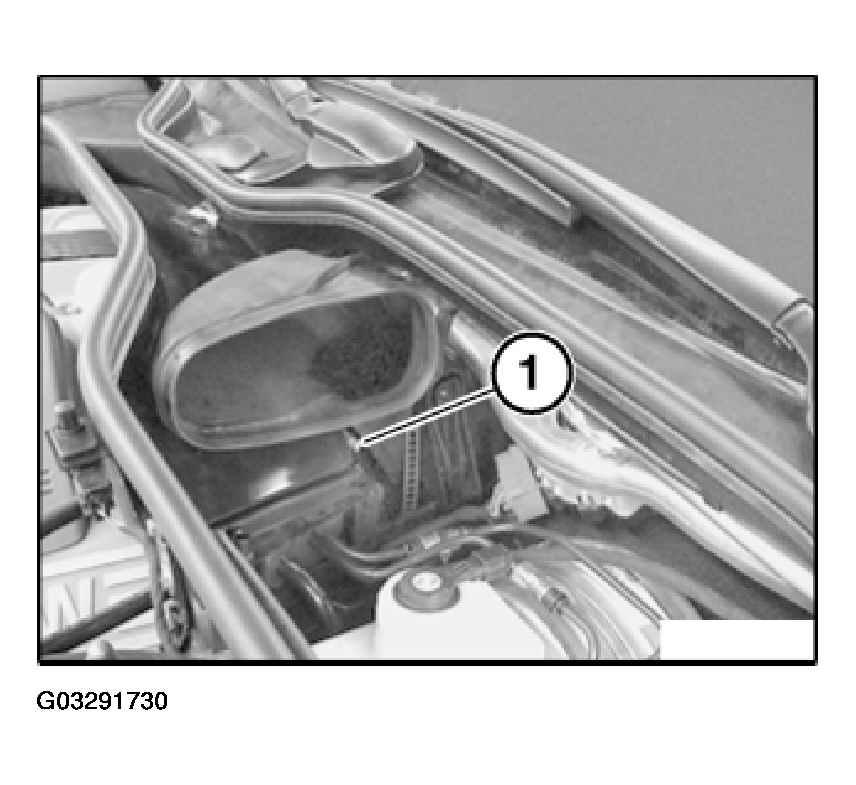

Release screw (1) on left/right and remove both fresh air ducts.

Fig 1: Removing Both Fresh Air Ducts

Courtesy of BMW OF NORTH AMERICA, INC.

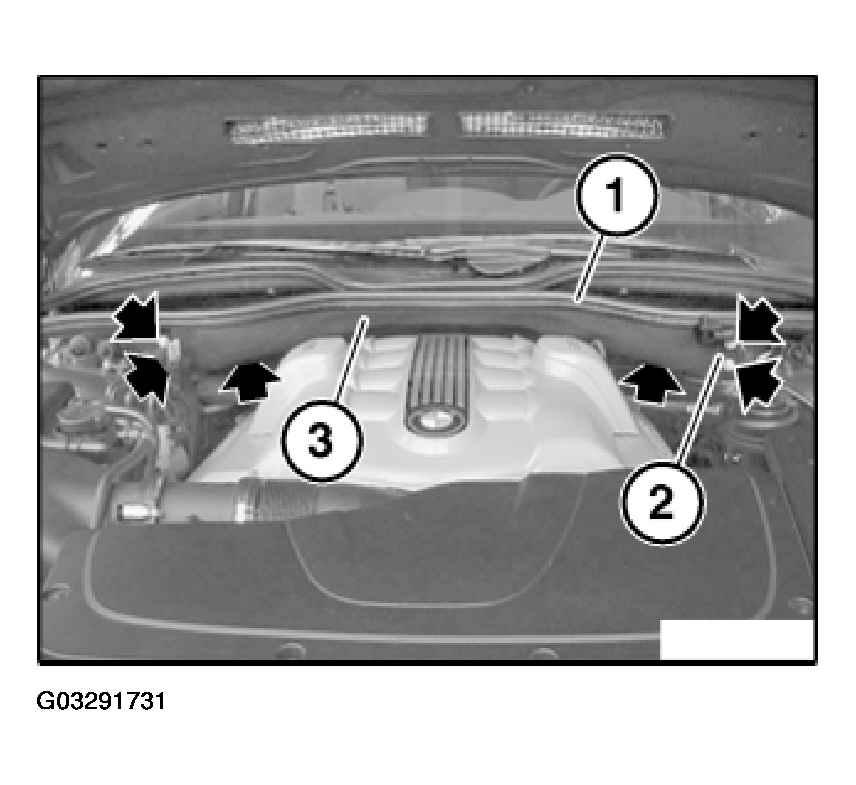

Pull off sealing strip (1).

Fig 2: Pulling Off Sealing Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws.

Place holder (2) with switch for engine hood contact to one side.

Remove bulkhead (3).

Installation:

Do not crush cable.

Check height adjustment of engine hood contact and correct if necessary.
