51 71 040 Removing and installing/replacing front left or right wheel arch cover: Notes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

If necessary, remove left/right front wheel, refer to 36 10 300 REMOVING OR INSTALLING FRONT OR REAR WHEEL

Release screws (1) and (3).

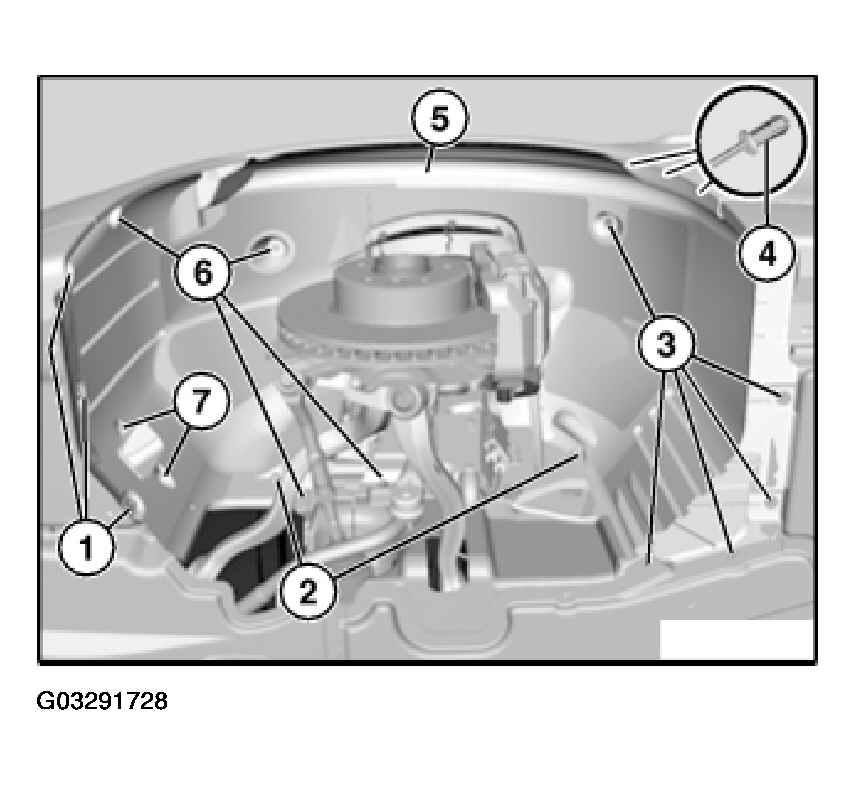

Fig 1: Removing Wheel Arch Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew nuts (2).

Release screws (6).

If necessary, release screws (7).

If necessary, release expander rivets (4).

Carefully feed out front wheel arch cover (5) towards top.

Installation:

Make sure front wheel arch trim is correctly seated.
