Positioning aid "A4" for front door, left ("B4" right)
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.
Detach prestamped positioning aid from backing.
- Positioning aid "A4" front door, left (door lock, bottom)
- Positioning aid "B4" front door, right (door lock, bottom)

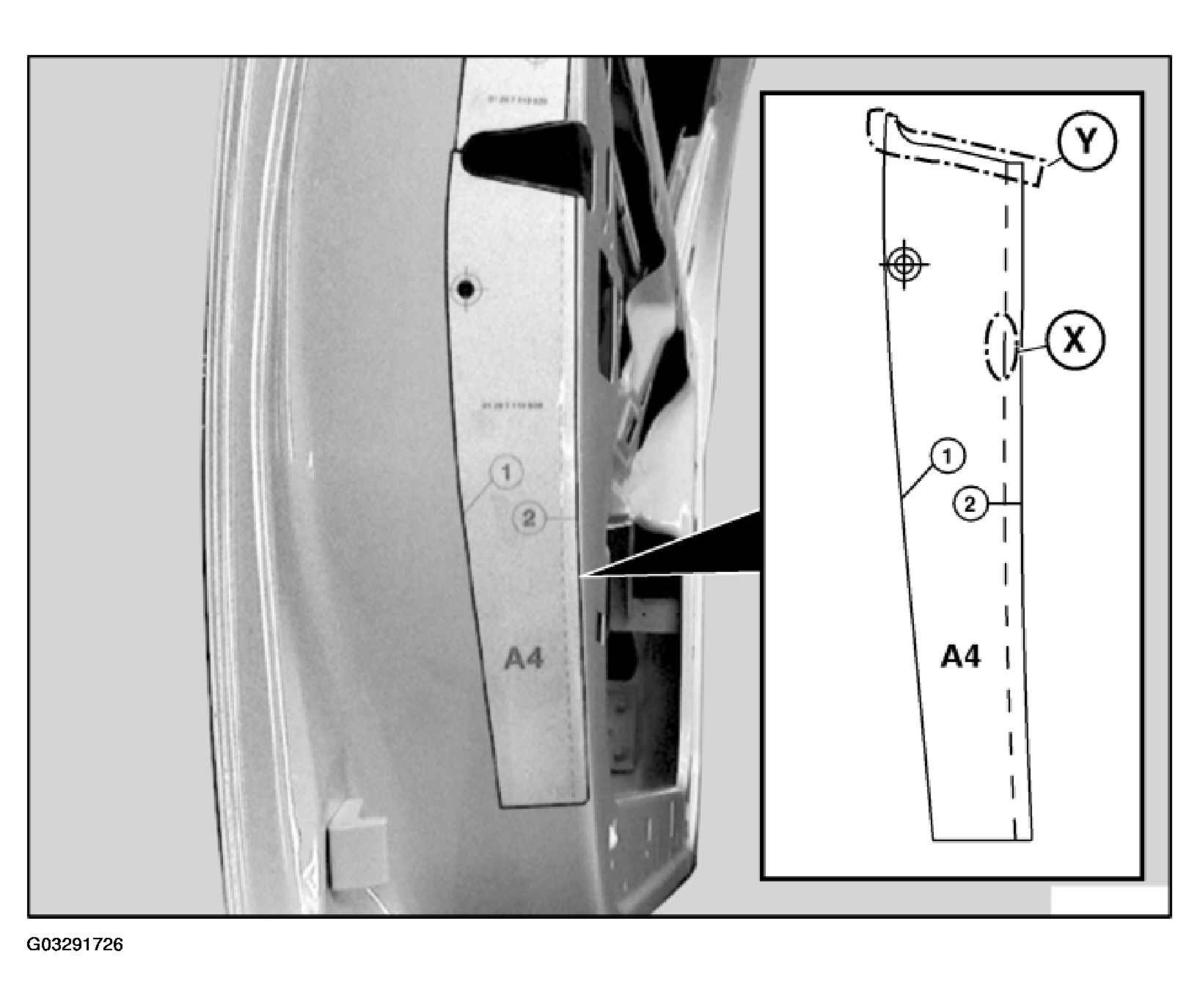

Align positioning aid with printed help markings (X, Y), bores, screw heads and contact edge (2) to front door and press. Seal must rest on positioning edge (1) during sticking.
X Start of bend radius
Y Bore for door lock
CAUTION:
- Do not grip bonding surface.
- It is not the length of pressing in time but rather the level of pressing (approx. 10... 15 N/cm2 ) which is decisive here.
- Separation of seal after pressing destroys the adhesive layer.
NOTE:
After being pressed on gently, seal can be pulled off again up to 3 times. Do not dirty adhesive area.

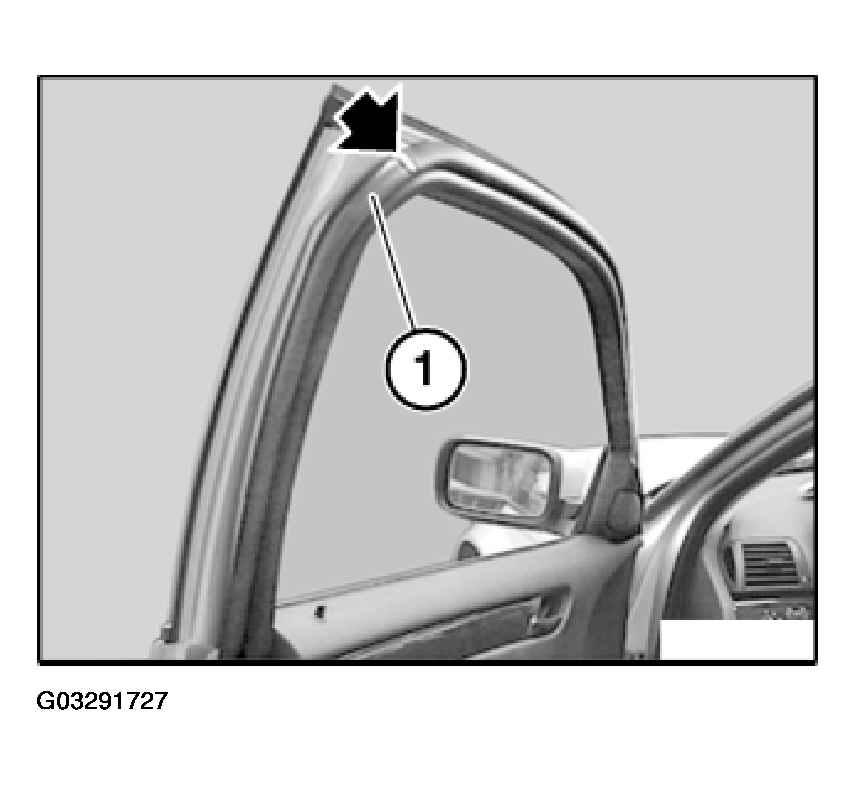

Suspend seal (1) with open lip pointing inwards over door. Pull protection of positioning aid (liner) off seal in sections.
Stick on seal (1) as follows:
- Position seal with color coding on door window frame at rear top.
- Gently press seal without stretching up to start of positioning aids.
- Check positioning of seal, correct if necessary (sag max. 3o mm).
- Firmly press down seal vertically to adhesive area up to above-mentioned area.
- Gently press seal without stretching up to entrance area.
- Check positioning of seal, correct if necessary and firmly press.
- Pull remaining protective film (liner) off seal.
- Press remaining seal without stretching.
- Check positioning of seal, correct if necessary and firmly press.
Remove positioning aids and assemble front door.
