Positioning aid "A3" for front door, left ("B3" right)
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.
Detach prestamped positioning aid from backing.
- Positioning aid "A3" front door, left (door lock, top)
- Positioning aid "B3" front door, right (door lock, top)

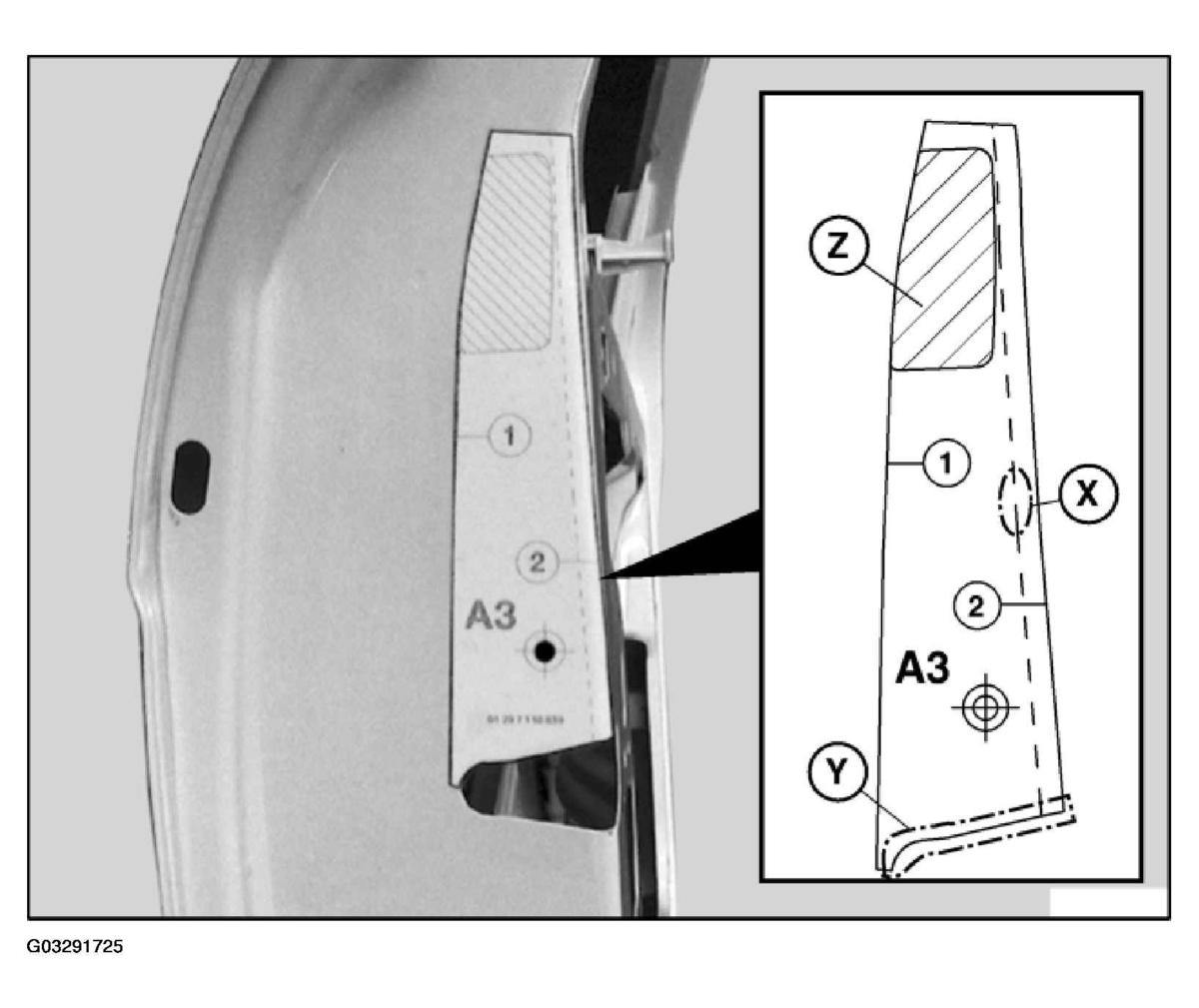

Align positioning aid with printed help markings (X, Y), bores, screw heads and contact edge (2) to front door and press. Seal must rest on positioning edge (1) during sticking.
X Start of bend radius
Y Bore for door lock
Z Cut out if reflector is fitted
