51 23 215 Removing and installing/replacing cable for hood/bonnet locks (to locks)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Disconnect Bowden cable at connection point, refer to 51 23 211 REMOVING AND INSTALLING/REPLACING CABLE FOR FRONT ENGINE HOOD LOCKS (TO PASSENGER COMPARTMENT)
Release Bowden cables on hood/bonnet lock on left/right, refer to 51 23 100 REMOVING AND INSTALLING/REPLACING RIGHT ENGINE HOOD LOCK or 51 23 110 REMOVING AND INSTALLING/REPLACING LEFT HOOD/BONNET LOCK

N62 only:

Remove design cover

Feed connecting cable (1) out of cross-member (2) inwards.

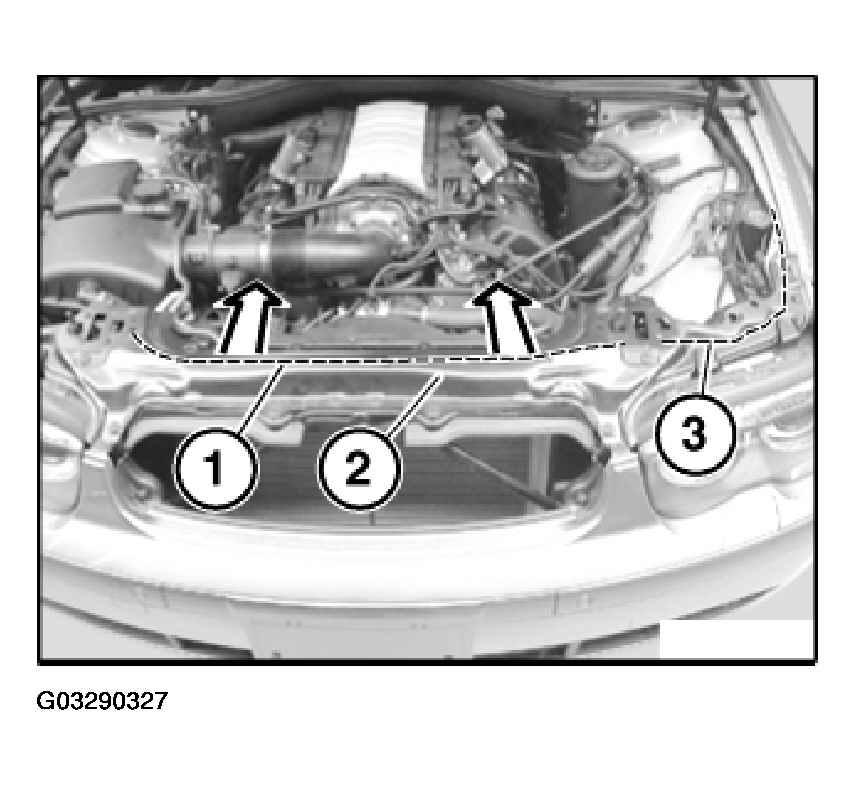

Fig 1: Removing Cable

Courtesy of BMW OF NORTH AMERICA, INC.

Feed cable (3) out of cross-member (2) and side panel.
