51 45 115 Removing and installing speaker frame on panel for instrument panel at top

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 341

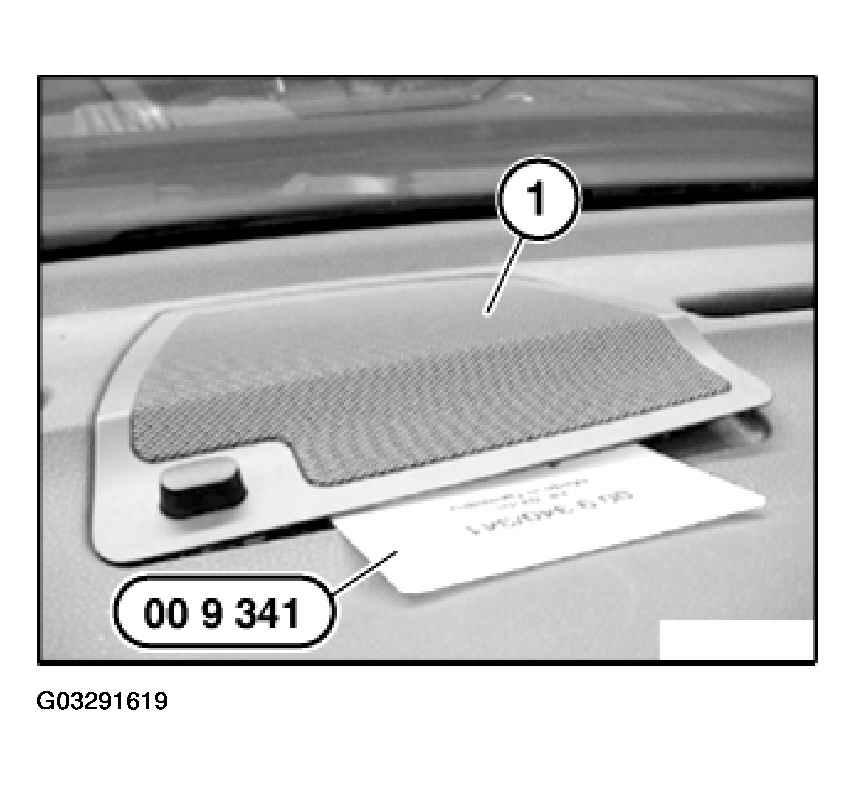

Unclip speaker frame (1) with special tool 00 9 341.

Fig 1: Unclipping Speaker Frame With Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

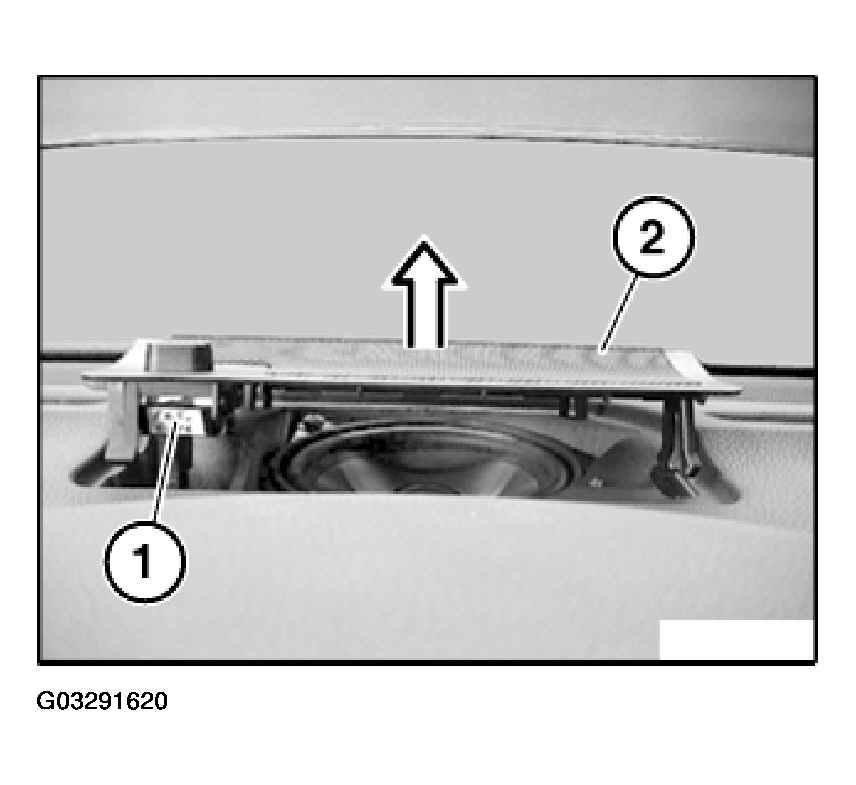

Lever out speaker frame (2) in direction of arrow.

Fig 2: Removing Speaker Frame

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection from solar sensor (1) and remove speaker frame (2).

Installation:

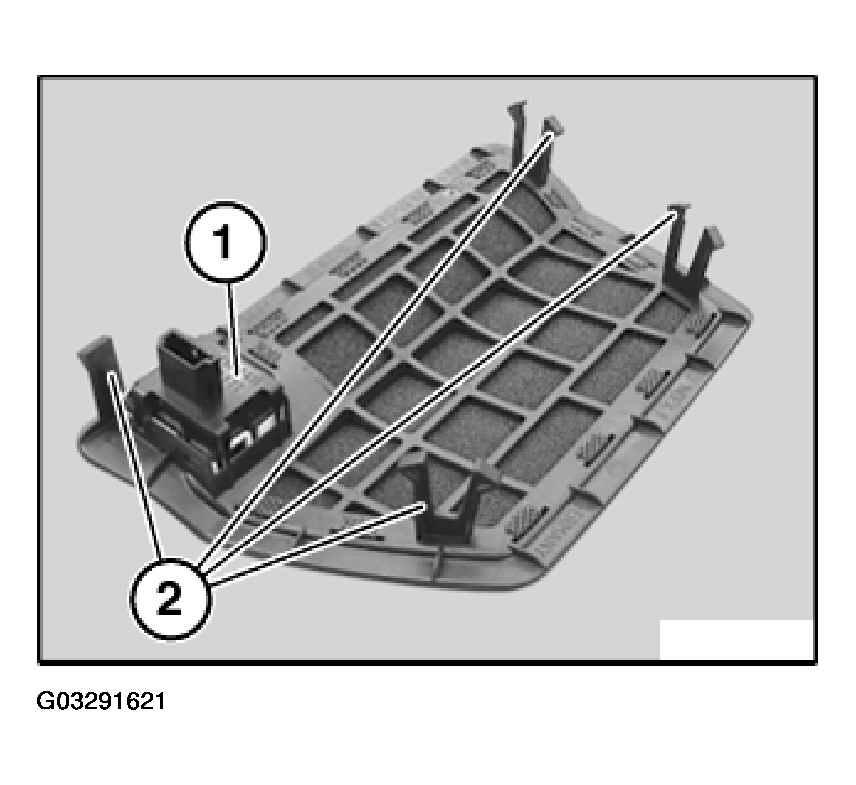

Locks (2) must not be damaged.

Fig 3: Identifying Locks

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement only:

Remove solar sensor (1). Refer to 64 11 992 REMOVING AND INSTALLING/REPLACING SOLAR SENSOR .
