51 21 302 Removing and installing/replacing chrome strip for window cavity cover strip (on outside of front door)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 311

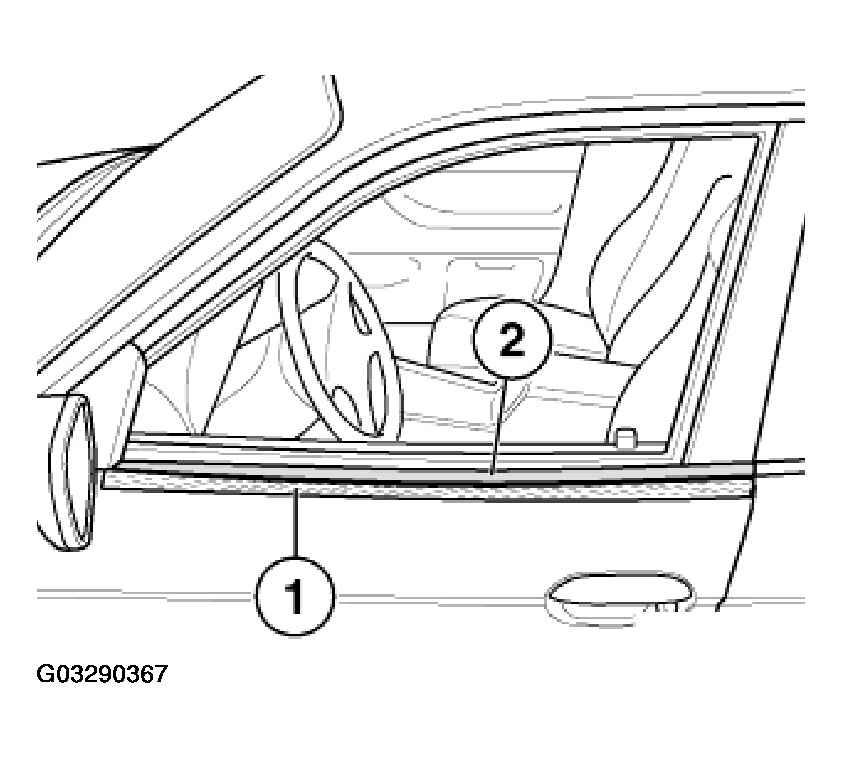

Attach adhesive tape (1) below window cavity cover strip (2) (risk of damage).

Fig 1: Attaching Adhesive Tape

G03290367

Courtesy of BMW OF NORTH AMERICA, INC.

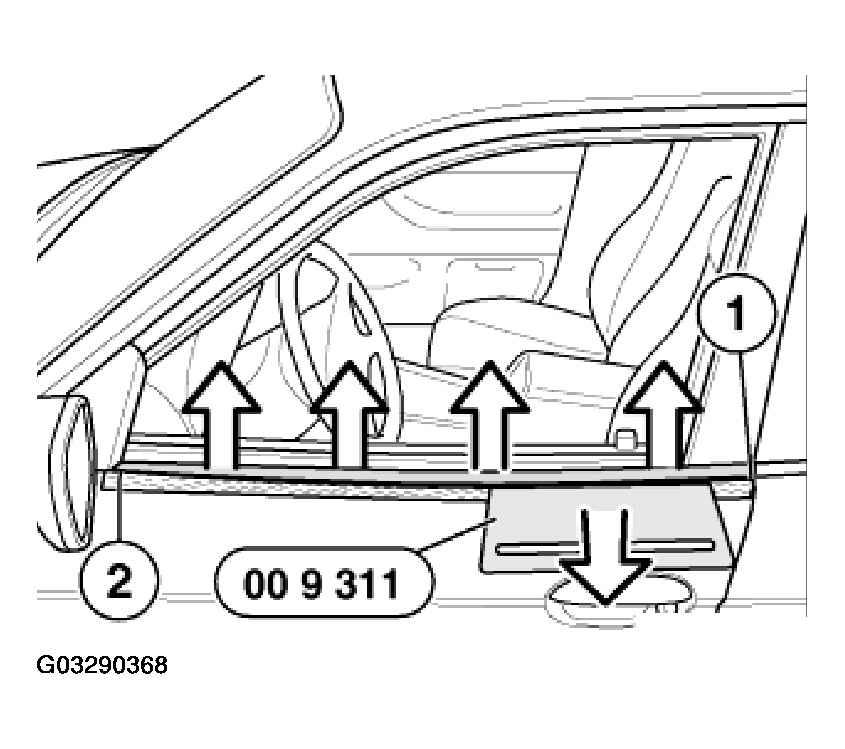

Using special tool 00 9 311 beginning at rear (1) proceeding to front (2), lever out window cavity cover strip.

Fig 2: Removing Window Cavity Cover Strip

G03290368

Courtesy of BMW OF NORTH AMERICA, INC.

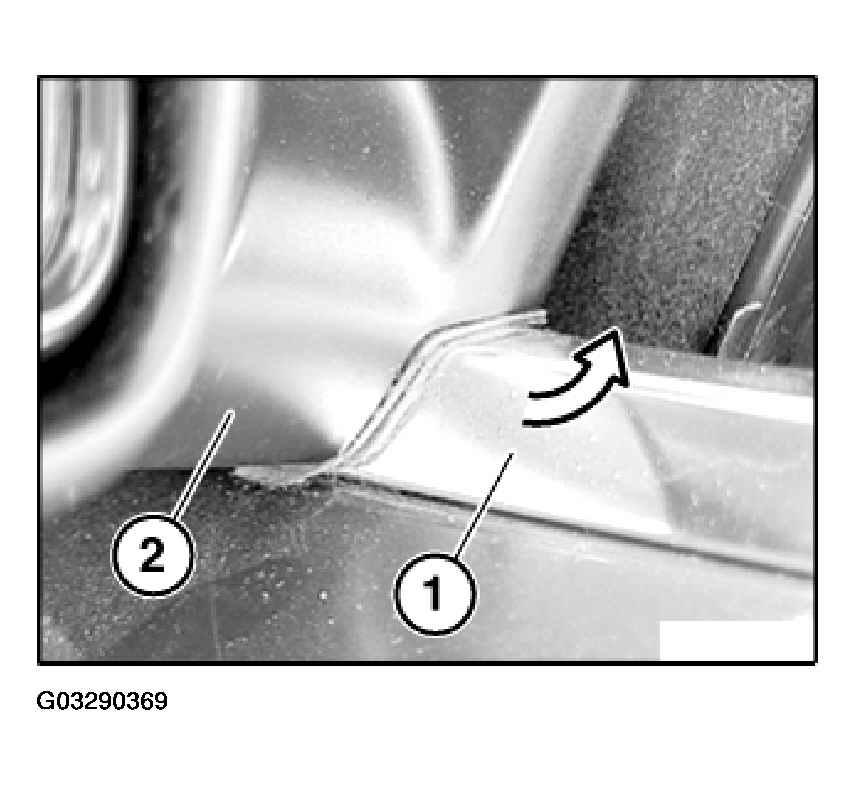

Pull window cavity cover strip (1) out of mirror (2) in direction of arrow and remove.

Fig 3: Pulling Out Window Cavity Cover Strip

G03290369

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Moisten window cavity cover strip (1) with water.

Window cavity cover strip (1) must be flush at rear to door edge.

Installation:

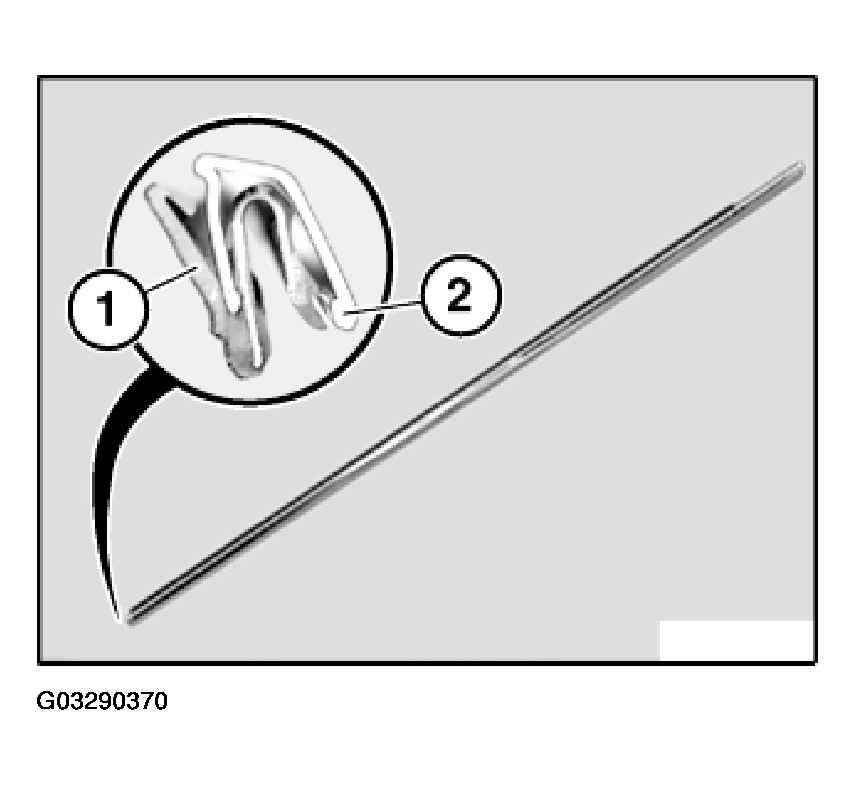

Seal (1) must be correctly fitted in chrome strip (2).

Fig 4: Identifying Seal

G03290370

Courtesy of BMW OF NORTH AMERICA, INC.

Initialize power window. Refer to 67 62... NOTES ON INITIALIZING POWER WINDOW .
