51 21 125 Removing and installing/replacing carrier for left or right outside door handle with lock cylinder

Necessary preliminary tasks:

• Remove front outside handle, refer to 51 21 170 REMOVING AND INSTALLING OR REPLACING OUTSIDE HANDLE FROM LEFT OR RIGHT FRONT DOOR

Driver's side only:

• Remove door lock on front door, refer to 51 21 090 REMOVING AND INSTALLING/REPLACING DOOR LOCK IN LEFT OR RIGHT FRONT DOOR

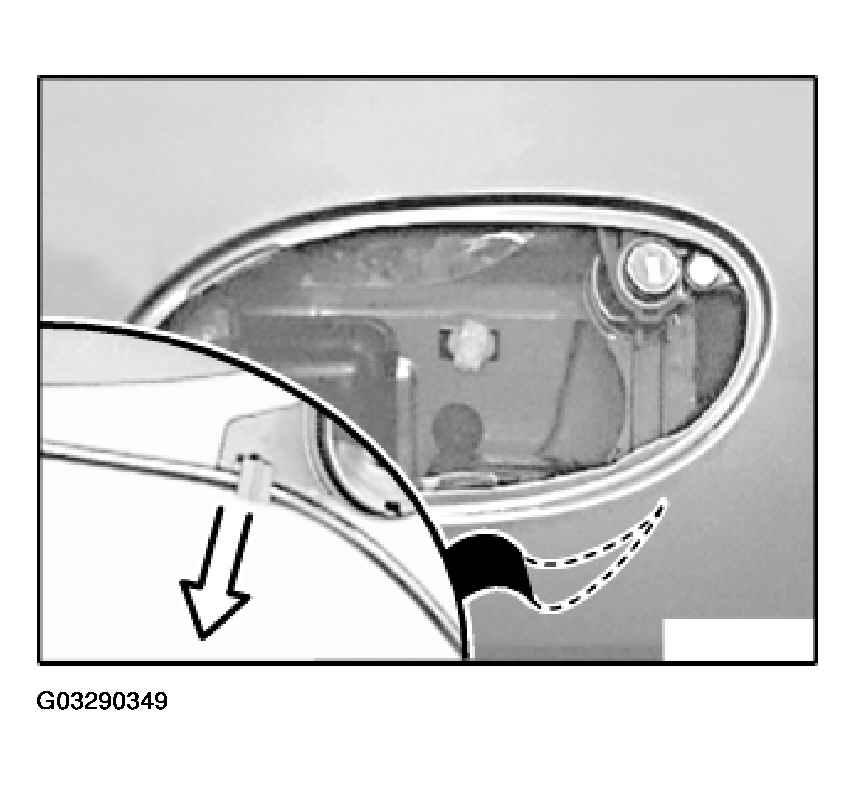

Feed out Bowden cable towards bottom.

Fig 1: Feeding Out Bowden Cable

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

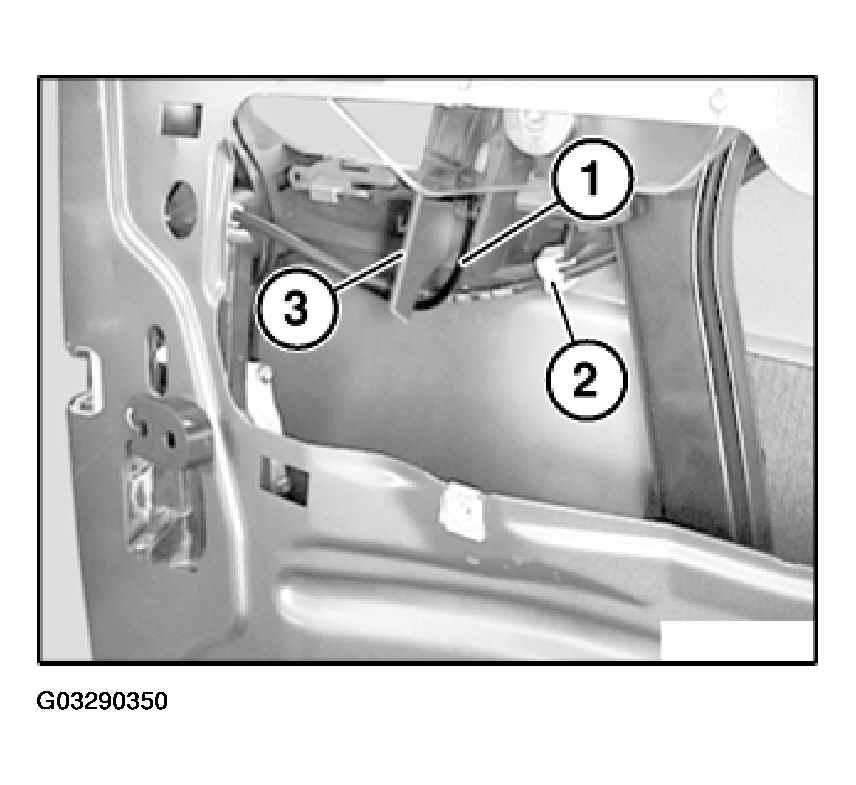

Bowden cable (1) and fibre optics cable (2) must be routed below bridge (3).

Fig 2: Routing Bowden Cable & Fibre Optics Cable

Courtesy of BMW OF NORTH AMERICA, INC.

No fibre optics cable is fitted from build date 09/2004.

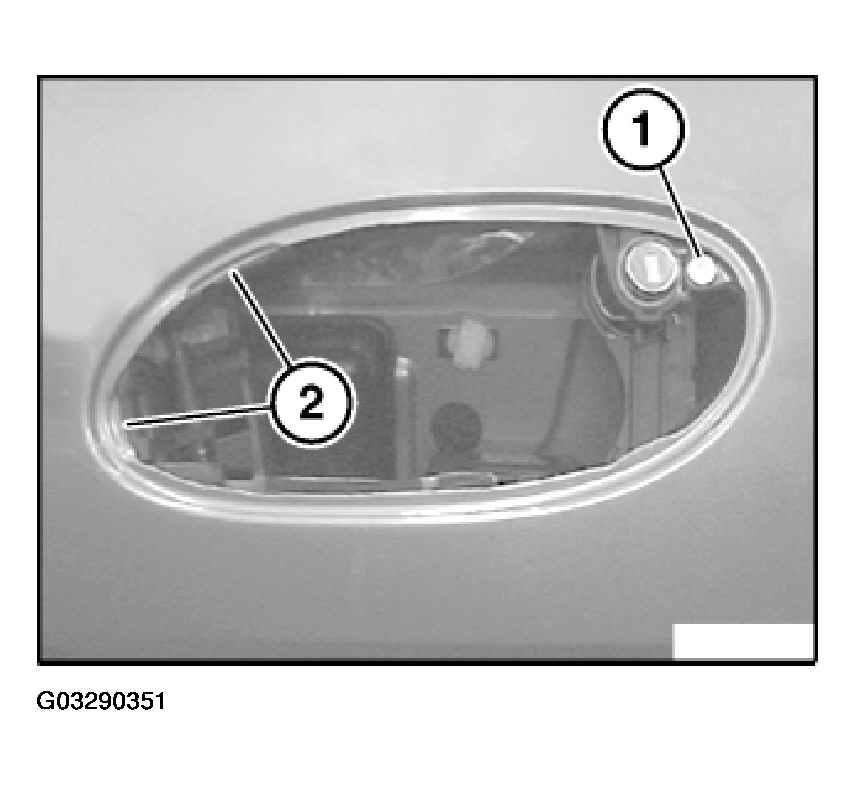

Release screw (1).

Fig 3: Removing Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

Feed carrier out of guide (2).

Removing carrier:

• Turn front section of carrier downwards and lower
• Slide front section forwards slightly and turn upwards
• Lift out carrier

Installation:

Make sure guides are correctly fed in.

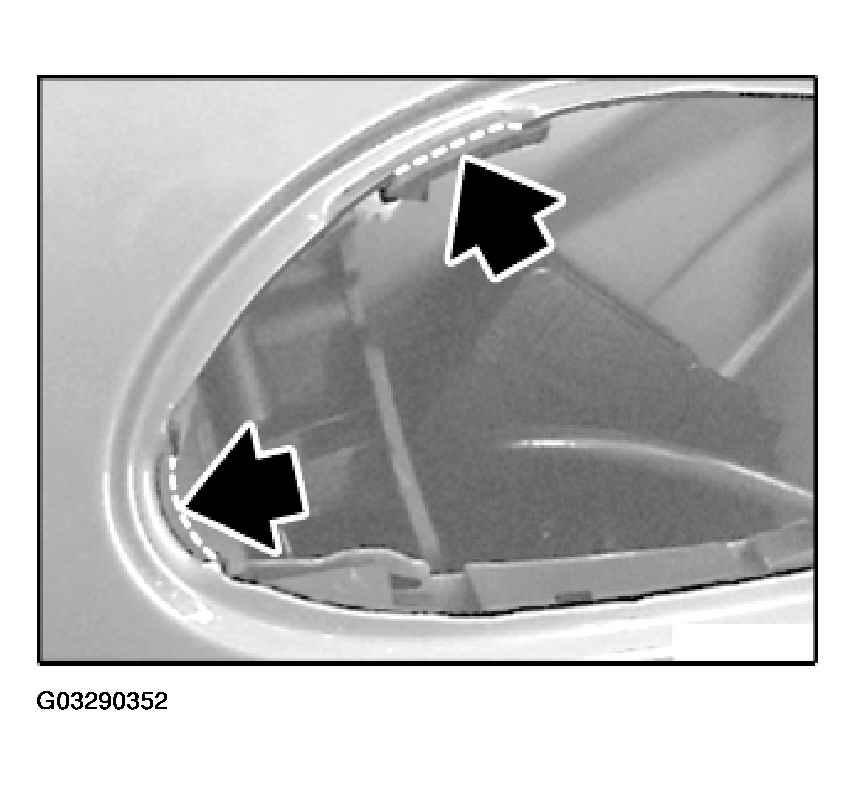

Fig 4: Identifying Guides

Courtesy of BMW OF NORTH AMERICA, INC.

Note on installation (driver's side only):

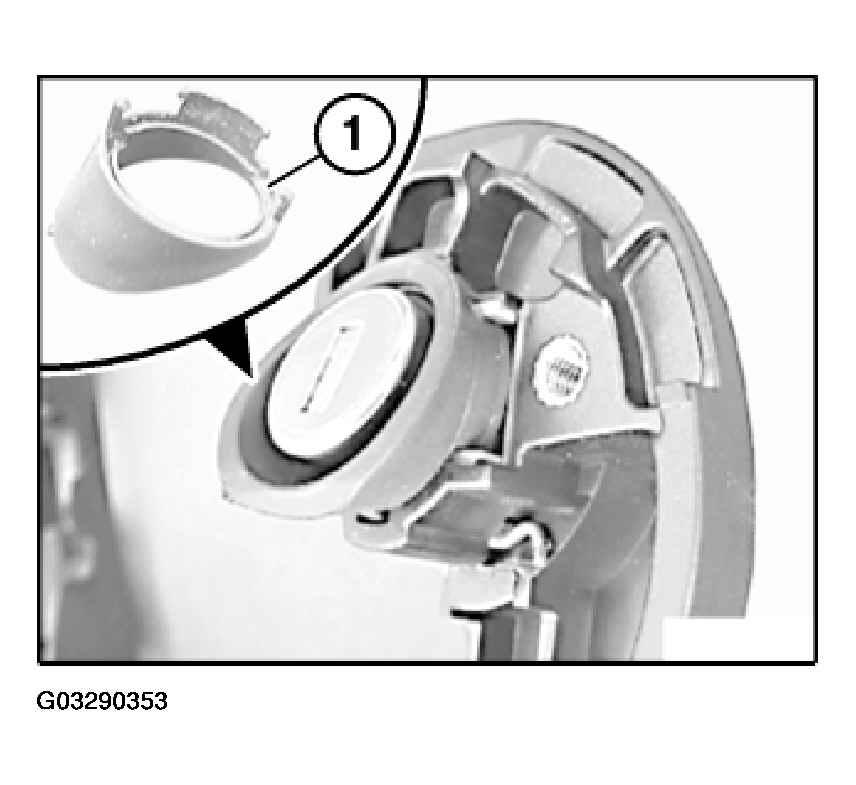

Make sure sealing ring (1) is correctly clipped into place.

Fig 5: Identifying Sealing Ring

Courtesy of BMW OF NORTH AMERICA, INC.

Protect door outer skin (e.g. cleaning cloth).

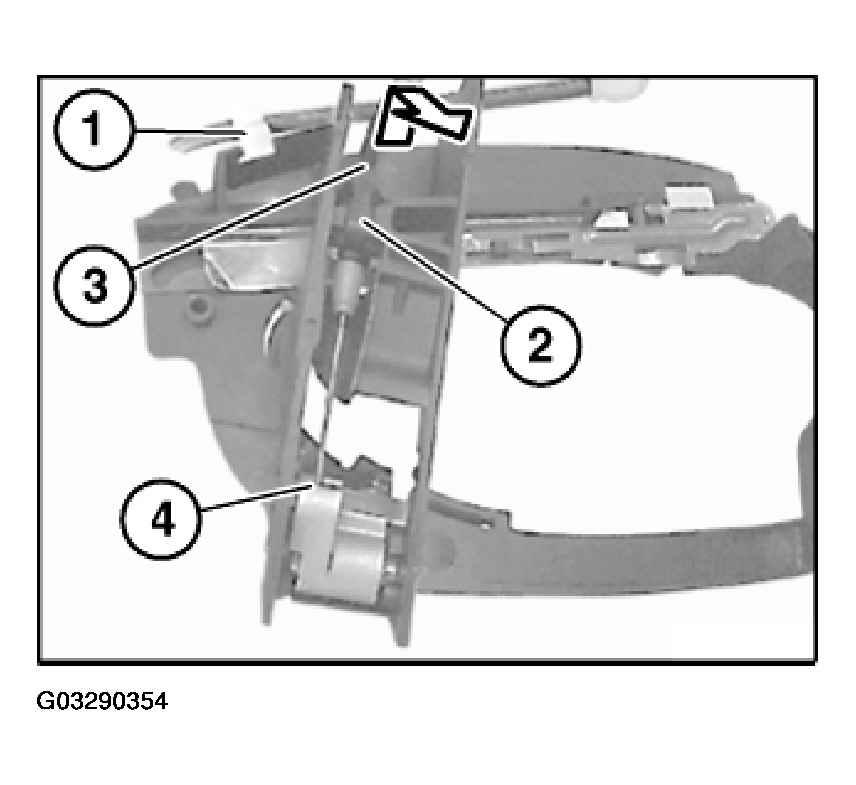

Feed fiber optics cable out of clip (1).

Fig 6: Removing Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, withdraw Bowden cable sleeve (2) with clip (3) from retaining fixture.

Feed Bowden cable out of actuating lever (4).

Remove carrier.

Installation:

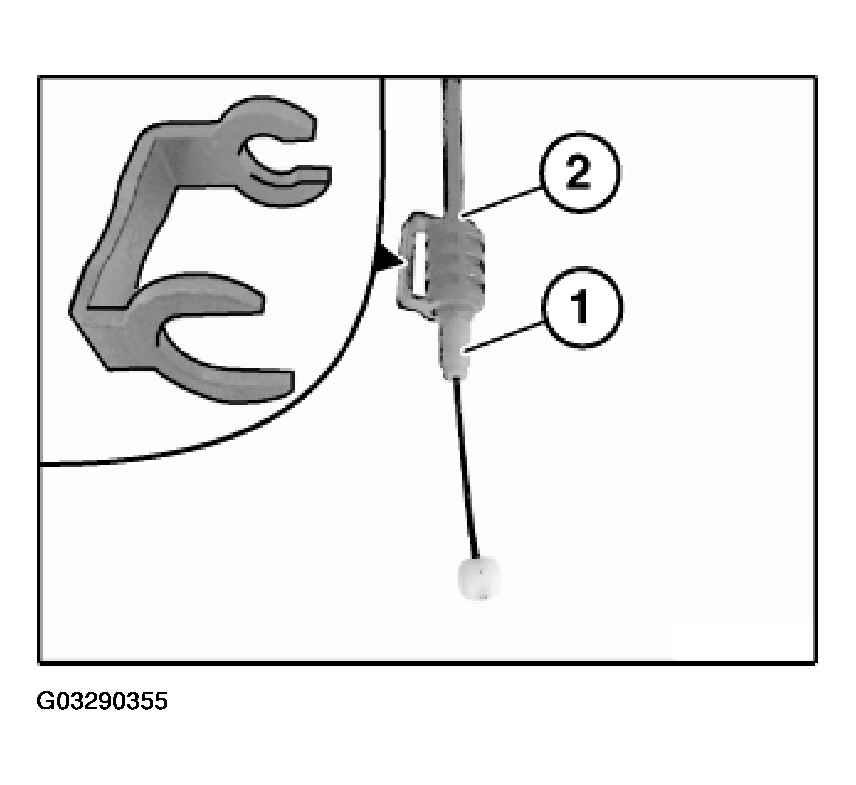

Clip is on fitted on Bowden cables with blue sealing caps (1).

Fig 7: Identifying Clip

Courtesy of BMW OF NORTH AMERICA, INC.

Position of clip on Bowden cable:

2 = small hole side
