51 21 090 Removing and installing/replacing door lock in left or right front door: Replacement:

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Feed out Bowden cable:

  1. Pull out Bowden cable sleeve.
  2. Turn Bowden cable and pull out.

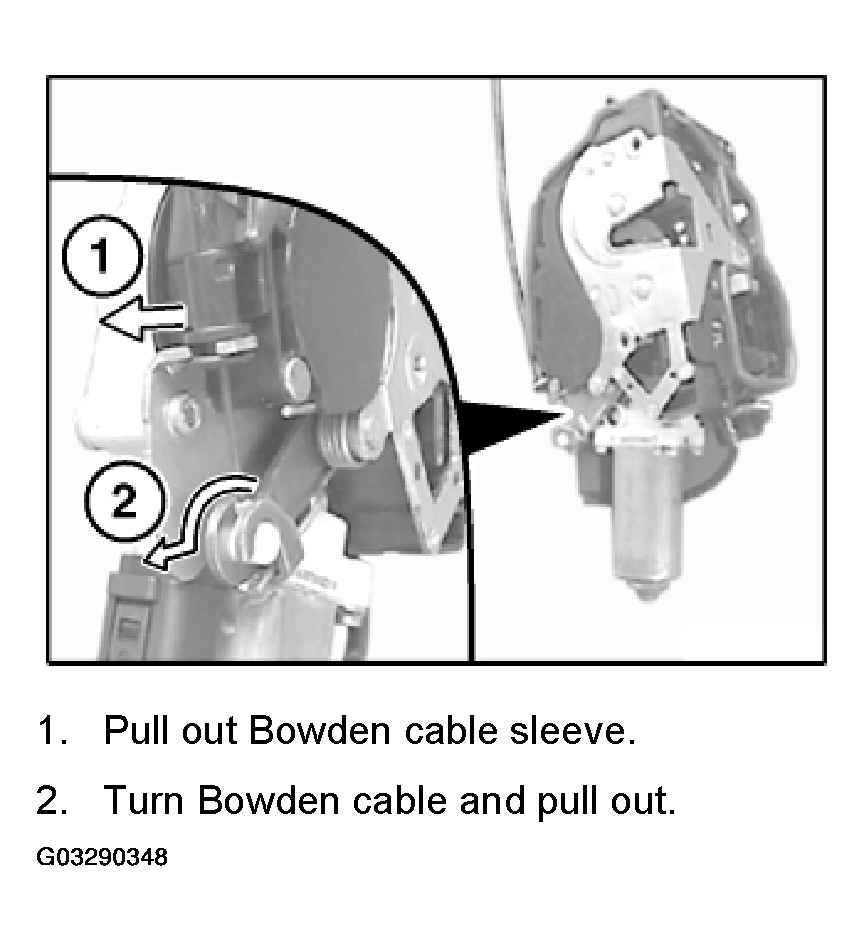

Fig 1: Replacing Bowden Cable
G03290348Courtesy of BMW OF NORTH AMERICA, INC.
