51 21 090 Removing and installing/replacing door lock in left or right front door: Notes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

51 2 190

Necessary preliminary tasks:

Close window in front door
Remove function carrier, refer to 51 21 035 REMOVING AND INSTALLING/REPLACING FUNCTION CARRIER ON LEFT OR RIGHT FRONT DOOR

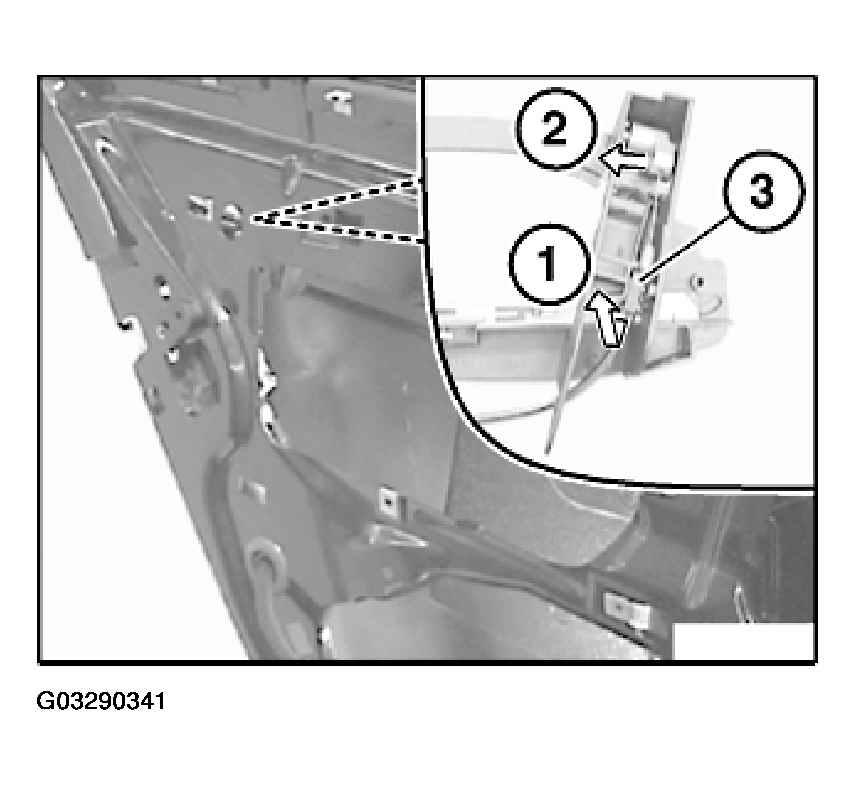

Feed out Bowden cable on carrier.

Fig 1: Feeding Out Bowden Cable On Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Do not damage door lock seal when removing.

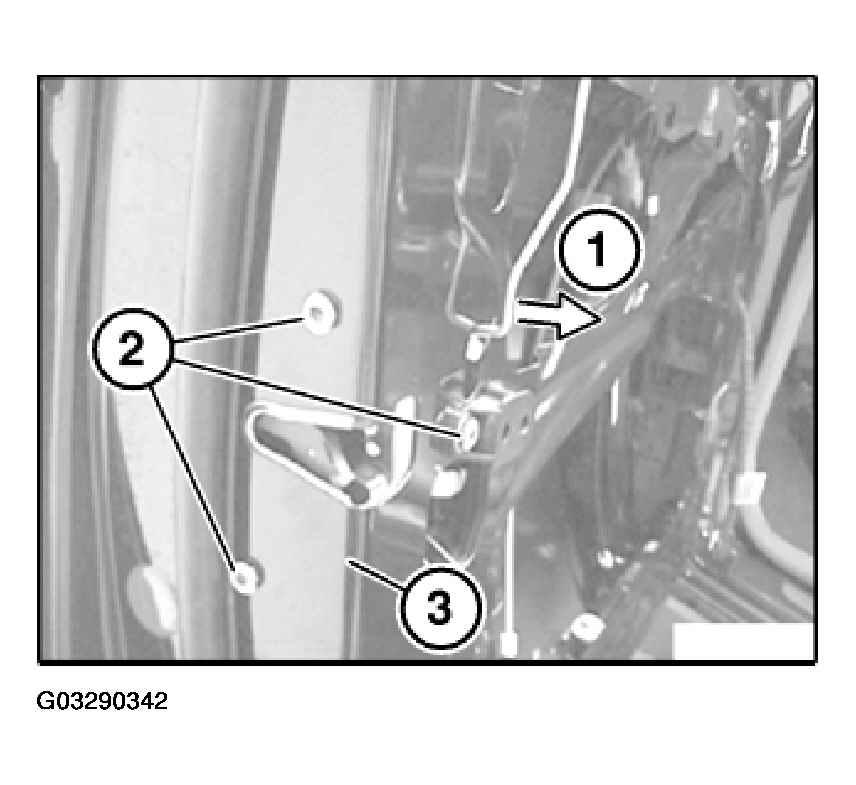

Unclip lock knob control rod (1).

Fig 2: Removing Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (2).

Remove door lock from inside with drive facing forwards (twist out).

IMPORTANT: To avoid leakage and electrical malfunction, pull door lock with special tool 51 2 190 into corner (3), refer to next work step.
Door lock must be at zero current with Soft Close Automatic (risk of damage).

Installation:

Install door lock and insert screws (1), do not tighten down.

Fig 3: Installing Door Lock
Courtesy of BMW OF NORTH AMERICA, INC.

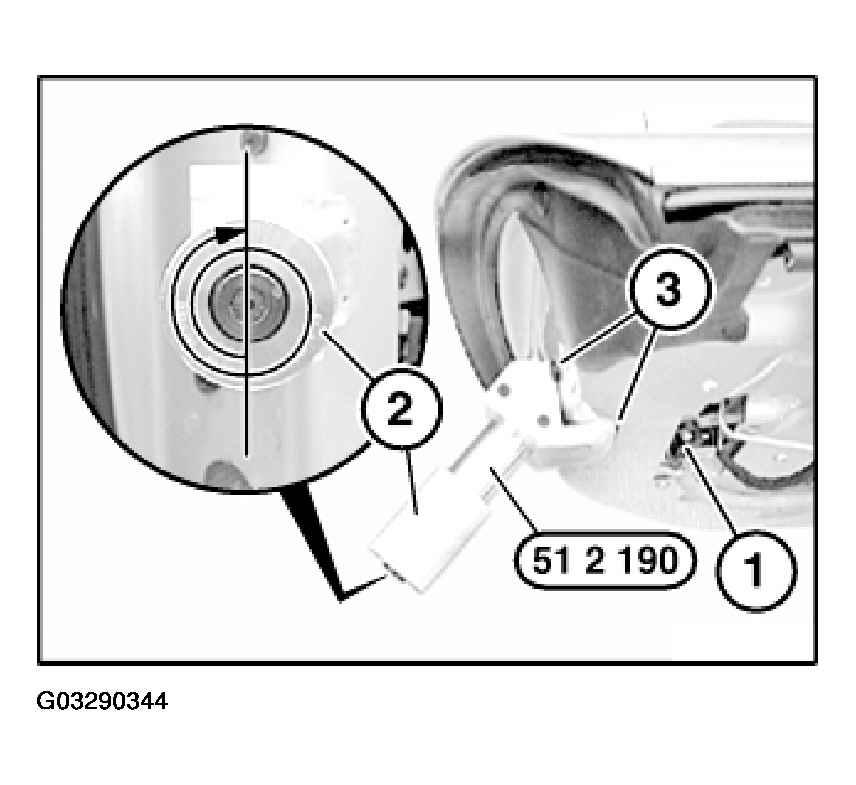

Slide special tool 51 2 190 into opened rotary latch until latch engages in first stage.

Installation:

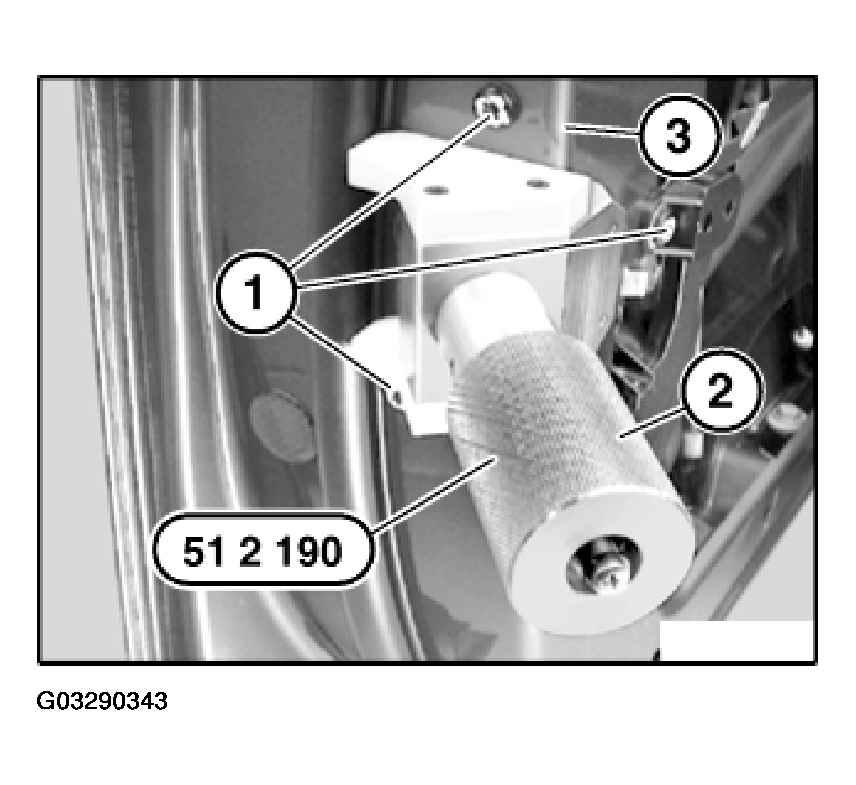

Pretension door lock (1) with knurled screw (2) until special tool 51 2 190 just contacts corner points (3).

Fig 4: Pretensioning Down Door Lock

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: To tension door lock (1), it is only permitted to turn knurled screw (2) by a further 1 to 1.5 turns (max.) (risk of damage).
Door lock seal must be uniformly positioned (water ingress).

Tighten down door lock screws (1), tightening torque 51 21 1AZ. Refer to BODY EQUIPMENT - TIGHTENING TORQUES .

Note on installation (driver's side only):

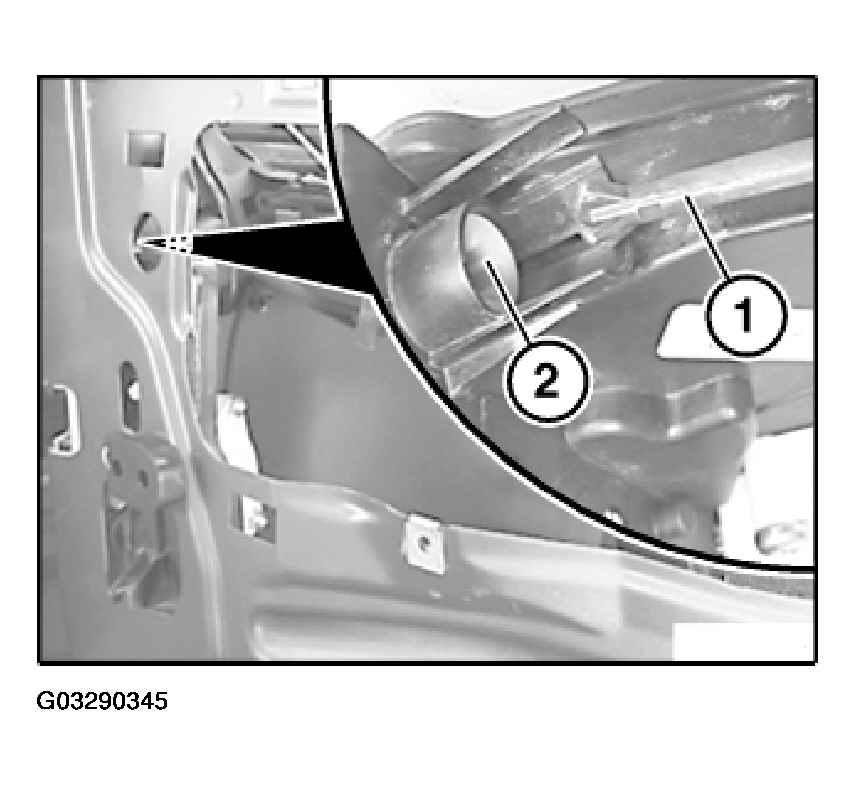

Feed paddle (1) into bushing (2) from below.

Fig 5: Feeding Paddle Into Bushing

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

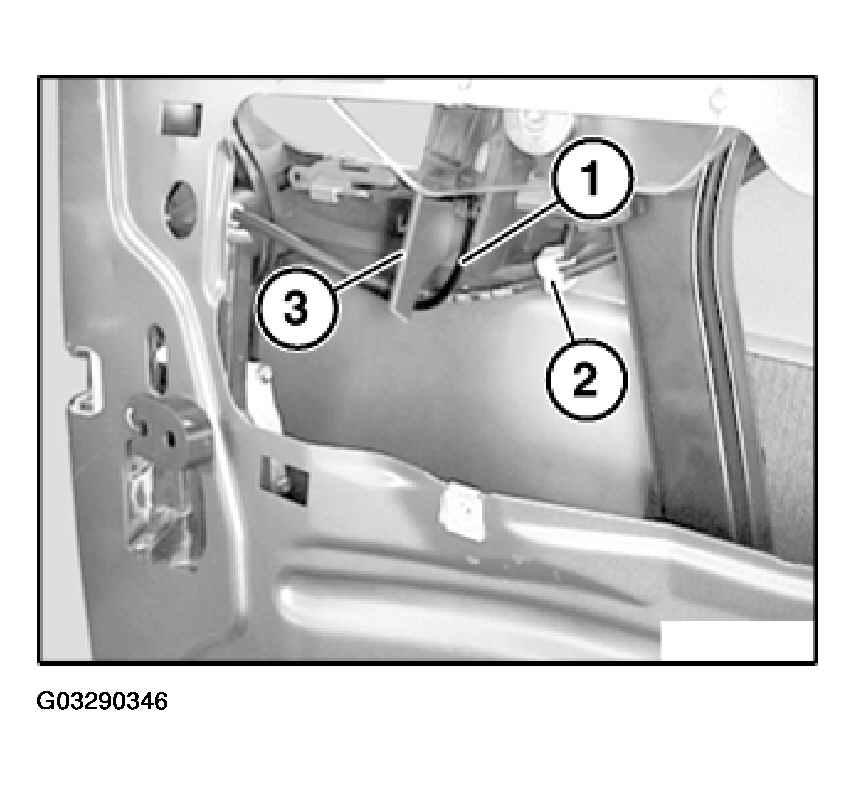

Bowden cable (1) and fibre optics cable (2) must be routed below bridge (3).

Fig 6: Identifying Bowden Cable And Fibre Optics Cable

Courtesy of BMW OF NORTH AMERICA, INC.

No fibre optics cables are fitted from build date 04/2004.

Installation:

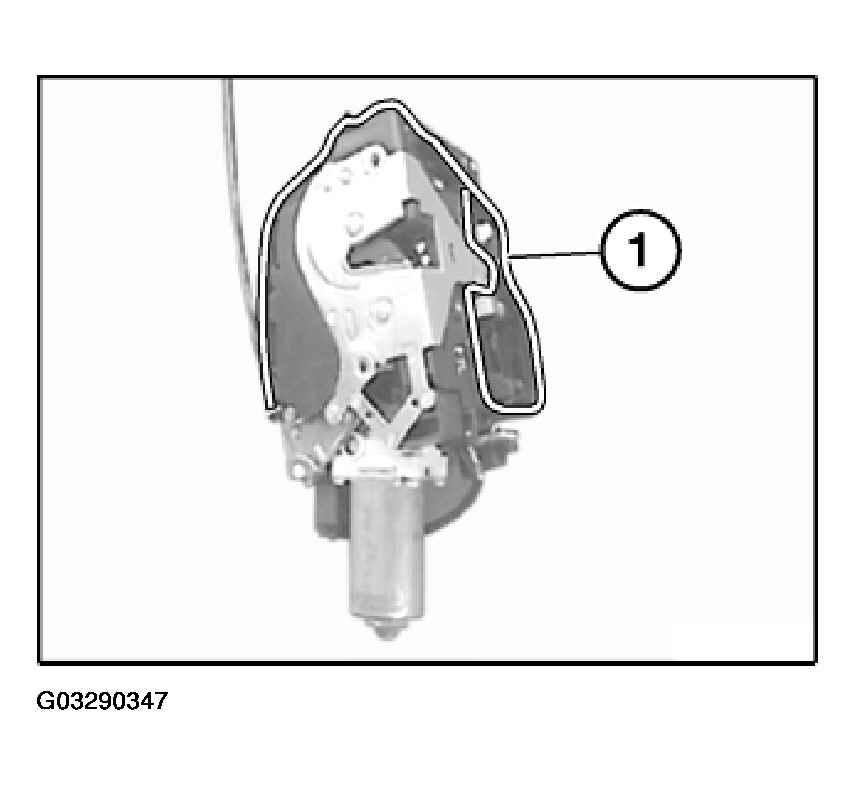

Seal (1) must not be damaged.

Fig 7: Identifying Seal

Courtesy of BMW OF NORTH AMERICA, INC.
