51 21 003 Replacing door detent (lock striker), front left or right
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

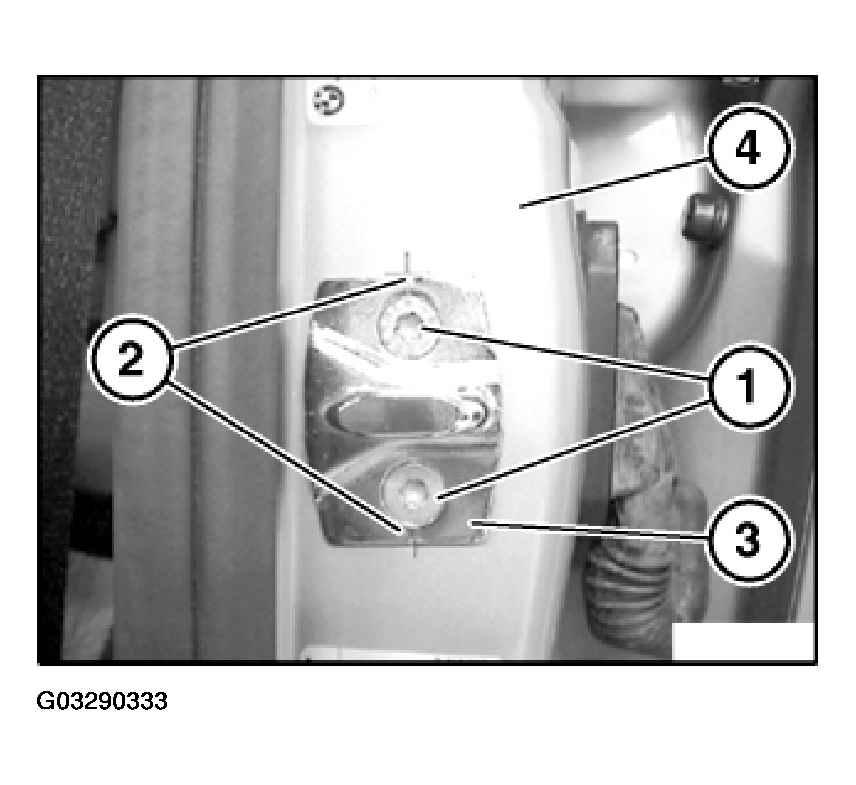

Release screws (1) and remove door detent (3).
Installation:
Basic adjustment via crosswire on B-pillar (4) and notches (2) on door detent (3).
Tightening torque 51 21 3AZ. Refer to BODY EQUIPMENT - TIGHTENING TORQUES .
Adjust door detent. .
