51 11 180 Removing and installing / replacing trim grille in bumper trim (up to 03/2005)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Release catches (1).

Remove trim grille (2) towards front.

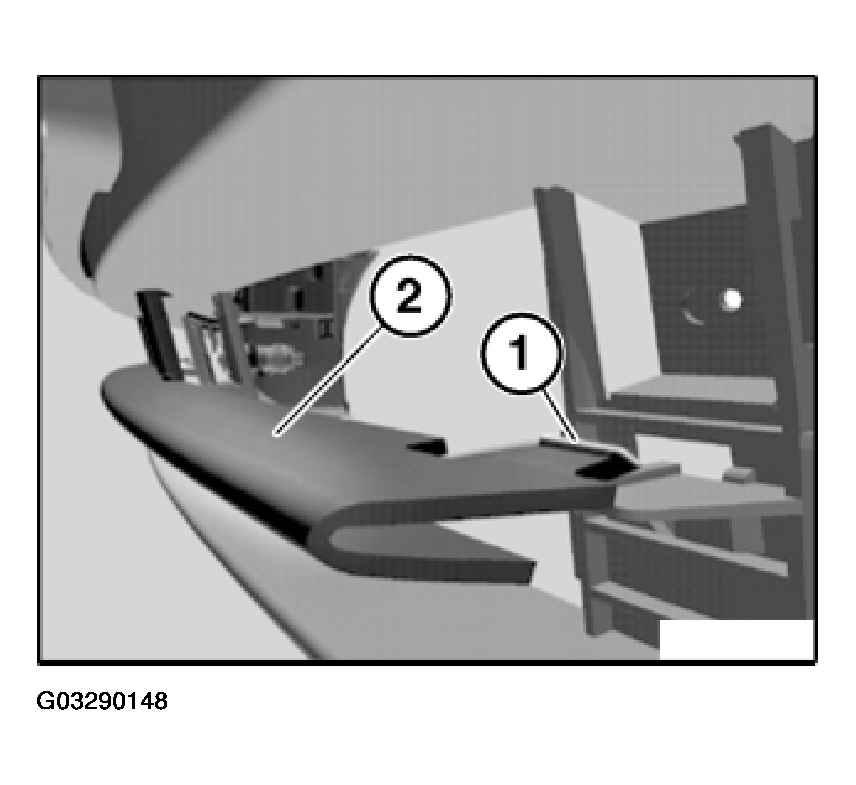

Fig 1: Removing Trim Grille
G03290148Courtesy of BMW OF NORTH AMERICA, INC.
