51 11 170 Replacing body molding for left or right bumper

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 321

Unclip body molding (1) with special tool 00 9 321.

Remove body molding (1) towards front.

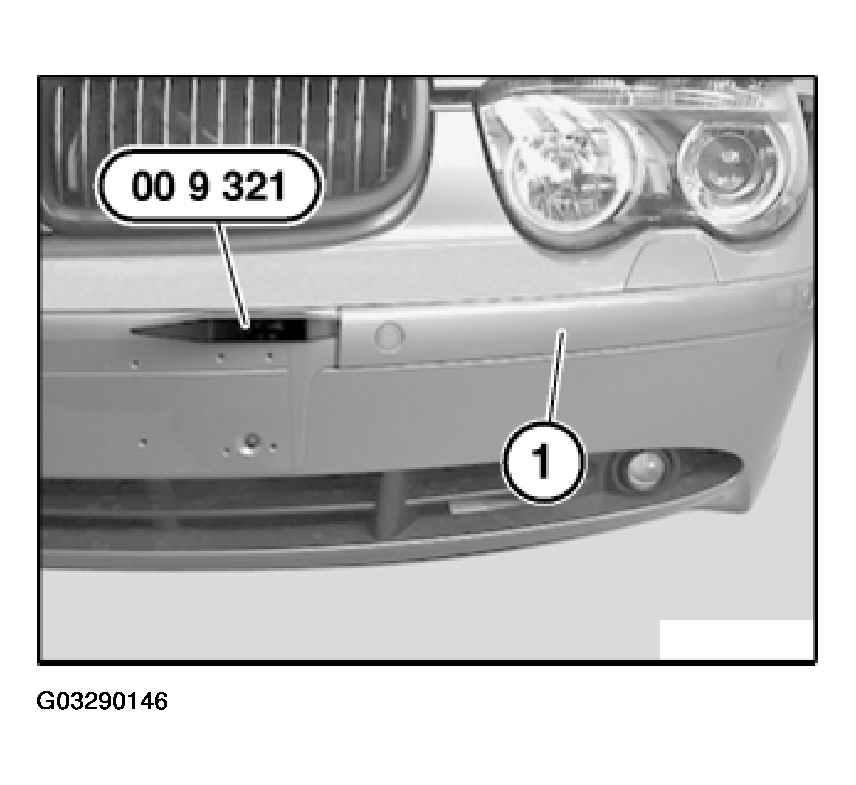

Fig 1: Removing Body Molding

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Version with PDC:

Remove ultrasonic transducer. Refer to 66 20 520 REMOVING AND INSTALLING/REPLACING AN ULTRASONIC TRANSDUCER AT FRONT (PARK DISTANCE CONTROL) .

Remove holder (1).

Version with Chromeline:

Release catches (2) and remove chrome trim from body molding.

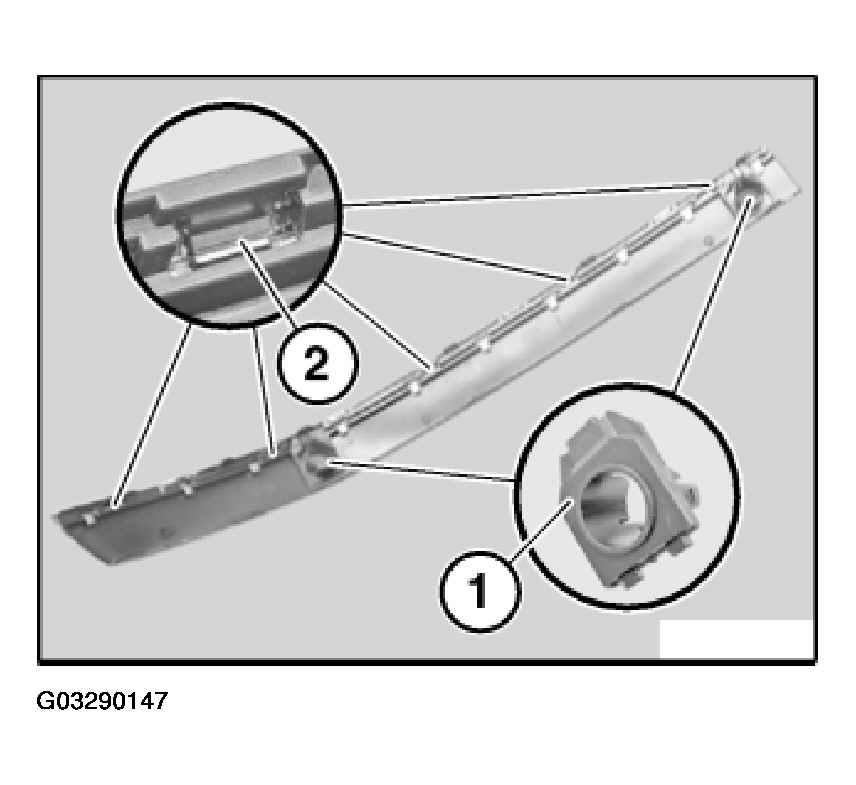

Fig 2: Releasing Catches And Remove Chrome Trim From Body Molding

Courtesy of BMW OF NORTH AMERICA, INC.
