Underbody protection, diesel engines

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Release screws (1 to 3).

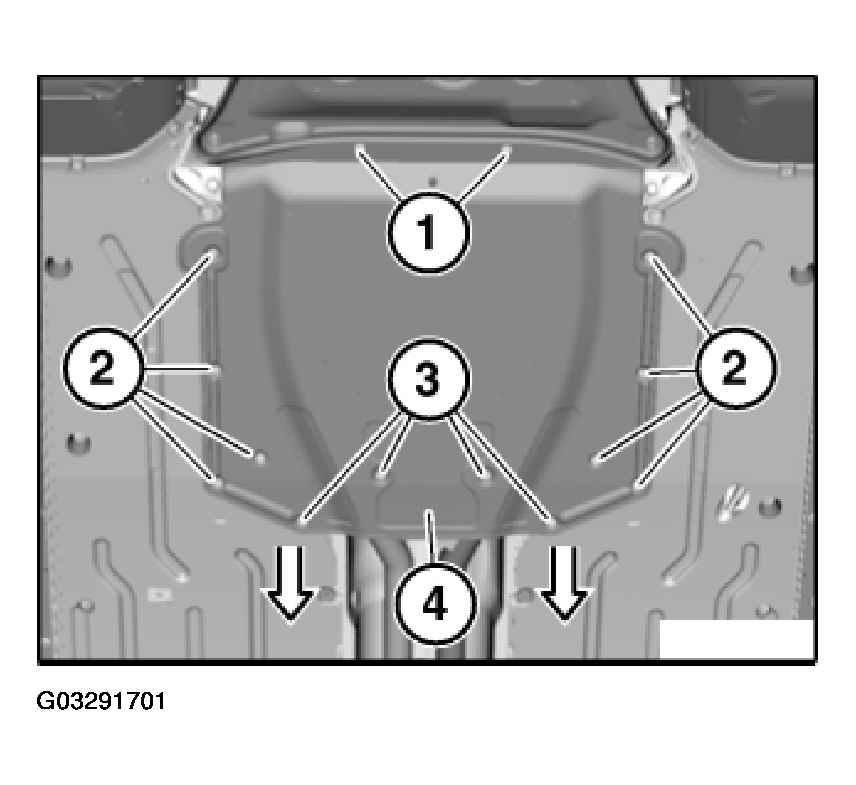

Fig 1: Removing Underbody Protection
G03291701Courtesy of BMW OF NORTH AMERICA, INC.

Remove underbody protection (4) towards rear.

Installation:

Centre underbody protection (4) and tighten down screws (1 to 3).
