51 47 065 Removing and installing / replacing finishing strip at front left or right entrance

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Unclip clips (1) for finishing strip (2) with special tool 00 9 317.

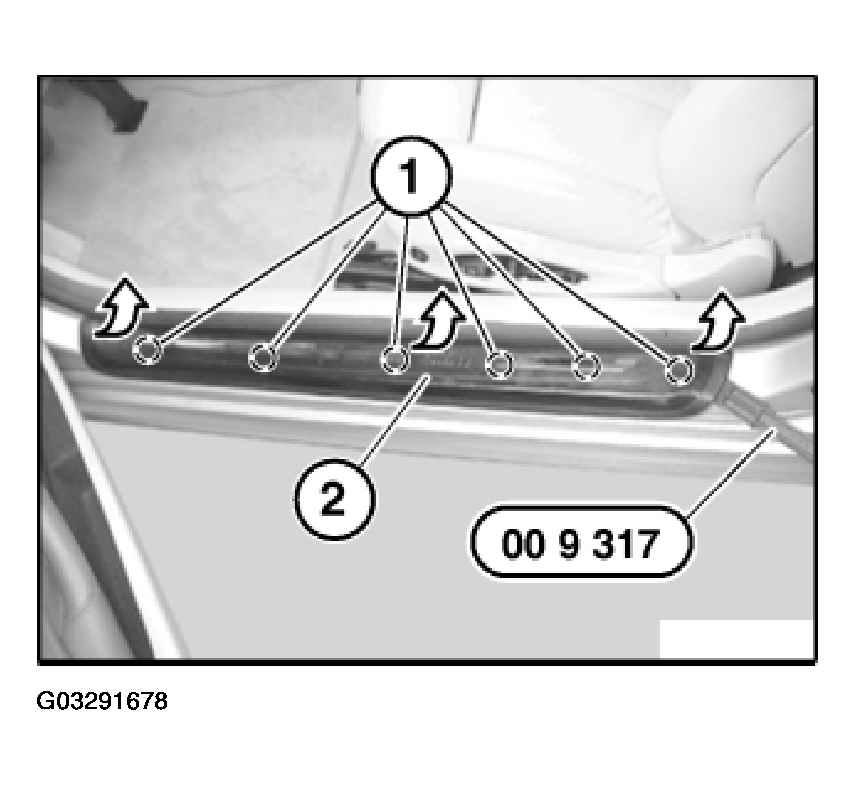

Fig 1: Removing Finishing Strip
G03291678Courtesy of BMW OF NORTH AMERICA, INC.

Remove finishing strip (2).

Installation:

If necessary, replace faulty clips (1 and 2).

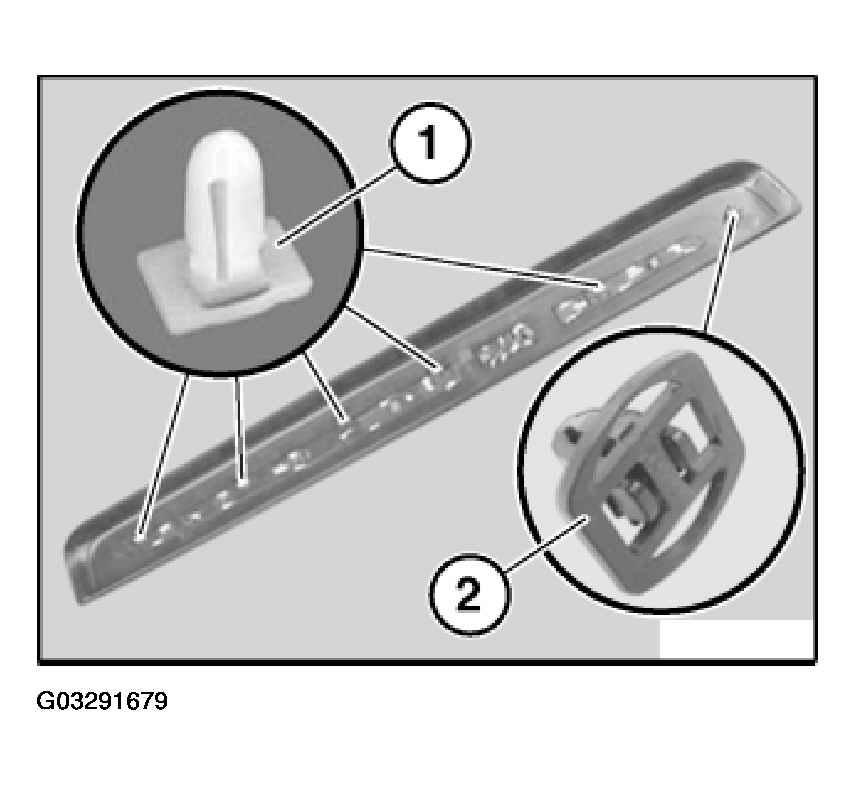

Fig 2: Replacing Faulty Clips
G03291679Courtesy of BMW OF NORTH AMERICA, INC.
