Special tools required:

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

00 9 321

Necessary preliminary tasks:

Version with rear seat (normal) only

Remove rear seat. Refer to 52 24 005 REMOVING AND INSTALLING/REPLACING REAR SEAT (NORMAL) .

Version with rear seat (comfort) only

Move rear seat completely towards front and top.

Press entrance cover strip (1) at front towards bottom and feed out from door pillar trim (2).

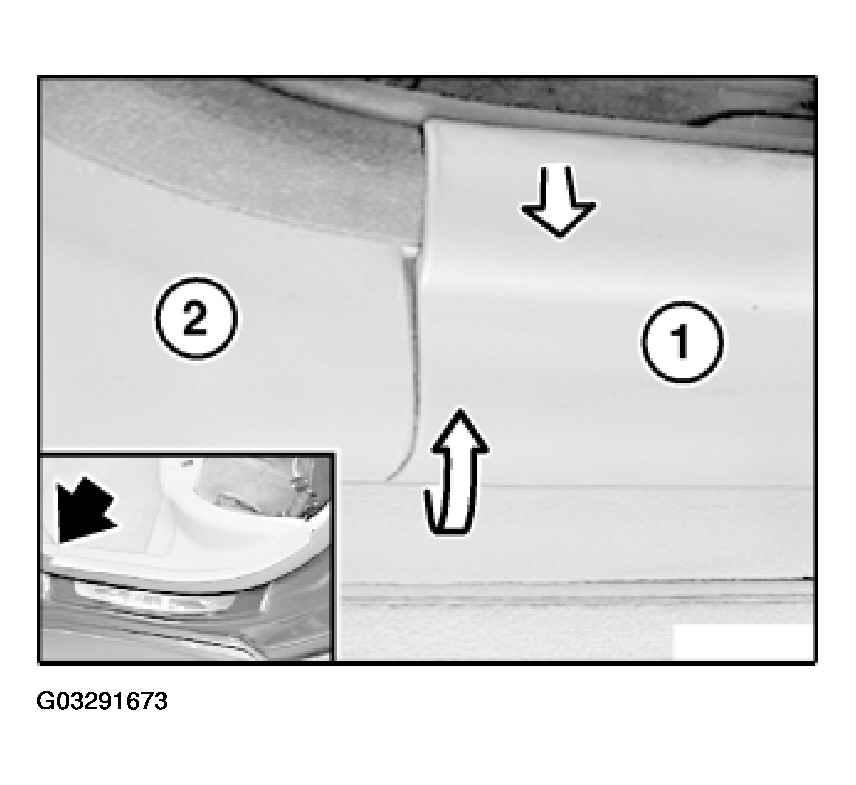

Fig 1: Removing Entrance Cover Strip From Door Pillar Trim

G03291673

Courtesy of BMW OF NORTH AMERICA, INC.

Remove entrance cover strip (1) at front from clips (2) of door pillar.

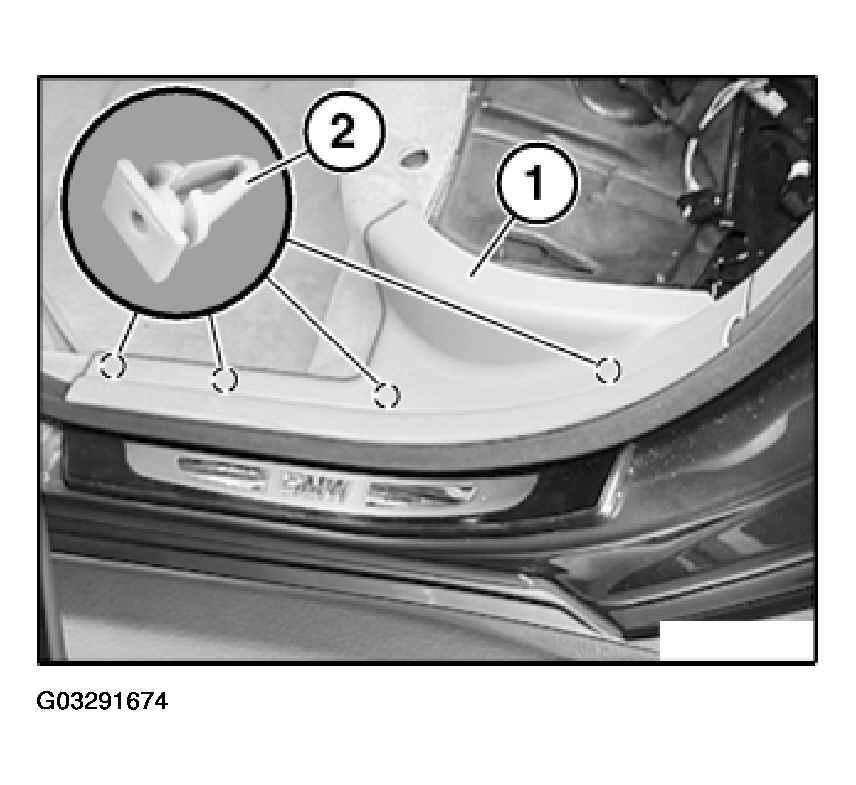

Fig 2: Removing Entrance Cover Strip

G03291674

Courtesy of BMW OF NORTH AMERICA, INC.

Release plastic nut (1).

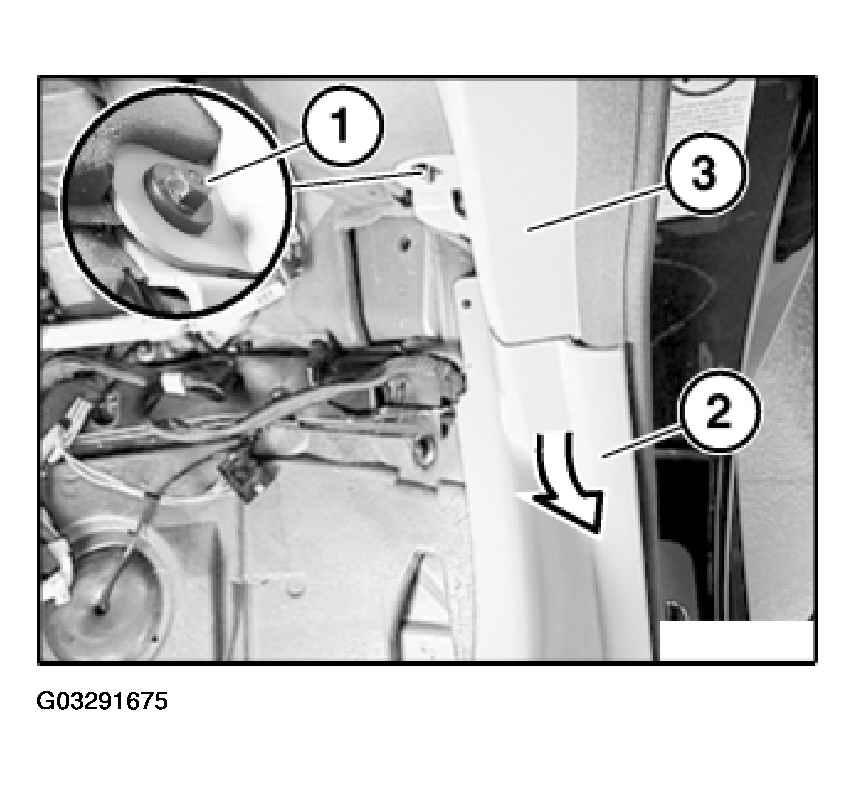

Fig 3: Releasing Plastic Nut

G03291675

Courtesy of BMW OF NORTH AMERICA, INC.

Feed cover strip (2) forwards and upwards out of trim (3) if necessary with aid of fishbone 00 9 321 and remove.

If necessary, lever clips with end cutting pliers (head of pliers surface-ground) out of door pillar.

NOTE: If necessary, detach mucket before removing trim on rear comfort seat.

Installation:

Feed in guide lugs (1) under trim (2).

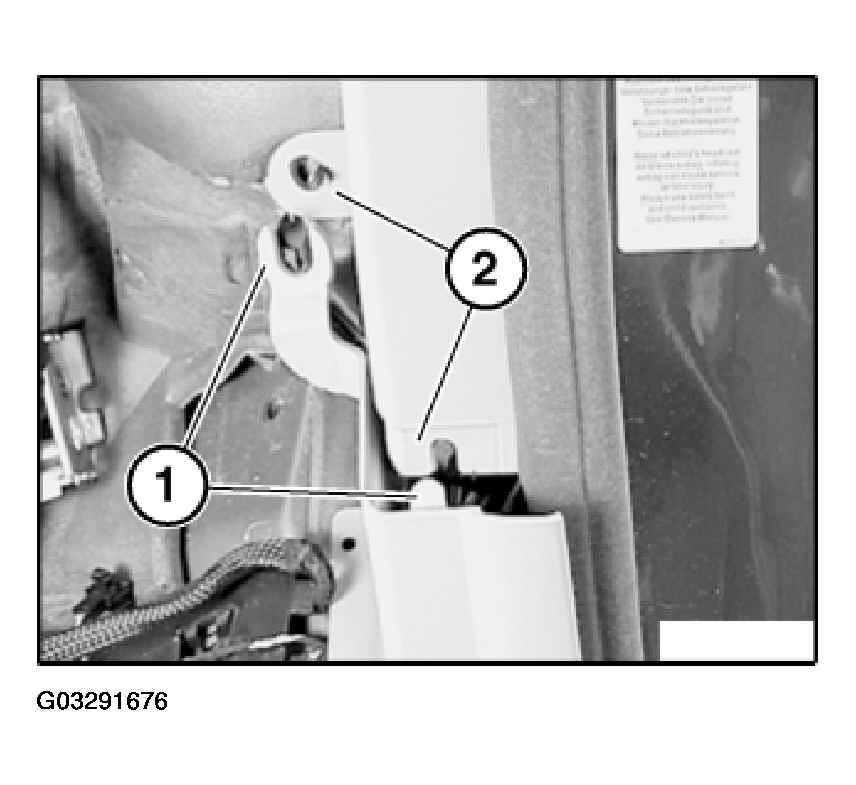

Fig 4: Feeding In Guide Lugs

G03291676

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, replace faulty clips (1).

Clip mounts of entrance cover strip (2) must not be damaged.

Push clips (1) onto entrance cover strip (2).

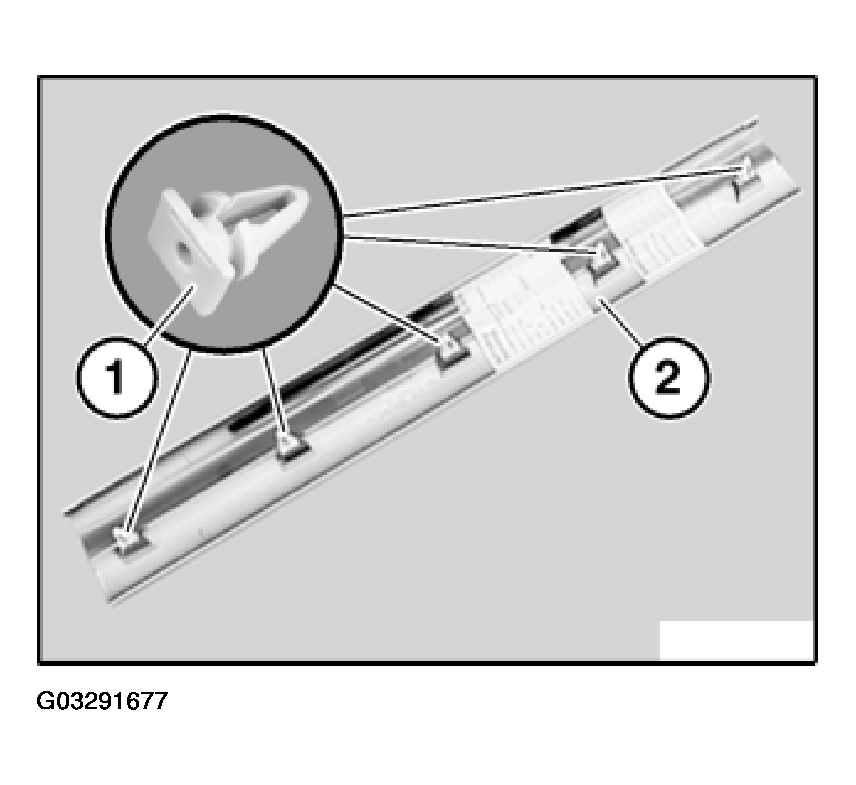

Fig 5: Pushing Clips Onto Entrance Cover Strip

G03291677

Courtesy of BMW OF NORTH AMERICA, INC.
