36 10 713 Checking one road wheel on balancing machine for face and radial runout (wheel removed)

WARNING: This page is about a different car, the 2005 BMW 745i, 2004 BMW 745i, 2003 BMW 745i, and 2002 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

36 1 030
36 1 031
36 1 032
36 1 033
36 1 034
36 1 035
36 1 036

Necessary preliminary tasks:

Remove wheel. Refer to 36 10 300 REMOVING OR INSTALLING FRONT OR REAR WHEEL .

Mount wheel in balancing machine.

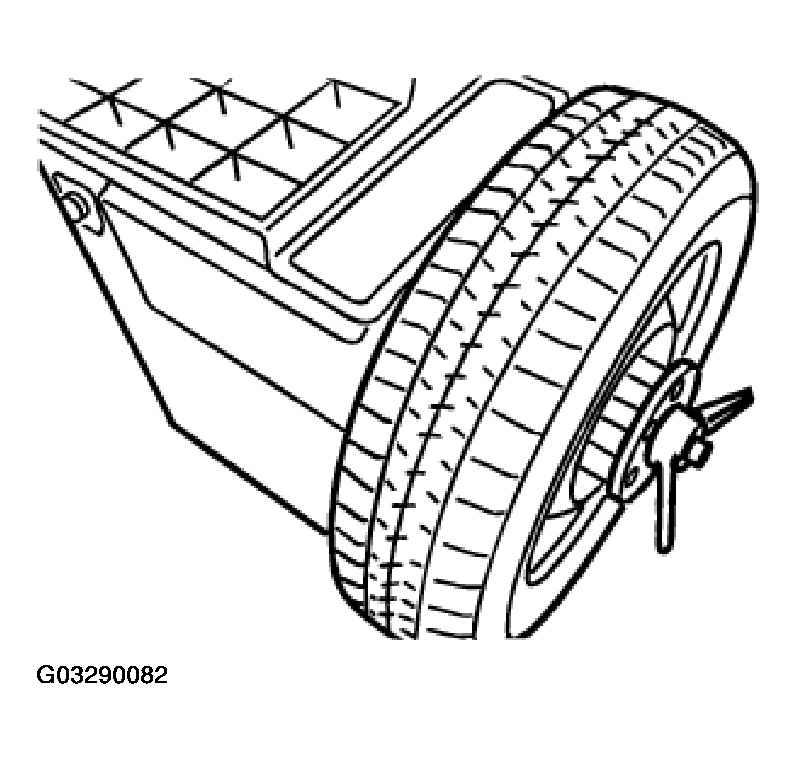

Fig 1: Mounting Wheel In Balancing Machine

G03290082

Courtesy of BMW OF NORTH AMERICA, INC.

To avoid retooling errors, fit the wheel on the balancing machine in the same way as it is also fitted on the car (valve position facing down).

Use suitable wheel centering element supplied with corresponding balancing machine.

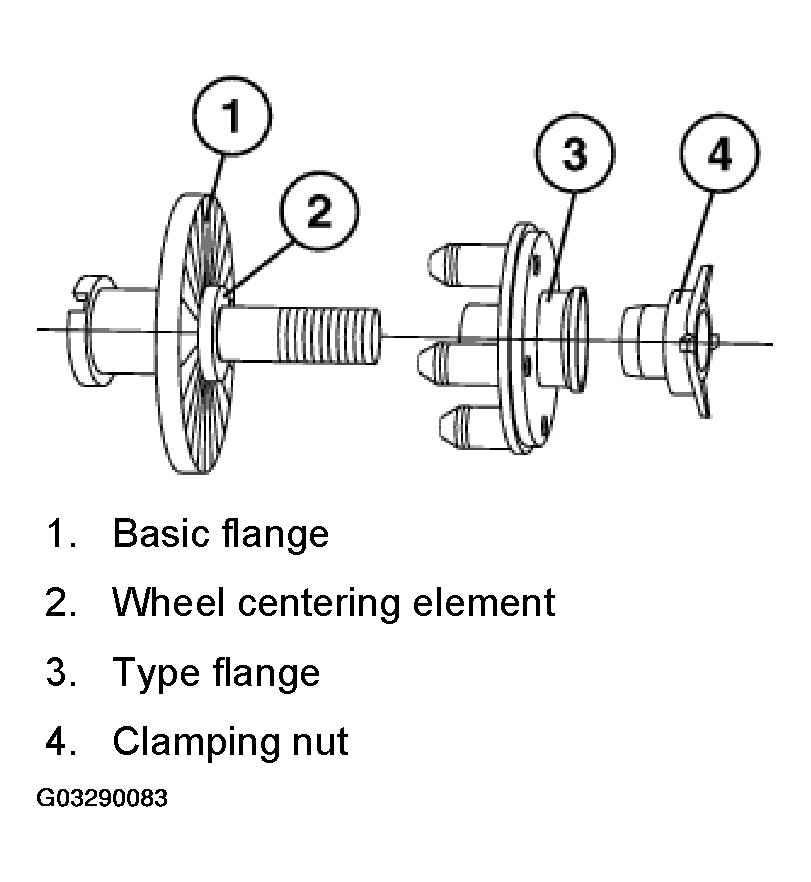

Fig 2: Identifying Wheel Centering Element

G03290083

Courtesy of BMW OF NORTH AMERICA, INC.

Use special tool 36 1 030 for testing.

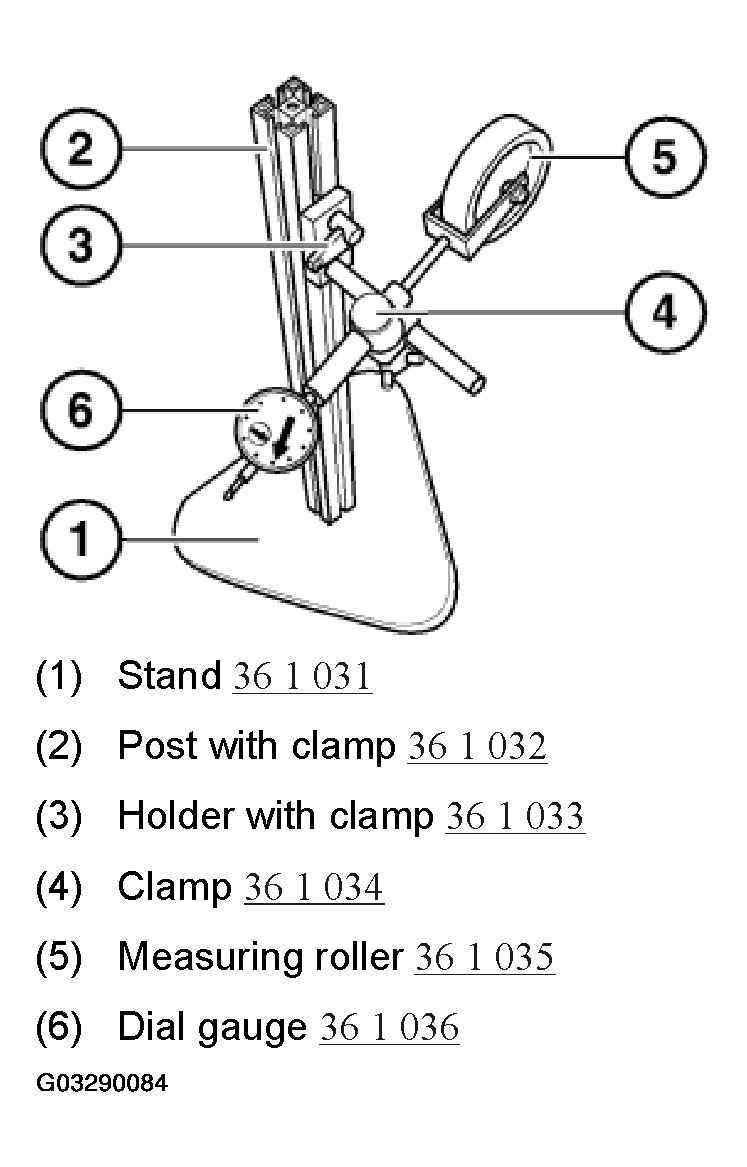

Fig 3: Using Special Tool For Testing

G03290084

Courtesy of BMW OF NORTH AMERICA, INC.

Position special tool 36 1 030 on tire tread.

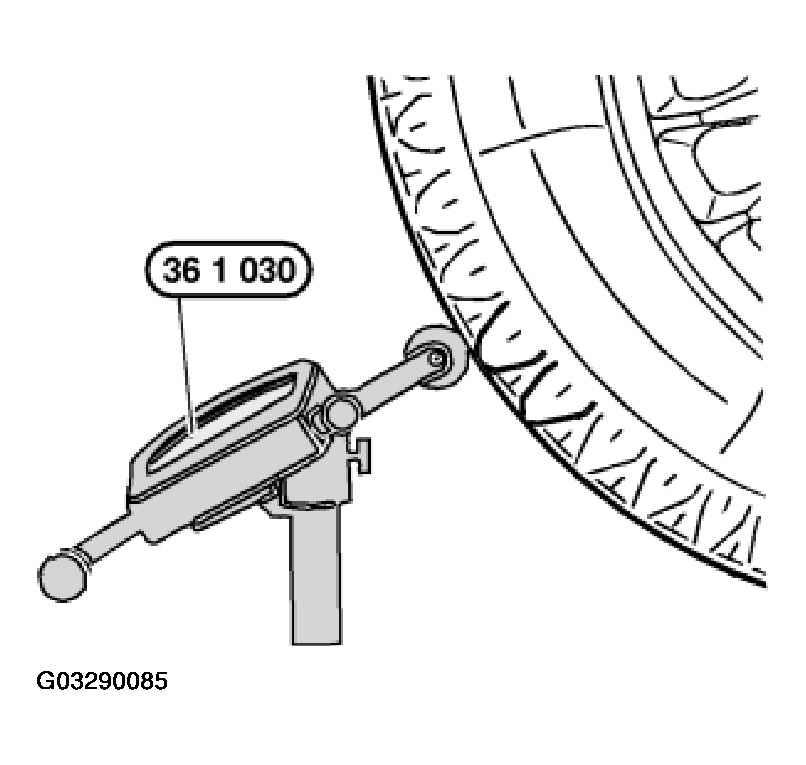

Fig 4: Positioning Special Tool On Tire Tread

G03290085

Courtesy of BMW OF NORTH AMERICA, INC.

Turn wheel by hand and measure max. radial tire runout. Refer to WHEEL AND TIRES - TECHNICAL DATA .

NOTE: Measuring device must be vertical to tire tread.

Position special tool 36 1 030 on tire sidewall.

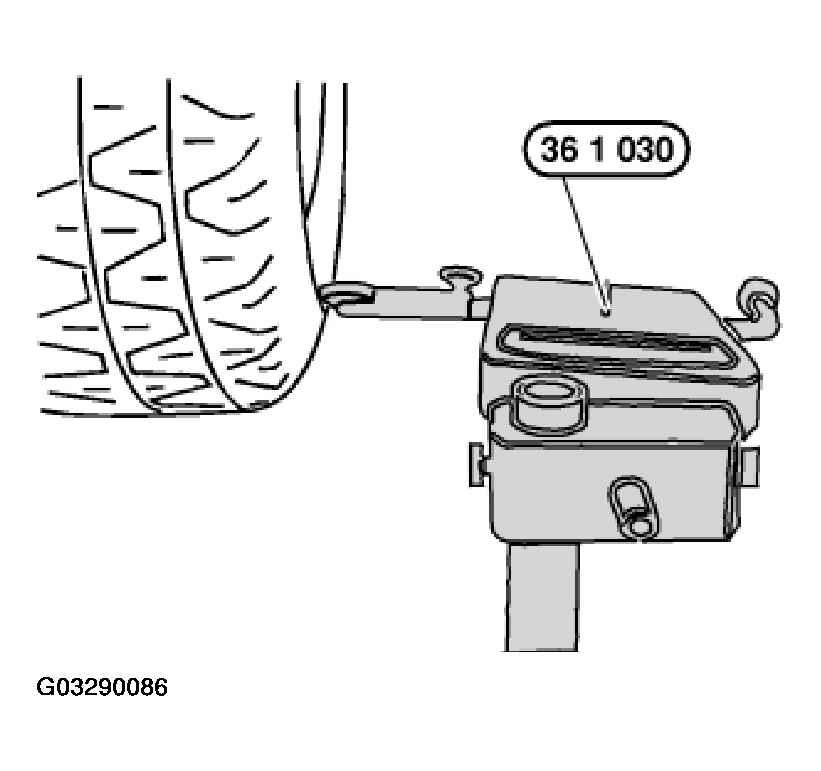

Fig 5: Positioning Special Tool On Tire Sidewall

G03290086

Courtesy of BMW OF NORTH AMERICA, INC.

Turn wheel by hand and measure max. lateral tire runout. Refer to WHEEL AND TIRES - TECHNICAL DATA .

NOTE: Measuring device must be vertical to tire sidewall.
Never measure on printed text on tire!
If necessary, check disk wheel (rim) for radial and face runout. Refer to 36 10 715 CHECKING RIM FOR FACE AND RADIAL RUNOUT .
