36 10 209 Checking front and rear wheel for face and radial runout

WARNING: This page is about a different car, the 2005 BMW 745i, 2004 BMW 745i, 2003 BMW 745i, and 2002 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

36 1 030

Necessary preliminary tasks:

Check wheel bearings

Lift vehicle.

Check wheel with special tool 36 1 030 (measuring fixture) for lateral runout. Refer to WHEEL AND TIRES - TECHNICAL DATA .

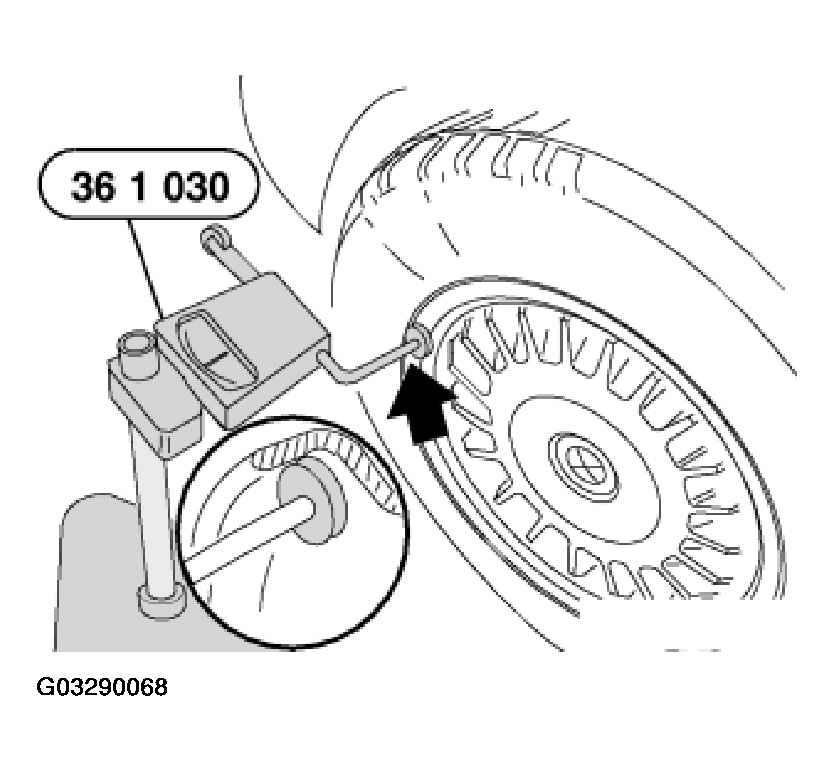

Fig 1: Checking Wheel For Lateral Runout

Courtesy of BMW OF NORTH AMERICA, INC.

Check wheel with special tool 36 1 030 (measuring fixture) for radial runout. Refer to WHEEL AND TIRES - TECHNICAL DATA .

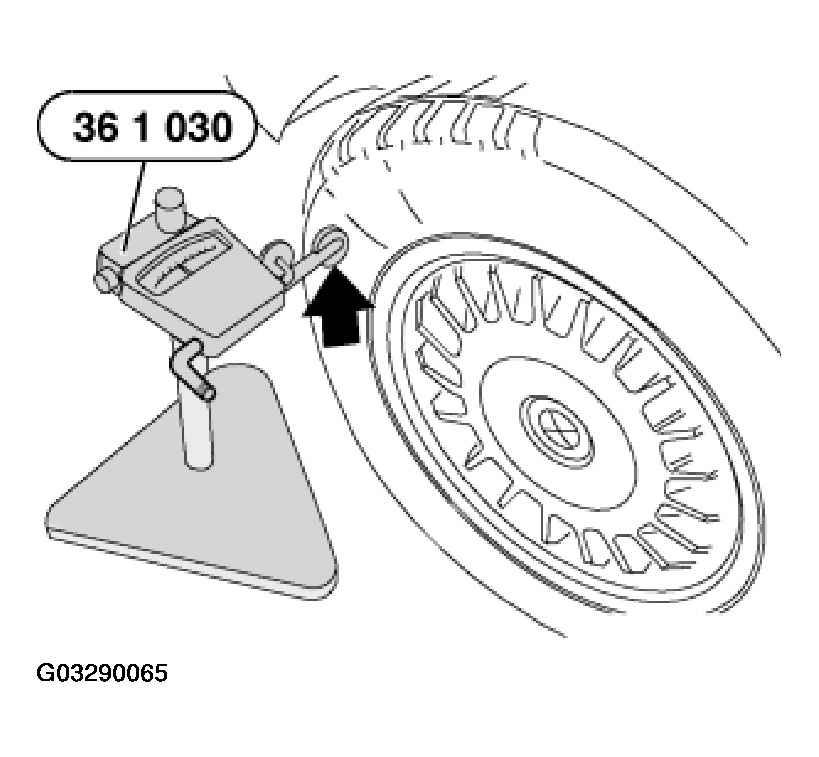

Fig 2: Checking Wheel For Radial Runout

Courtesy of BMW OF NORTH AMERICA, INC.

If applicable, remove balance weights.

Check lateral runout of rim with special tool 36 1 030 (measuring fixture). Refer to WHEEL AND TIRES - TECHNICAL DATA .

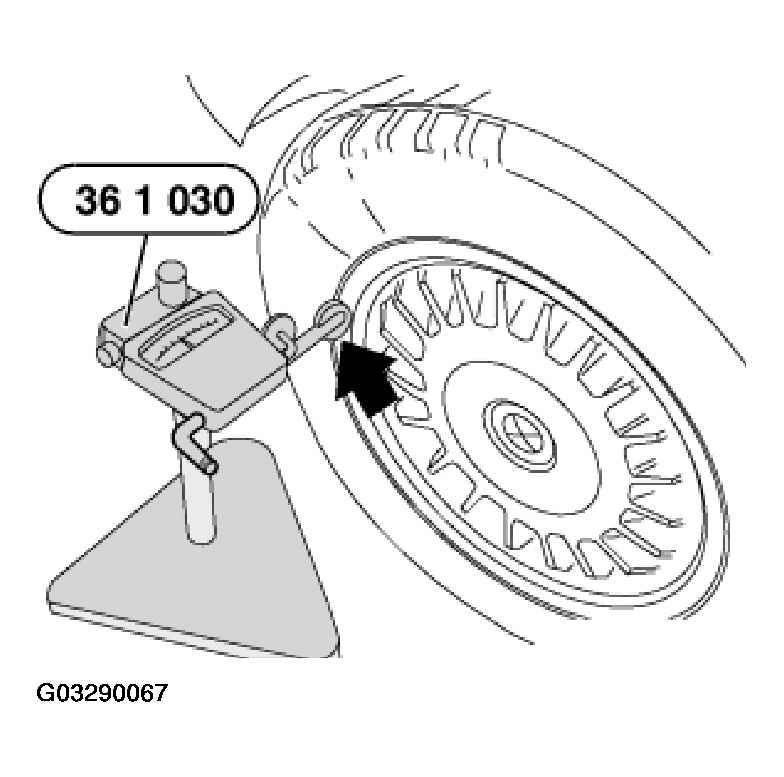

Fig 3: Checking Lateral Runout Of Rim

Courtesy of BMW OF NORTH AMERICA, INC.

Check radial runout of rim with special tool 36 1 030 (measuring fixture). Refer to WHEEL AND TIRES - TECHNICAL DATA .

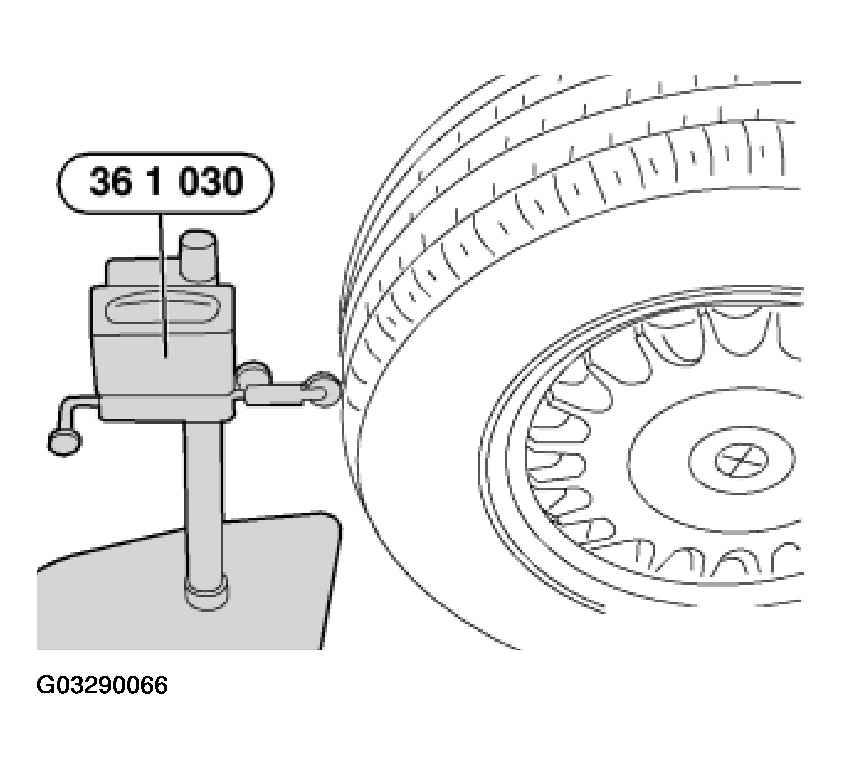

Fig 4: Checking Radial Runout Of Rim
