36 11 527 Removing and installing/replacing rear receiving antenna for RDC

WARNING: This page is about a different car, the 2005 BMW 745i, 2004 BMW 745i, 2003 BMW 745i, and 2002 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Operations for removing and installing receiving antenna at rear left or right are identical.

Remove rear left or right wheel arch trim.

NOTE: Holder with receiving antenna is detached by removal of wheel arch trim.

Observe safety instructions on raising the vehicle. Refer to 00 .. ... LIFTING VEHICLE WITH A LIFTING PLATFORM .

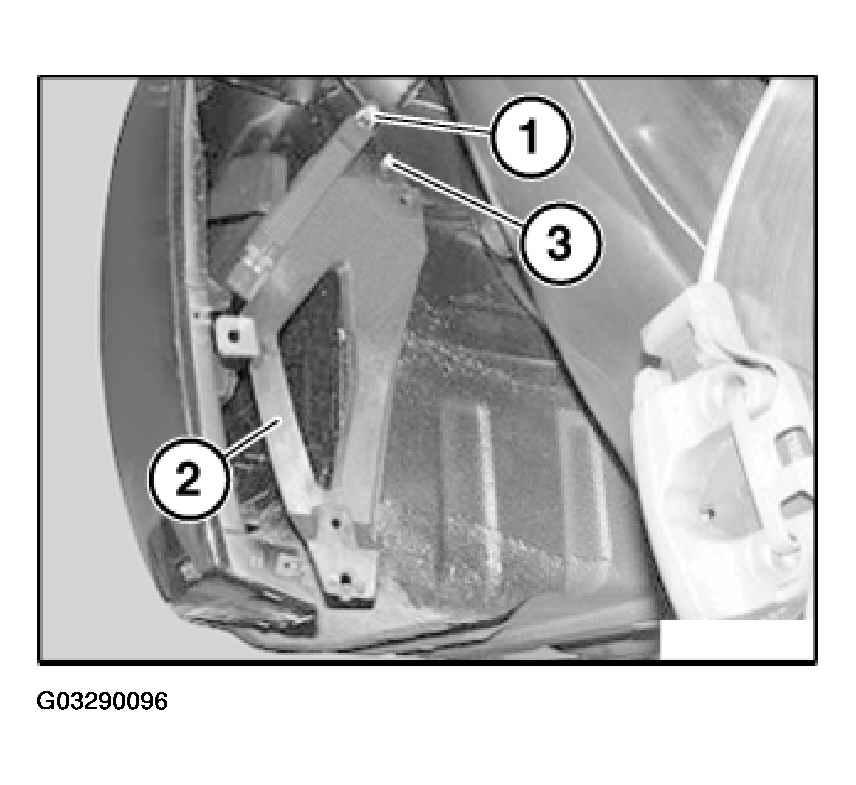

Unlock plug (1) and disconnect.

Fig 1: Detaching Receiving Antenna

Courtesy of BMW OF NORTH AMERICA, INC.

Detach receiving antenna with fixture (2) from threaded pin (3).

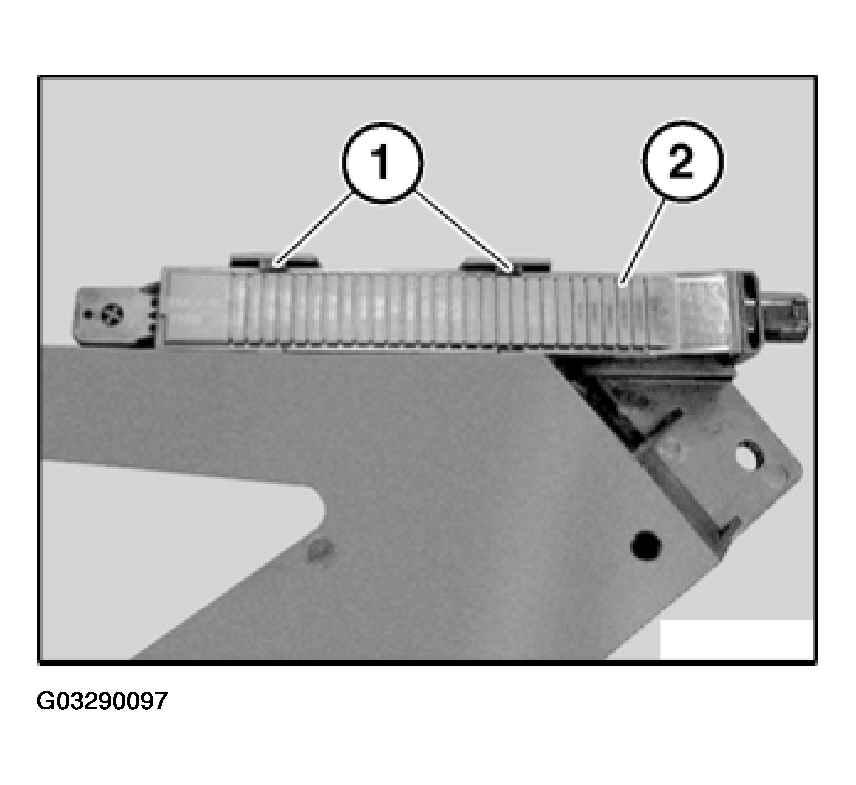

Unlock retaining lugs (1) and unclip receiving antenna (2).

Fig 2: Unlocking Retaining Lugs

Courtesy of BMW OF NORTH AMERICA, INC.
