22 32 055 Removing and installing/replacing transmission support block
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Replacing rubber mount for transmission mounting, refer to 22 32 001 Replacing Rubber Mount For Transmission Mounting
- Observe safety instructions on raising the vehicle, refer to 00..... LIFTING VEHICLE WITH A LIFTING PLATFORM
Remove exhaust system suspension (1) from transmission support block.

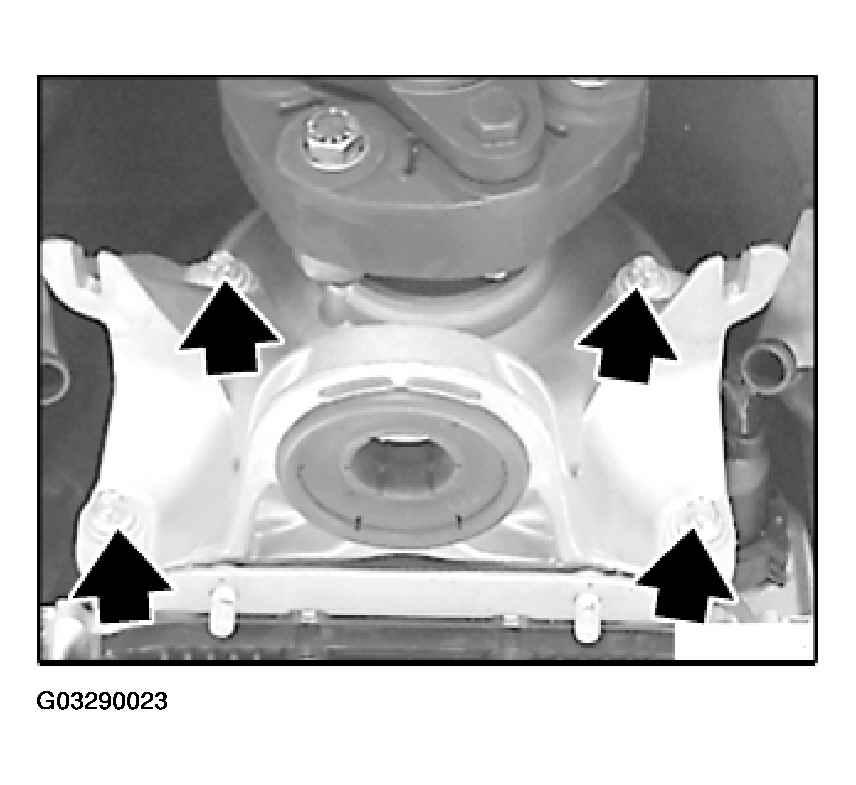

Remove transmission support block from transmission.
Installation:
Tightening torque 22 32 2AZ. Refer to ENGINE AND GEARBOX SUSPENSION - TIGHTENING TORQUES .
