22 11 001 Replacing right engine mount (N62/N62TU)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Secure engine in installation position, refer to SECURING ENGINE IN INSTALLATION POSITION WITH SPECIAL TOOL (N62)
Release both engine mounts from above. SeeFig 1
Remove front underbody protection. See 51 47 490 REMOVING AND INSTALLING / REPLACING FRONT UNDERBODY PROTECTION
Remove front wheels, refer to 36 10 300 REMOVING OR INSTALLING FRONT OR REAR WHEEL
Lower front axle support, refer to FRONT AXLE SUPPORT
Remove reinforcement plate. Upon installation, replace screws and captive nuts. Tighten to 56 Nm with a torque angle of 90°.
Observe safety instructions on raising the vehicle, refer to 00..... LIFTING VEHICLE WITH A LIFTING PLATFORM

Release screw connection for engine mount at bottom right.

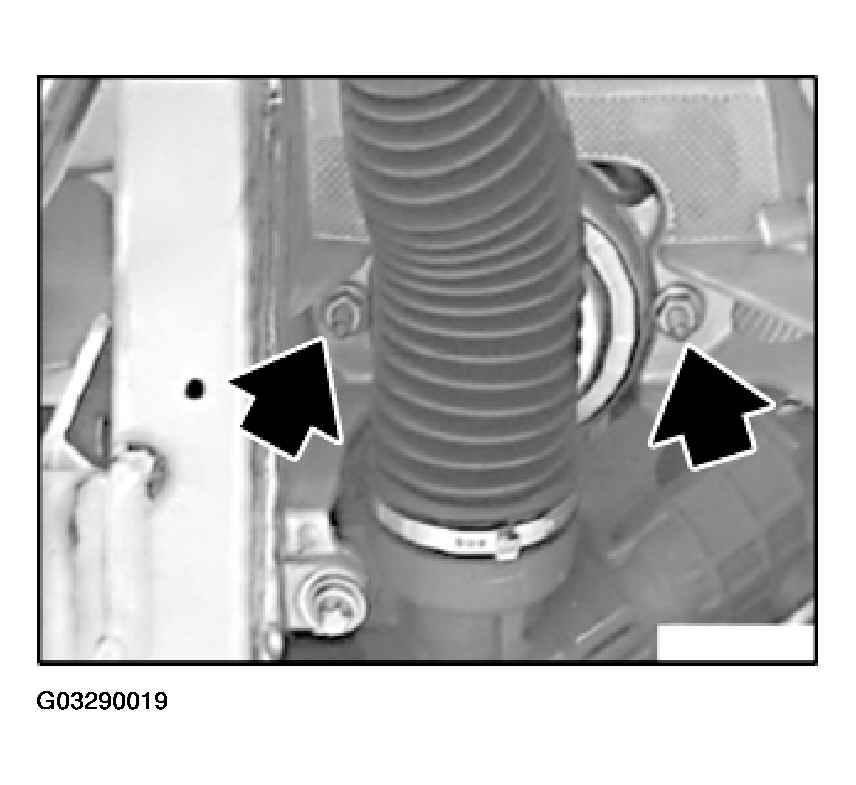

Fig 1: Removing Engine Mount

Courtesy of BMW OF NORTH AMERICA, INC.

Remove engine mount towards front.

Installation:

Lug (1) of engine mount must point to middle of vehicle.

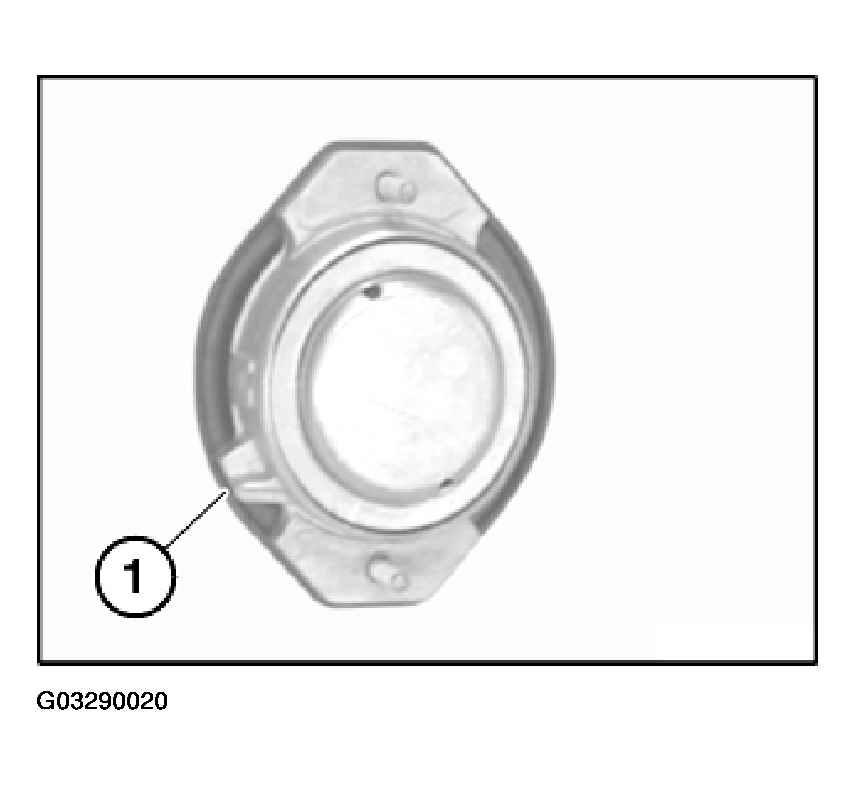

Fig 2: Installing Lug Of Engine Mount

Courtesy of BMW OF NORTH AMERICA, INC.

Engine mount designations:

Right engine mount: Even component number
Left engine mount: Odd component number
