17 40 000 Removing and installing/replacing complete auxiliary fan (N62)

WARNING: This page is about a different car, the 2005 BMW 745i, 2004 BMW 745i, 2003 BMW 745i, and 2002 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Remove design cover. Refer to Removing design cover (N62) .

Unfasten screws.

Remove front wall (1).

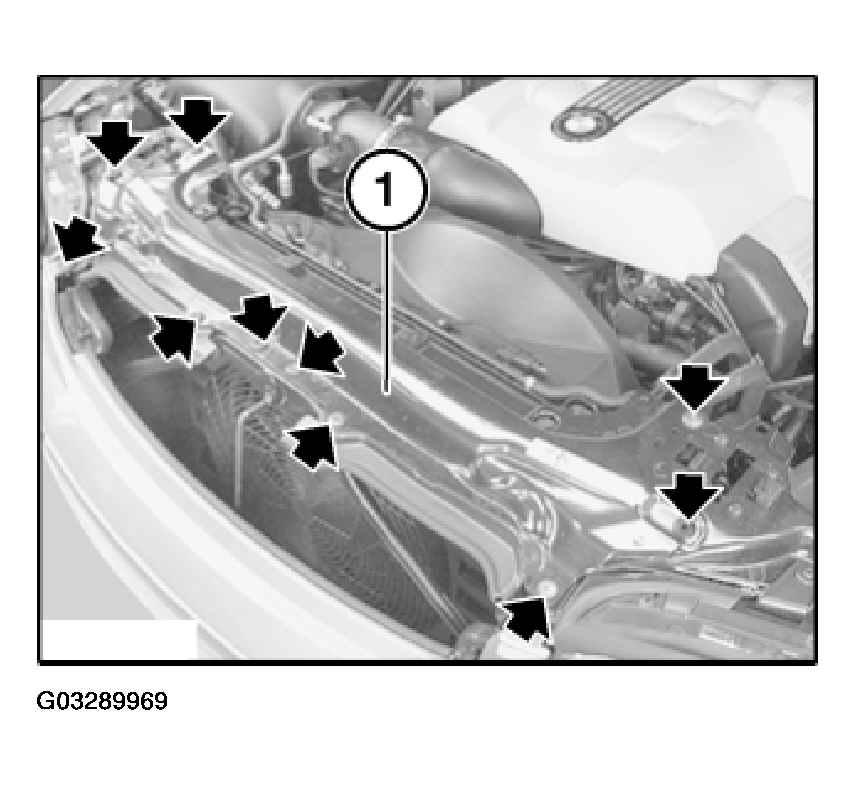

Fig 1: Removing Front Wall

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws.

Remove radiator cowling (2).

Fig 2: Removing Radiator Cowling

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip auxiliary fan cover and remove.

Unlock plug connection and detach.

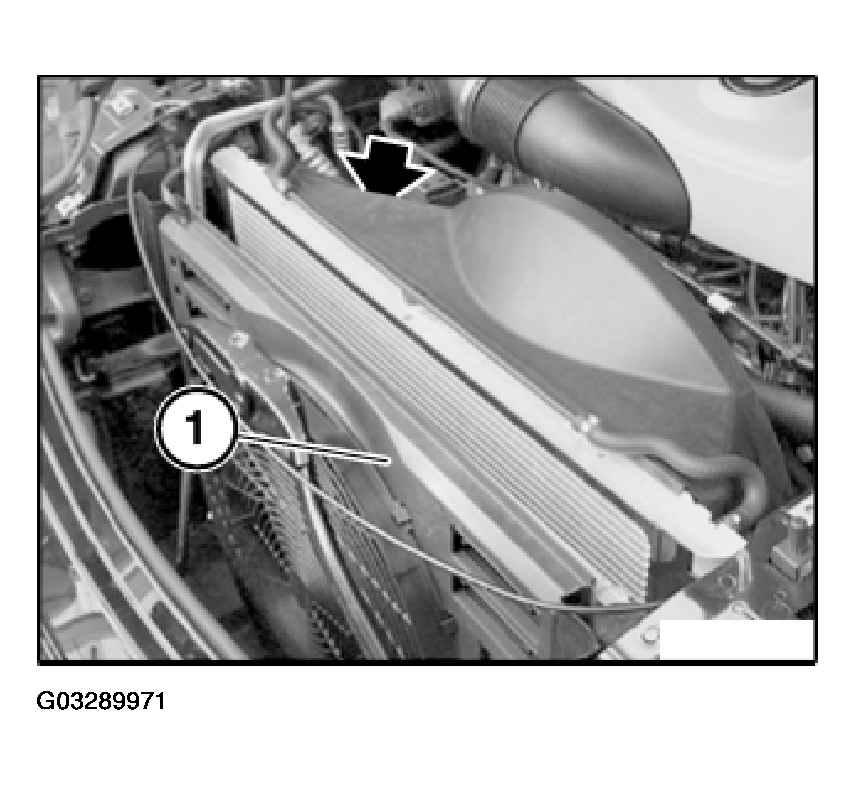

Fig 3: Removing Auxiliary Fan

Courtesy of BMW OF NORTH AMERICA, INC.

Remove auxiliary fan (1) towards top.
