16 11 130 Checking filler cap pressure relief valve: Notes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

13 3 010
16 1 171
16 1 172
16 1 173

Set pressure regulator on special tool 16 1 171 fully in "-" direction.

Connect special tool 16 1 171 via compressed air line (1) to workshop/garage compressed air system (8...10 bar).

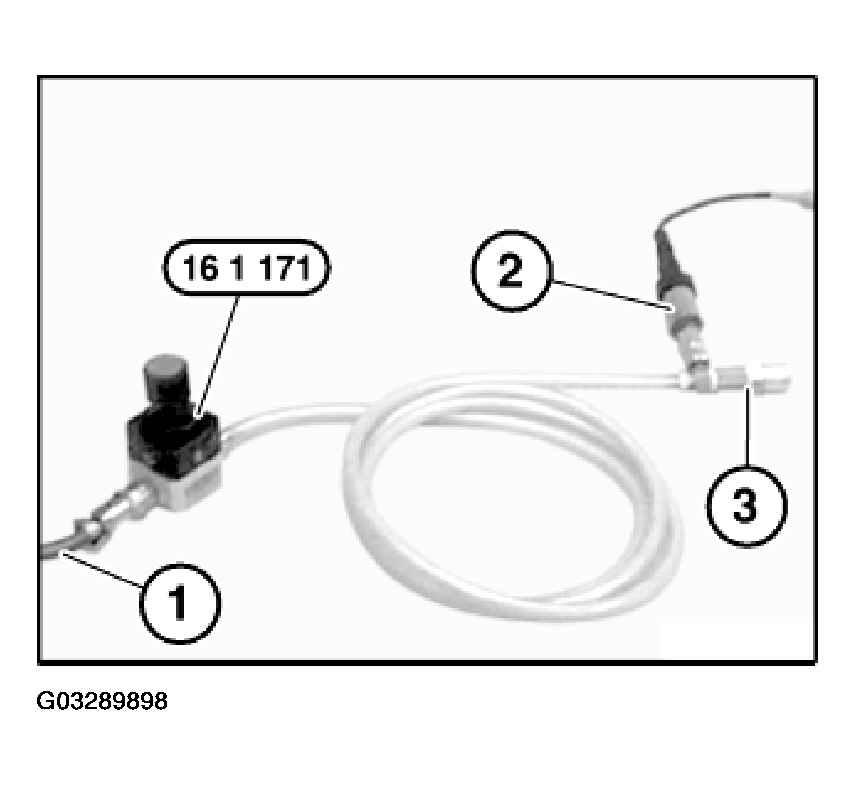

Fig 1: Connecting Pressure Sensor Of Diagnosis And Information System

Courtesy of BMW OF NORTH AMERICA, INC.

Connect pressure sensor (2) of Diagnosis and Information System with a measuring range of 0...3.5 bar.

Select special tool 16 1 172 or 16 1 173 matching vehicle's filler cap and attach to quick-release coupling of special tool 16 1 171.

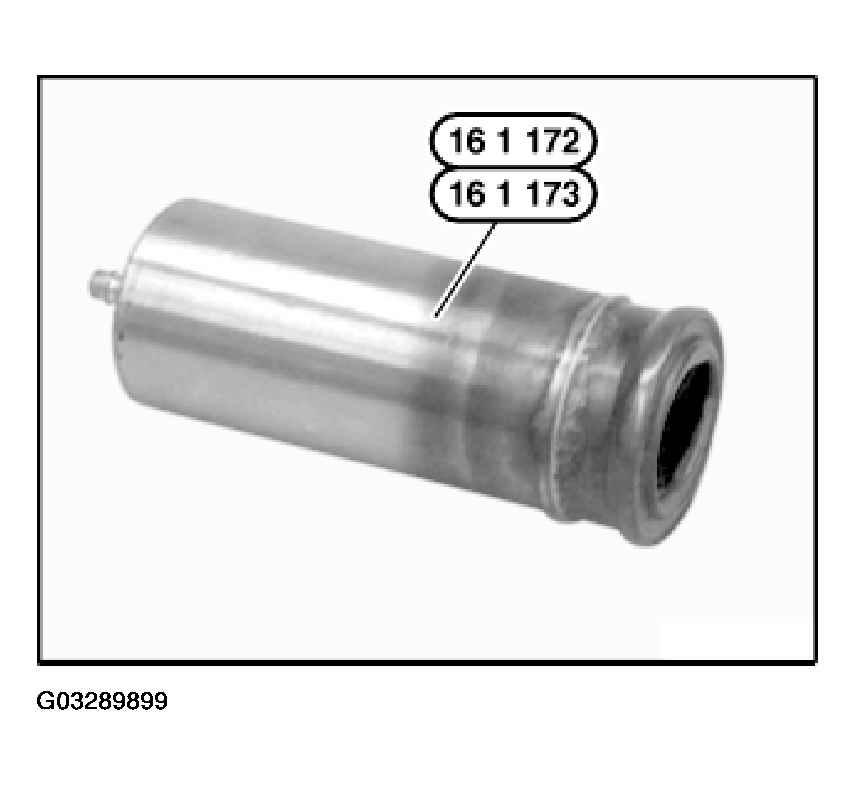

Fig 2: Identifying Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Install filler cap on selected special tool.

NOTE: Only the absolute pressure is indicated in the display of the Diagnosis and Information System (DIS). The current ambient air pressure is already displayed without additional pressurization.
