16 11 060 Removing and installing/replacing fuel filler pipe

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: After installing fuel filler pipe, check electrical resistance between metal filler bowl and wheel hub.
Measured value approx. 0.6 Ω

Draw off fuel from fuel tank. Refer to 16 00 005 Draining and filling fuel tank .

Remove rear right wheel. Refer to 36 10 300 REMOVING OR INSTALLING FRONT OR REAR WHEEL .

Remove rear right wheel arch trim. See 51 71... REMOVING AND INSTALLING/REPLACING FRONT BOTTOM RIGHT WHEEL ARCH TRIM

Observe safety instructions on raising the vehicle. Refer to 00..... LIFTING VEHICLE WITH A LIFTING PLATFORM .

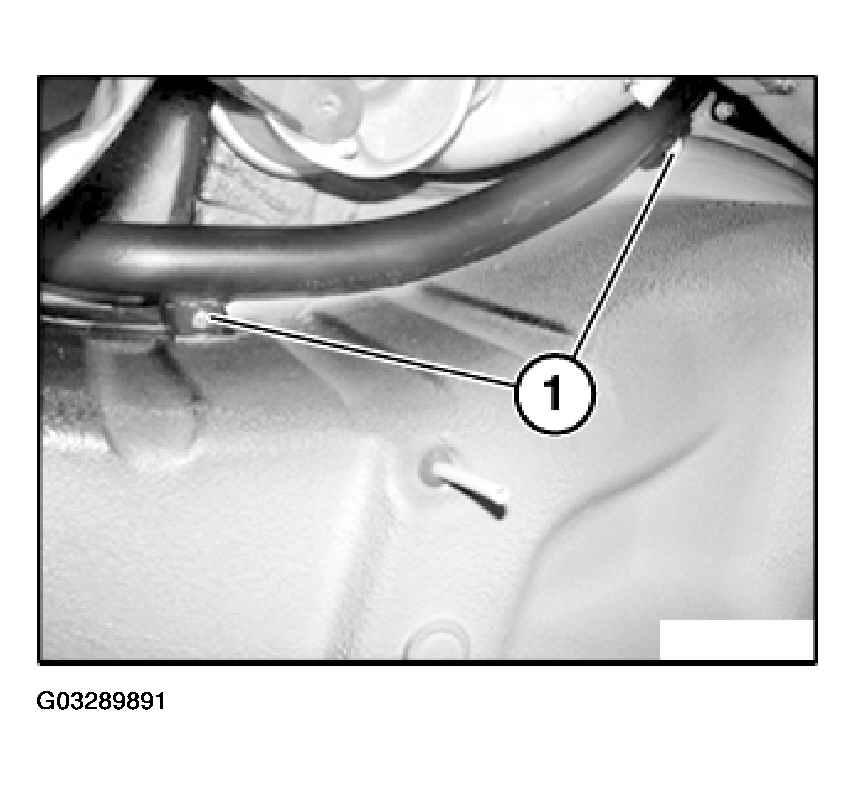

Release plastic nuts (1).

Fig 1: Releasing Plastic Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Tightening torque 16 12 11AZ. Refer to FUEL SUPPLY SYSTEM - TIGHTENING TORQUES .

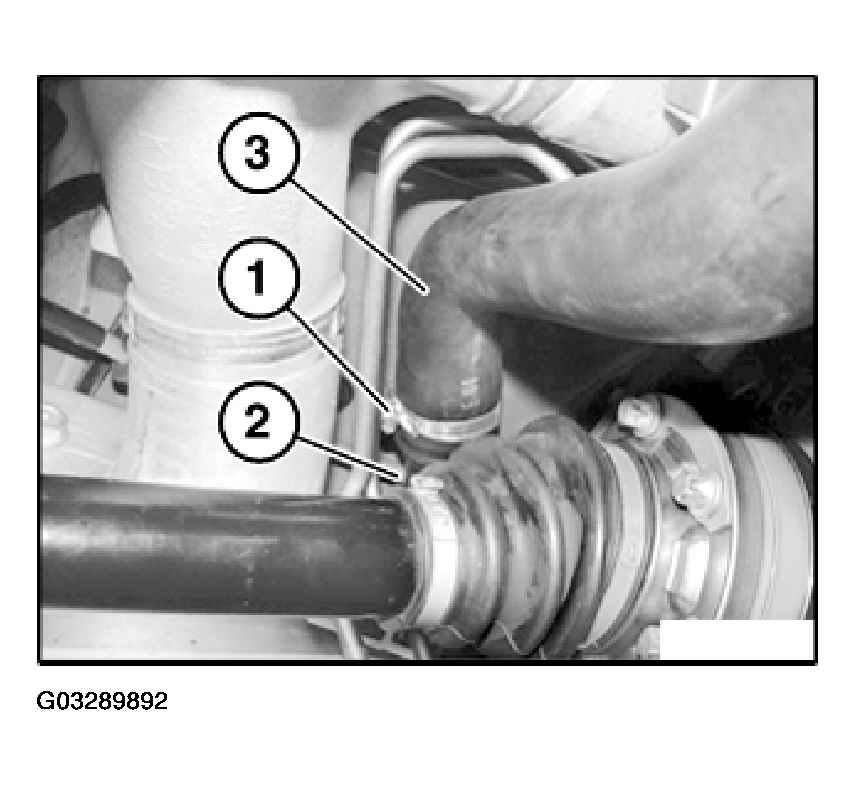

Unfasten hose clip (1).

Fig 2: Disconnecting Hose Clip

Courtesy of BMW OF NORTH AMERICA, INC.

Withdraw fuel filler pipe from connecting hose.

Installation:

Replace hose clip.

Tightening torque 16 12 10AZ. Refer to FUEL SUPPLY SYSTEM - TIGHTENING TORQUES .

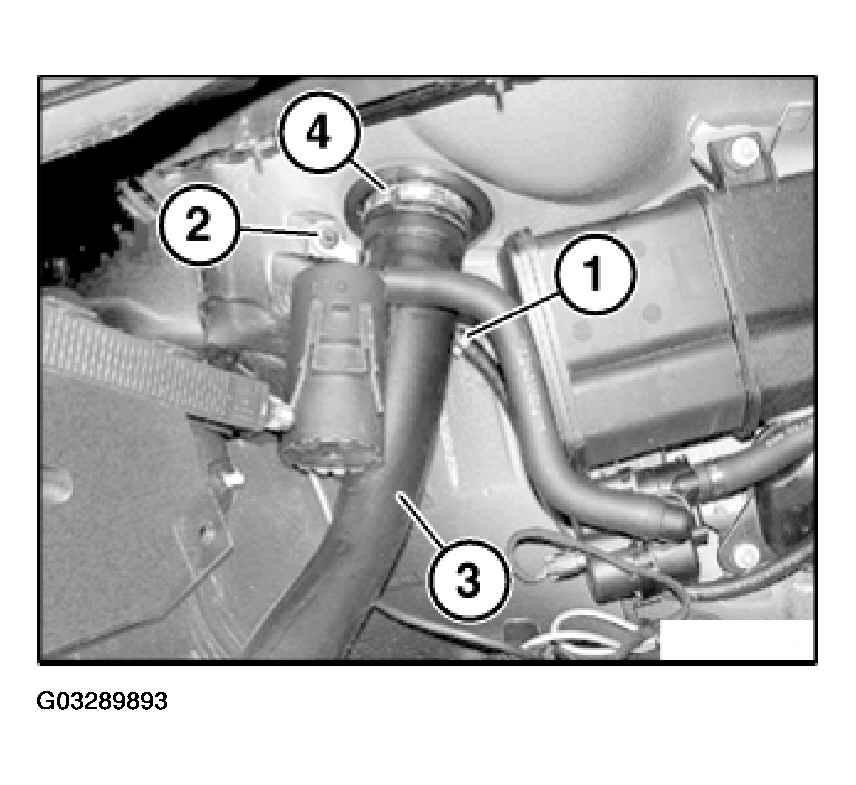

Unfasten hose clip (1).

Detach hose from fuel filler pipe.

Release screw (2).

Fig 3: Releasing Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Withdraw fuel filler pipe (3) from rubber sleeve (4).

Installation:

When installing fuel filler pipe, make sure rubber sleeve (4) is correctly seated.

Replace hose clip.

Tightening torque 16 12 10AZ. Refer to FUEL SUPPLY SYSTEM - TIGHTENING TORQUES .
