Left side

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Remove sucking jet pump from fuel tank and pull upwards to remove

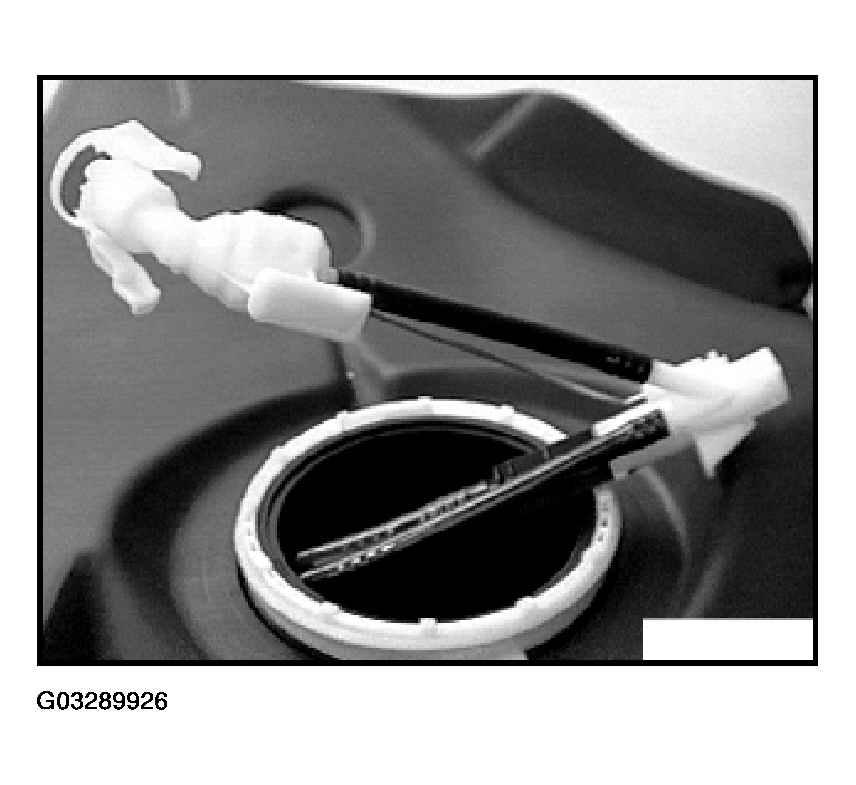

Fig 1: Removing Sucking Jet Pump From Fuel Tank

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Carefully insert line in sucking jet pump, do not bend.

It is absolutely essential to ensure that the line harness for the suction jet pump is correctly positioned in the fuel tank!

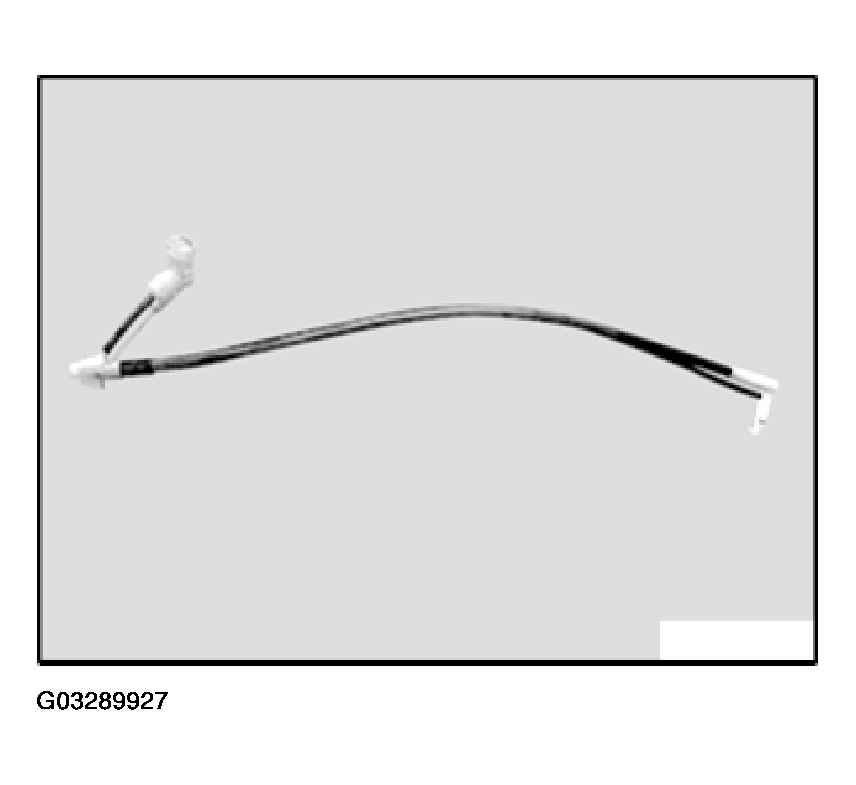

Fig 2: Identifying Line Harness For Suction Jet Pump

Courtesy of BMW OF NORTH AMERICA, INC.
