Fuel filling:

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Slide extraction hose of extractor unit approx. 40 cm into filler pipe.

Fill fuel from extractor unit.

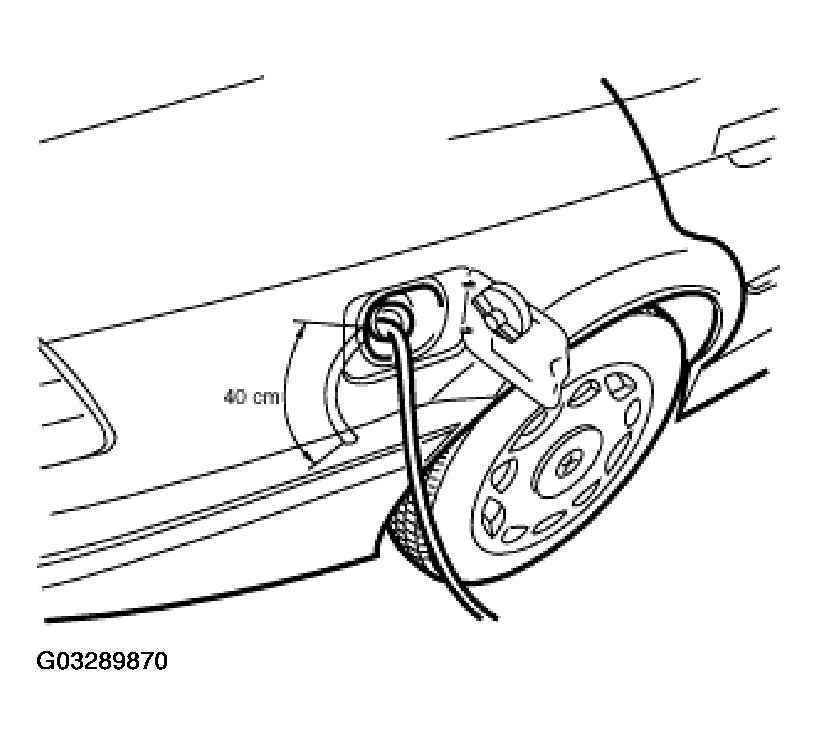

Fig 1: Sliding In Extraction Hose
G03289870Courtesy of BMW OF NORTH AMERICA, INC.
