Drawing off after fault in suction jet pump:

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Draw off right half of tank completely through filler pipe.

Remove sensor for fuel gauge (left). Refer to 16 12 001 Removing and installing / replacing fuel gauge sensor (left) .

Insert extraction hose through sensor opening in tank, fuel (also residual quantity) can be drawn off.

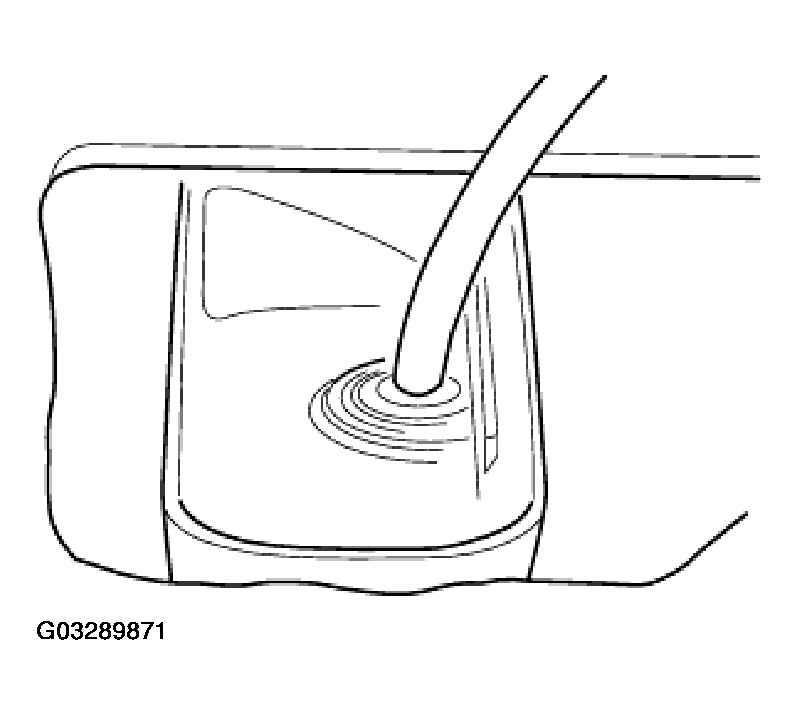

Fig 1: Inserting Extraction Hose
G03289871Courtesy of BMW OF NORTH AMERICA, INC.
