13 90 500 Replacing tank venting valve (N62)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Read out fault memory of DME control unit
Switch off ignition
Remove acoustic cover
Remove design cover

Installation location:

Tank venting valve is fitted at front on left side of cylinder head cover.

Unlock vent hose on intake air manifold and disconnect.

Unlock vent hose on tank venting valve (2) and disconnect.

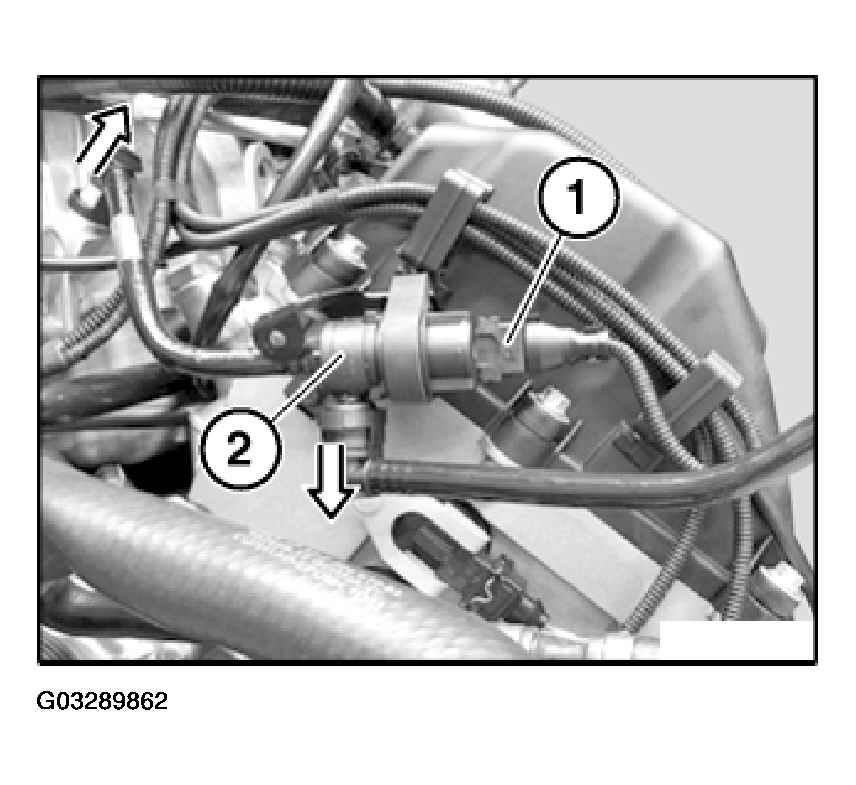

Fig 1: Removing Tank Venting Valve

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug (1) and remove.

Remove tank venting valve (2) from holder.

NOTE: Rectify faults.
Now clear the fault memory.
