11 23 031 Removing and installing / replacing vibration damper hub (N62 / N62TU): Installation:

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Check vibration damper hub and radial seal, replace if necessary.

Align groove in vibration damper hub to parallel key and install vibration damper hub.

Replace central bolt (1).

Tighten down central bolt (1) to joining torque.

Tightening torque 11 23 2AZ. Refer to ENGINE - TIGHTENING TORQUES .

Installation:

Fit special tool 11 3 460 on special tool 11 9 451.

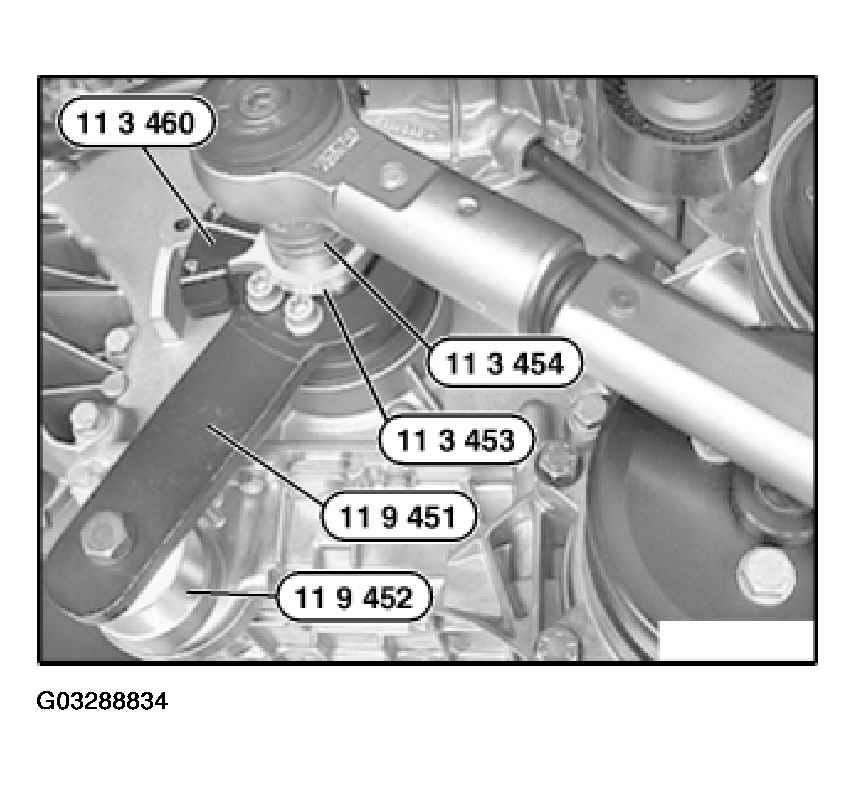

Fig 1: Fitting Special Tool (11 3 460) On Central Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Special tool 11 3 460 is magnetic.

Select 0° position and secure special tool 11 9 453 with clamping screw on socket (special tool 113 454).

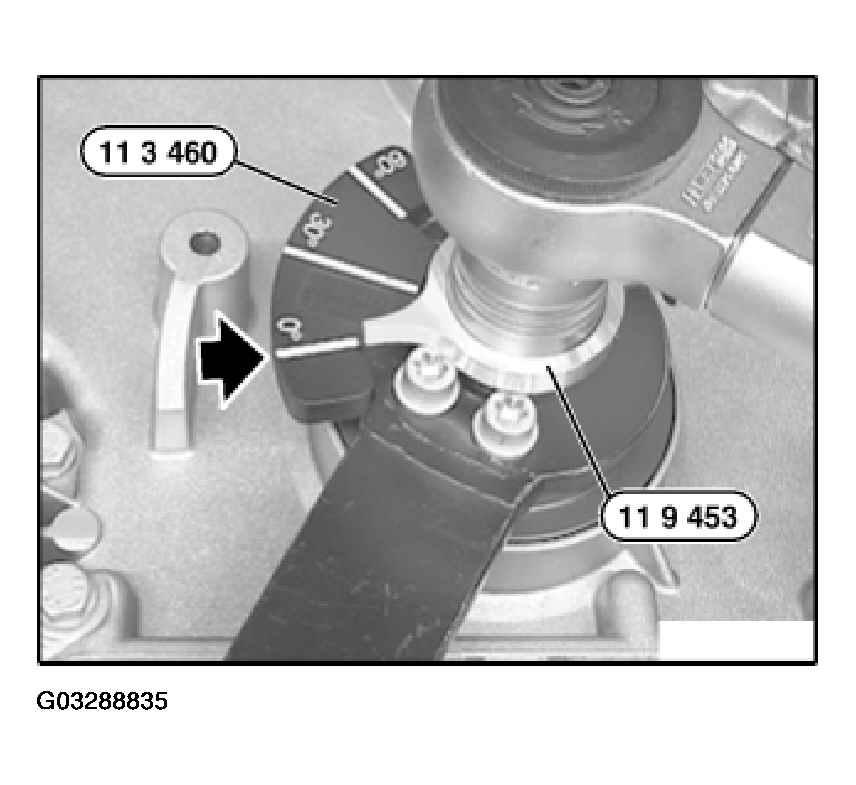

Fig 1: Securing Special Tool On Socket

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten the central screw with torsion angle.

Tightening torque 11 23 2AZ. Refer to ENGINE - TIGHTENING TORQUES .

Assemble engine.
