11 37 022 Removing and installing/replacing servomotor for left eccentric shaft (N62)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

(cylinder bank 5 to 8)

Remove acoustic cover.

Remove ignition coil cover.

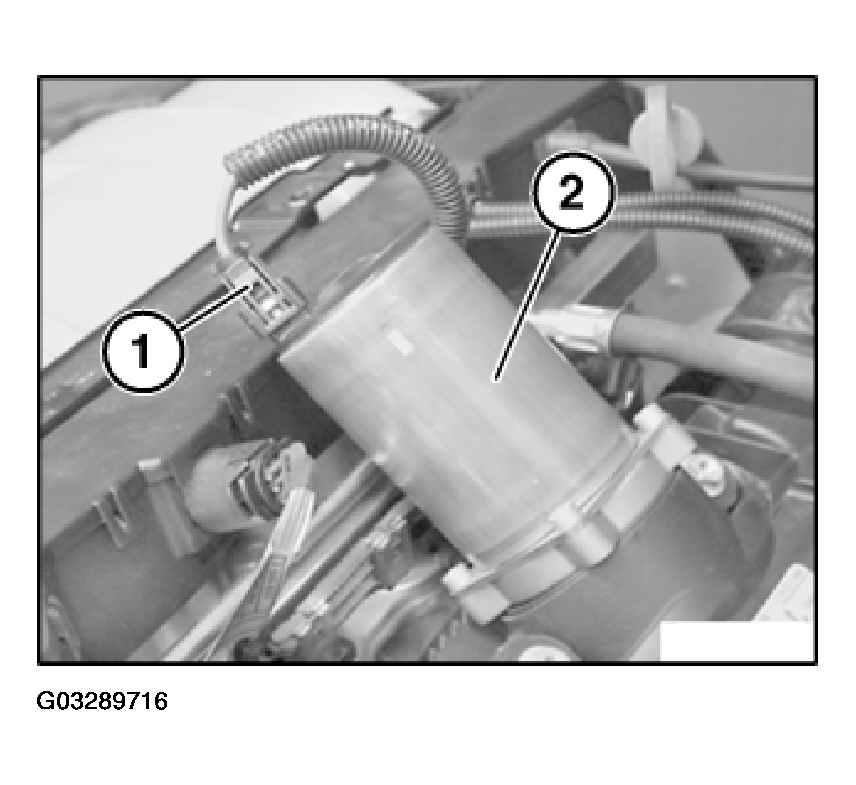

Unlock plug (1) on servomotor (2) and disconnect.

Fig 1: Unlocking Plug On Servomotor

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws.

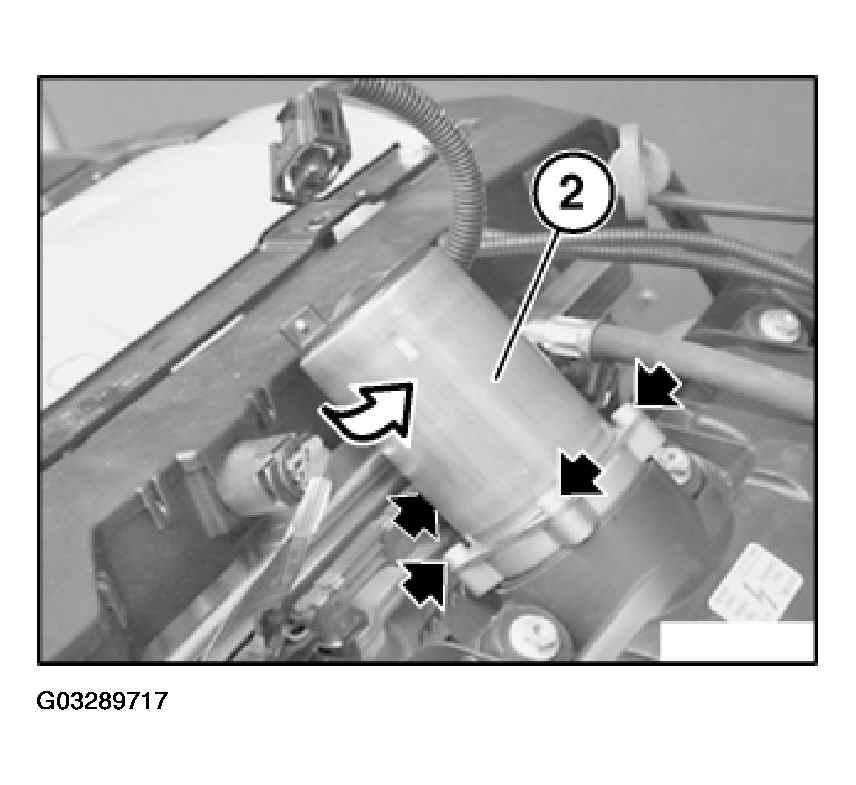

Rotate servomotor (2) until no longer engaged in spline teeth of eccentric shaft.

Fig 2: Rotating Servomotor

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace sealing ring on spacer.

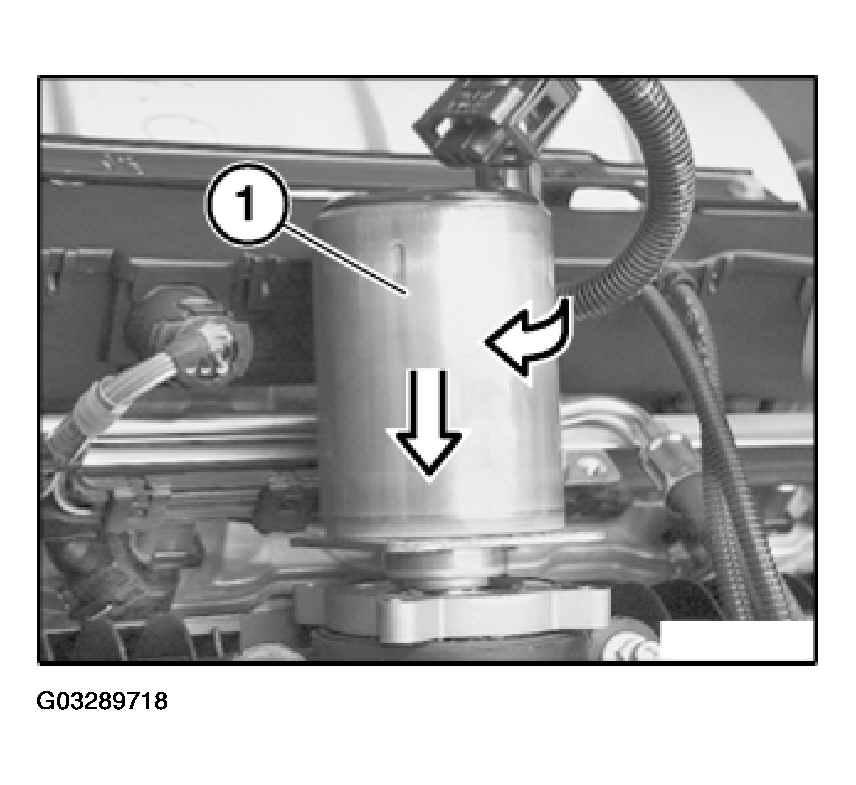

Install servomotor (1) and screw in up to spacer.

Fig 3: Installing Servomotor

Courtesy of BMW OF NORTH AMERICA, INC.

Rotate servomotor (1) into correct installation position.

Install and tighten down screws.

Installation:

Read out fault memory of control unit of Digital Motor Electronics (DME).

Check stored fault messages.

Rectify faults.

Now clear the fault memory.
