Necessary preliminary tasks:

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Read out fault memory of control unit of Digital Motor Electronics (DME).
Switch off ignition.
Remove design cover.
Unlock hose on tank venting valve and disconnect.

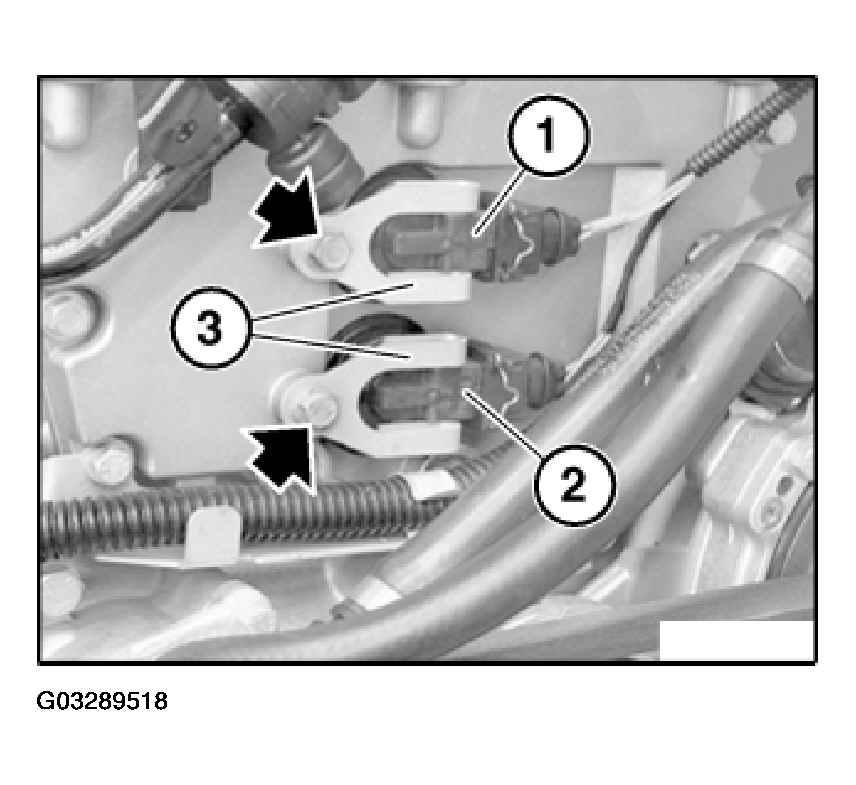

NOTE: Solenoid valve (1) controls adjusting unit on inlet side.
Solenoid valve (2) controls adjusting unit on exhaust side.

Fig 1: Locating Solenoid Valves

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug of solenoid valves (1 and 2) and disconnect.

Release screws and remove holder (3). Pull out solenoid valves (1 and 2).

Installation:

Check holder (3) for deformation; replace if necessary.

Installation:

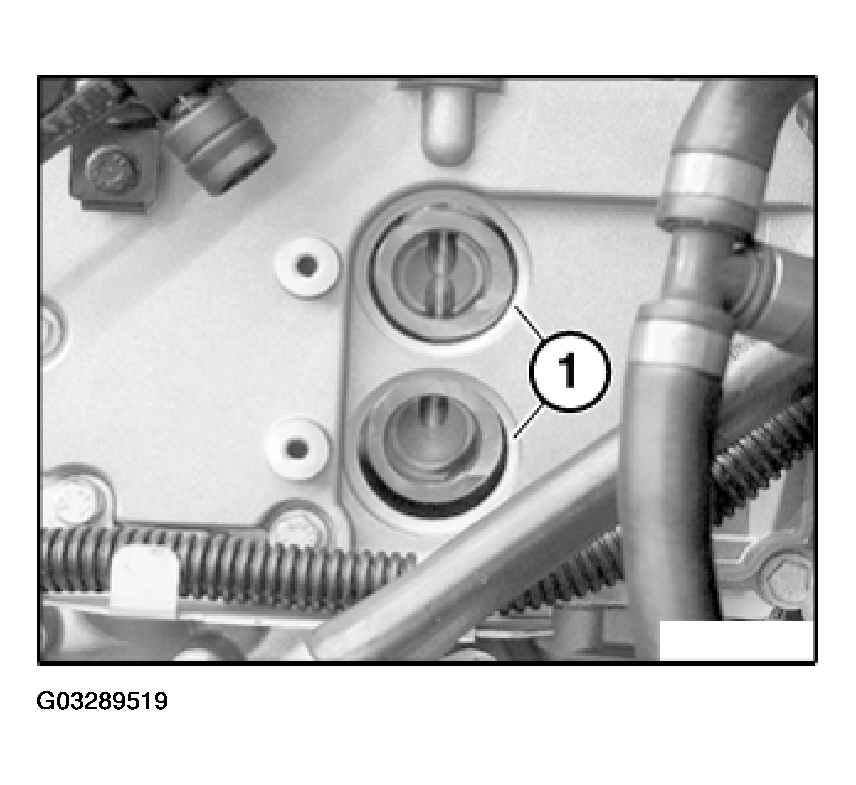

Clean sealing faces (1) on cylinder head.

Fig 2: Cleaning Sealing Faces

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

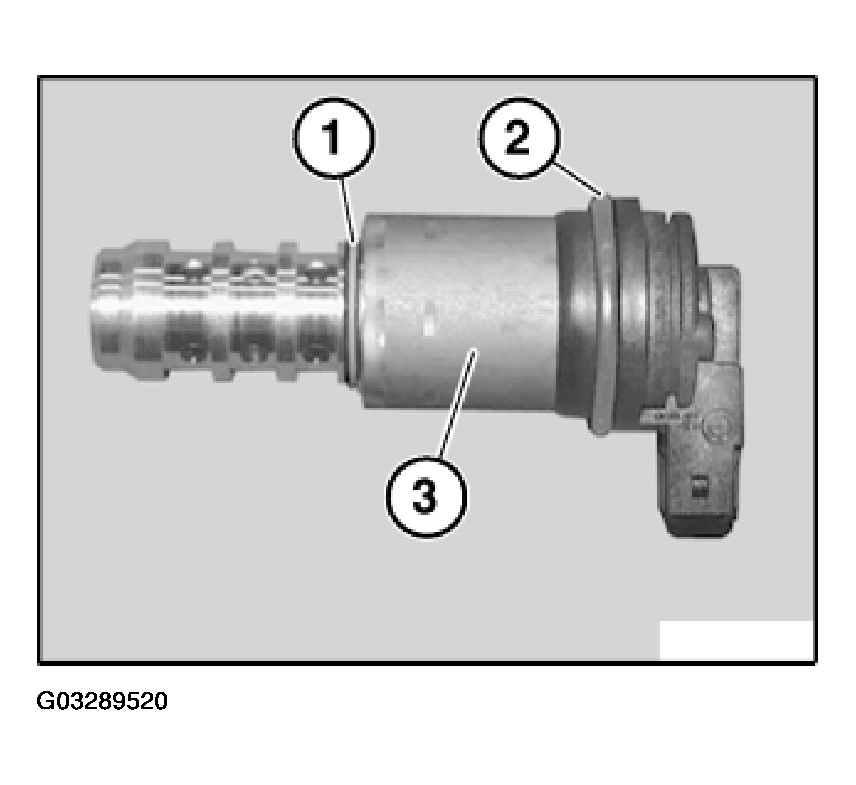

Replace O-rings (1 and 2) on solenoid valve (3) and lubricate.

Fig 3: Identifying O-Rings On Solenoid Valve

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

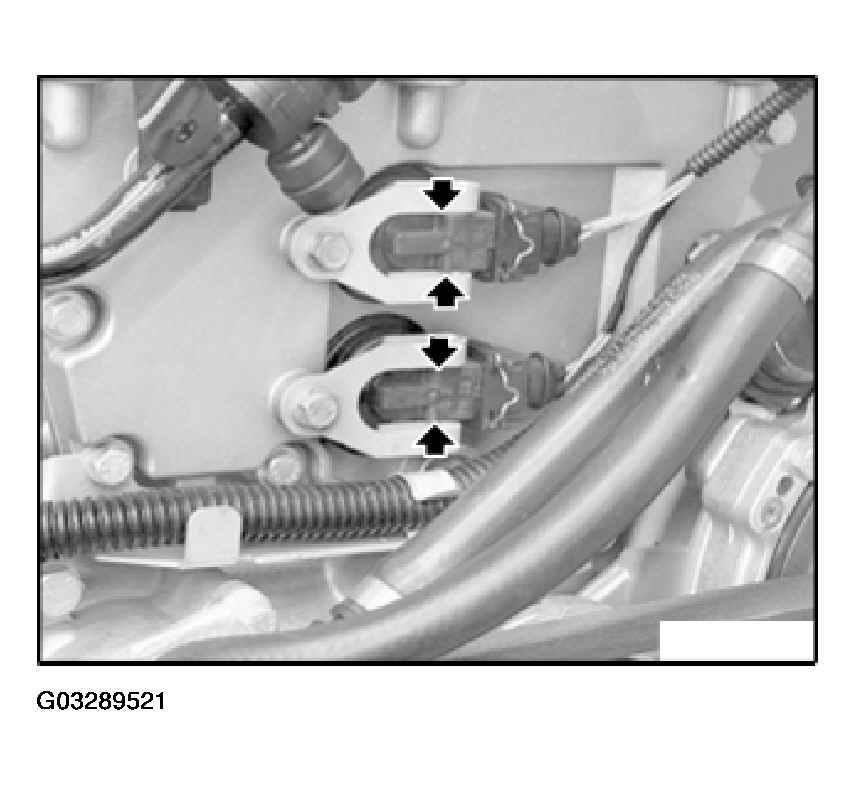

Press in solenoid valve as far as it will go.

Fig 4: Pressing In Solenoid Valve

Courtesy of BMW OF NORTH AMERICA, INC.

Make sure holders are in correct installation positions.

Install and tighten down screws.

Now clear the fault memory.
