11 36 048 Removing and installing/replacing inlet and exhaust adjustment units on right side (N62): Installation

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Installation of inlet and exhaust adjustment units is described separately from removal.

CAUTION: Risk of mixing up parts.

The inlet and exhaust adjustment units are different.

Mixing up the inlet and exhaust adjustment units will cause damage to the engine.

  1. Inlet adjustment unit (1) is marked with EIN and IN
  2. Exhaust adjustment unit (2) is marked with AUS and EX

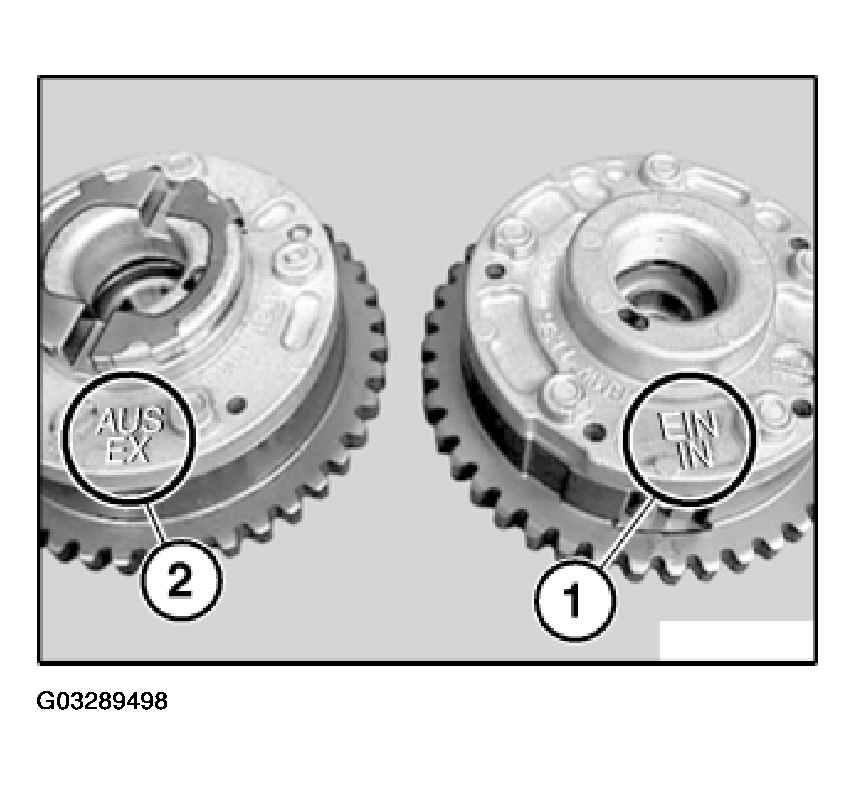

    Fig 1: Identifying Inlet And Exhaust Adjustment Units
    G03289498Courtesy of BMW OF NORTH AMERICA, INC.
NOTE: The exhaust adjustment unit on cylinder bank 1 to 4 also has a metal clip (3) for driving the vacuum pump.

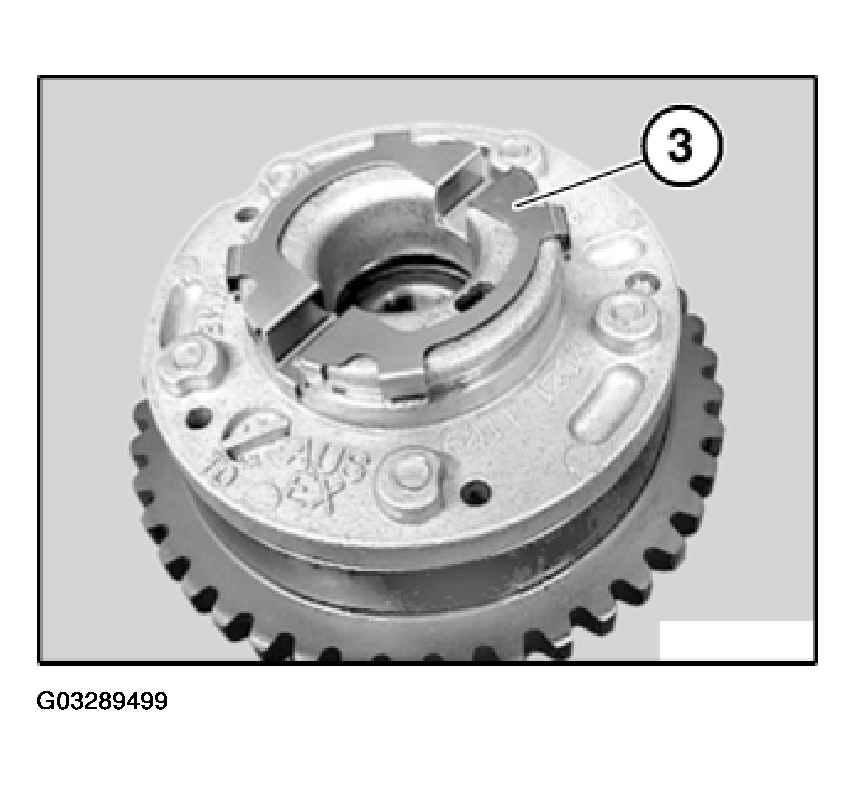

Fig 2: Locating Metal Clip
G03289499Courtesy of BMW OF NORTH AMERICA, INC.
NOTE: Position of exhaust adjustment unit (2) to timing chain can be freely selected.

Pull timing chain up.

Feed exhaust adjustment unit (2) into timing chain and fit onto exhaust camshaft.

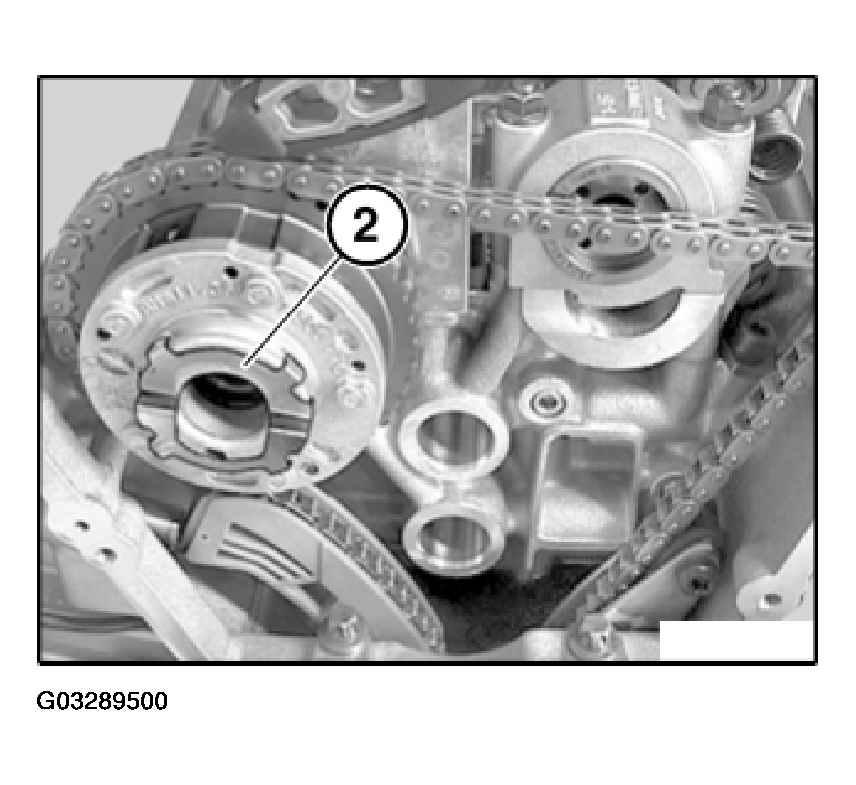

Fig 3: Installing Exhaust Adjustment Unit
G03289500Courtesy of BMW OF NORTH AMERICA, INC.

Replace screw.

Install screw on exhaust adjustment unit.

Tighten screw without play and then slacken off again by half a turn.

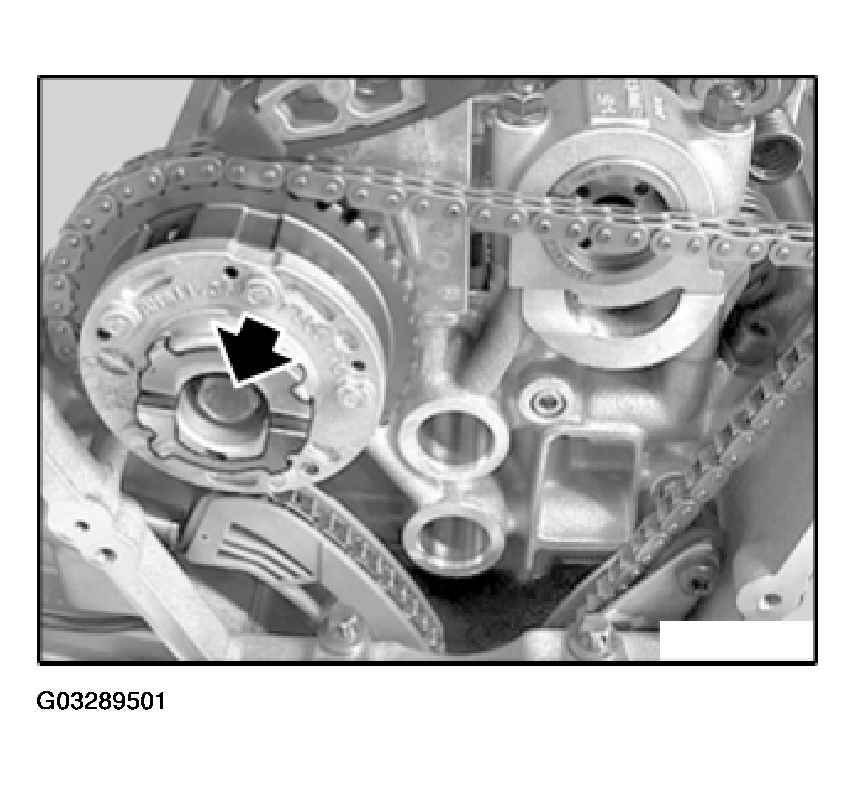

Fig 4: Installing Screw On Exhaust Adjustment Unit
G03289501Courtesy of BMW OF NORTH AMERICA, INC.
NOTE: Position of inlet adjustment unit (1) to timing chain can be freely selected.

Pull timing chain up.

Feed inlet adjustment unit (1) into timing chain.

Fig 5: Installing Inlet Adjustment Unit
G03289502Courtesy of BMW OF NORTH AMERICA, INC.

Press tensioner rail (3) back and fit inlet adjustment unit (1) onto inlet camshaft.

NOTE: If tensioner rail (3) cannot be pressed back far enough to enable fitting of inlet adjustment unit (1):
Slacken off chain tensioner by approx. three turns.
Fit inlet adjustment unit (1).
Replace and insert screw on inlet adjustment unit (1).
Tighten down chain tensioner.
Tightening torque of chain tensioner, 11 31 8 AZ. Refer to ENGINE - TIGHTENING TORQUES .

Tighten screw on inlet adjustment unit without play and then slacken off again by a half turn.

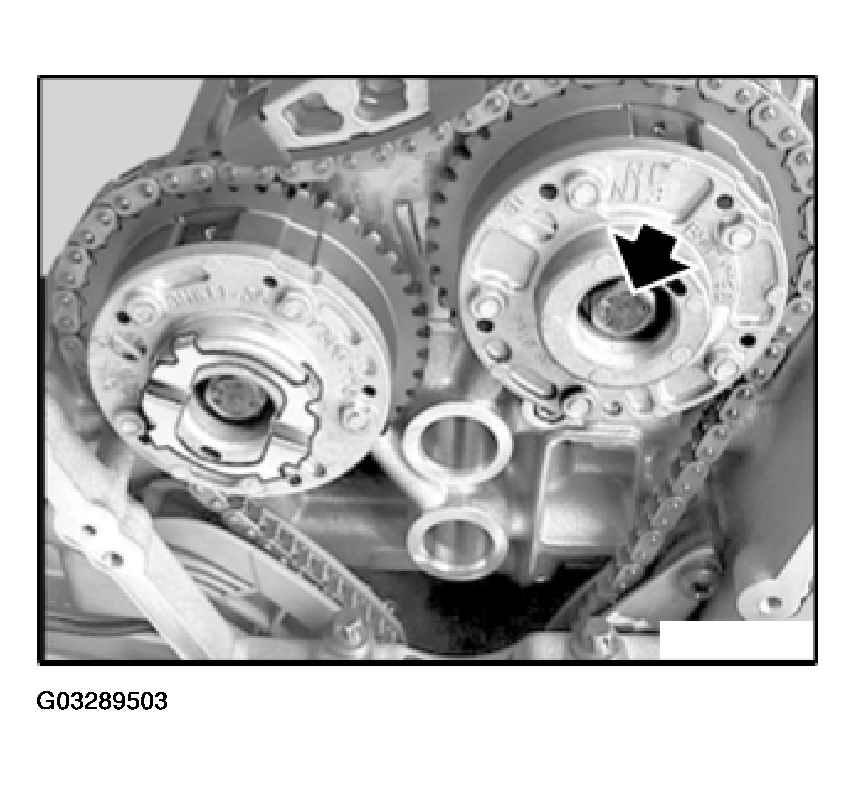

Fig 6: Tightening Screw On Inlet Adjustment Unit
G03289503Courtesy of BMW OF NORTH AMERICA, INC.

Get special tool kit 11 9 460 ready for securing camshafts.

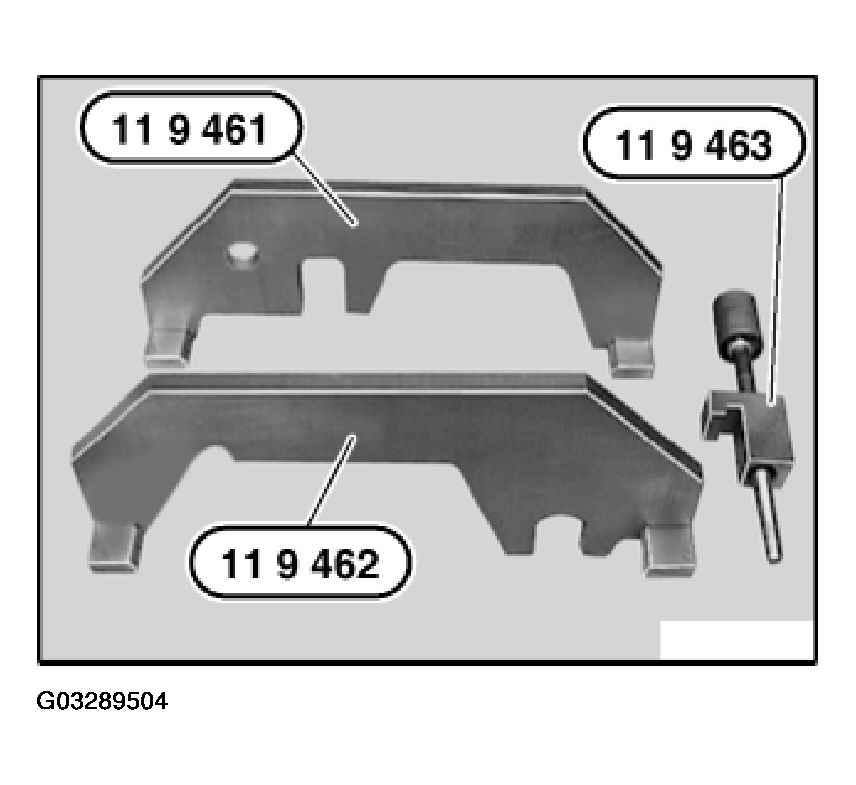

Fig 7: Identifying Special Tools
G03289504Courtesy of BMW OF NORTH AMERICA, INC.
NOTE: Special tool 11 9 461 for securing inlet camshaft.
Special tool 11 9 462 for securing exhaust camshaft.
Special tool 11 9 463 (holder with screw).

Place special tool 11 9 461 on inlet camshaft and align inlet camshaft so that special tool 11 9 461 rests without a gap on cylinder head.

Fig 8: Aligning Inlet Camshaft
G03289505Courtesy of BMW OF NORTH AMERICA, INC.

Fit special tool 11 9 463, secure screw (1) in thread for oil line and tighten down by hand.

Fig 9: Fitting Special Tool
G03289506Courtesy of BMW OF NORTH AMERICA, INC.
CAUTION: Make sure screws of inlet and exhaust adjustment units have been slackened off.

Crank engine at central bolt from 45° before TDC position in direction of rotation to firing TDC position.

Secure vibration damper with special tool 11 9 190 in firing TDC position of 1st cylinder.

Fig 10: Securing Vibration Damper
G03289507Courtesy of BMW OF NORTH AMERICA, INC.
NOTE: When tightening down screw (1), grip camshaft at hexagon head.

Tighten down screw (1) of inlet adjustment unit.

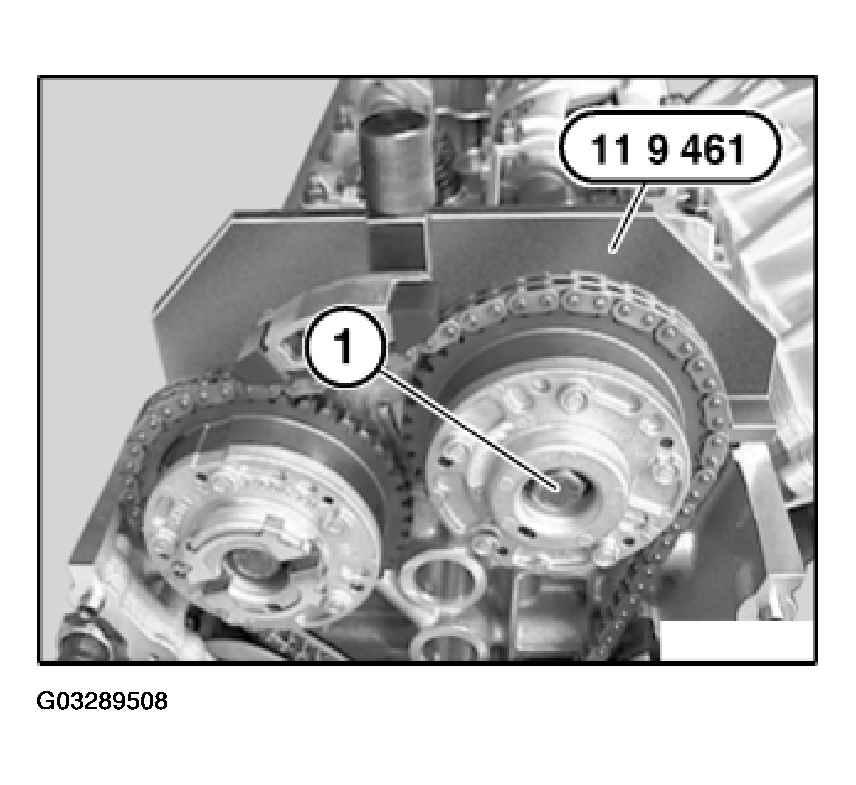

Fig 11: Tightening Down Screw Of Inlet Adjustment Unit
G03289508Courtesy of BMW OF NORTH AMERICA, INC.

Tightening torque, 11 36 16AZ .

Release screw (1), remove special tools 11 9 463 and 11 9 461 from inlet camshaft.

Fig 12: Releasing Screw
G03289509Courtesy of BMW OF NORTH AMERICA, INC.

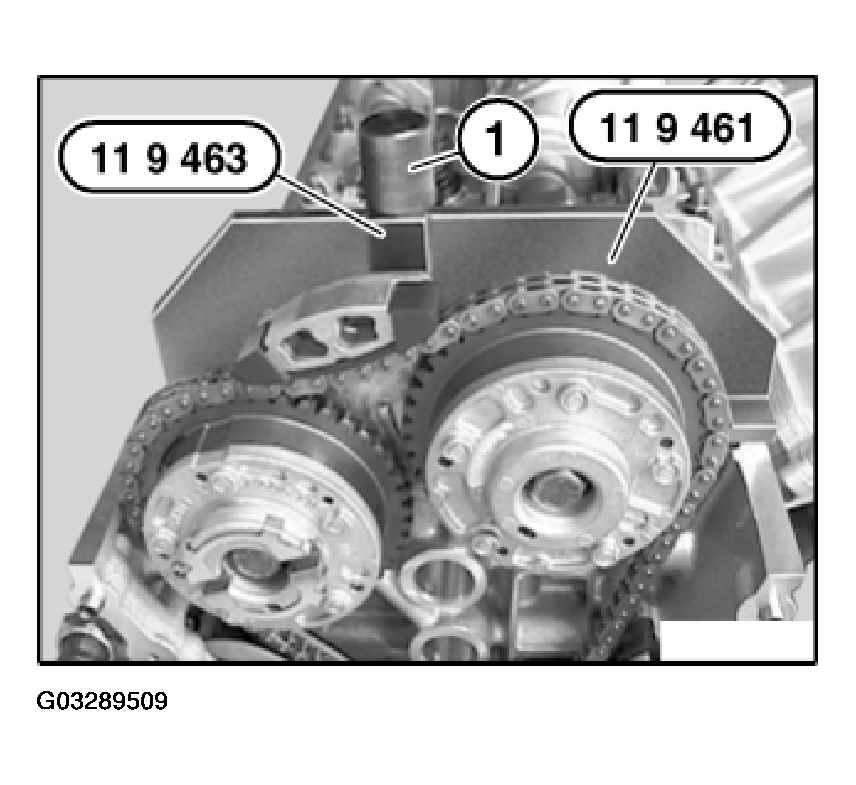

Place special tool 11 9 462 on exhaust camshaft and align exhaust camshaft so that special tool 11 9 462 rests without a gap on cylinder head.

Fig 13: Aligning Exhaust Camshaft
G03289510Courtesy of BMW OF NORTH AMERICA, INC.

Fit special tool 11 9 463, secure screw (1) in thread for oil line and tighten down by hand.

Fig 14: Fitting Special Tool
G03289511Courtesy of BMW OF NORTH AMERICA, INC.
NOTE: When tightening down screw (2), grip camshaft at hexagon head.

Tighten down screw (2) of exhaust adjustment unit.

Fig 15: Tightening Down Screw
G03289512Courtesy of BMW OF NORTH AMERICA, INC.

Tightening torque, 11 36 16AZ .

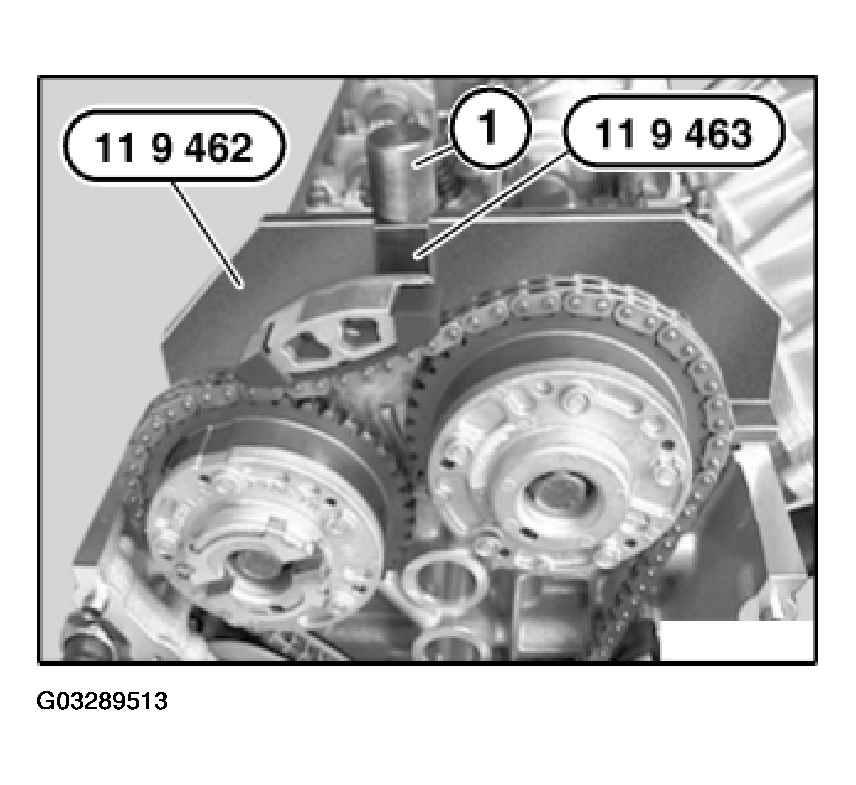

Release screw (1), remove special tools 11 9 463 and 11 9 462 from exhaust camshaft.

Fig 16: Releasing Screw
G03289513Courtesy of BMW OF NORTH AMERICA, INC.

Remove special tool 11 9 190.

Crank engine at central bolt twice in direction of rotation until engine returns to firing TDC position of 1st cylinder.

Secure vibration damper with special tool 11 9 190 in firing TDC position of 1st cylinder.

Fig 17: Securing Vibration Damper
G03289514Courtesy of BMW OF NORTH AMERICA, INC.

Place special tool 11 9 461 on inlet camshaft and check timing.

NOTE: The timing is correctly adjusted when special tool 11 9 461 rests flat on the cylinder head or protrudes by up to 0.5 mm to the exhaust side.

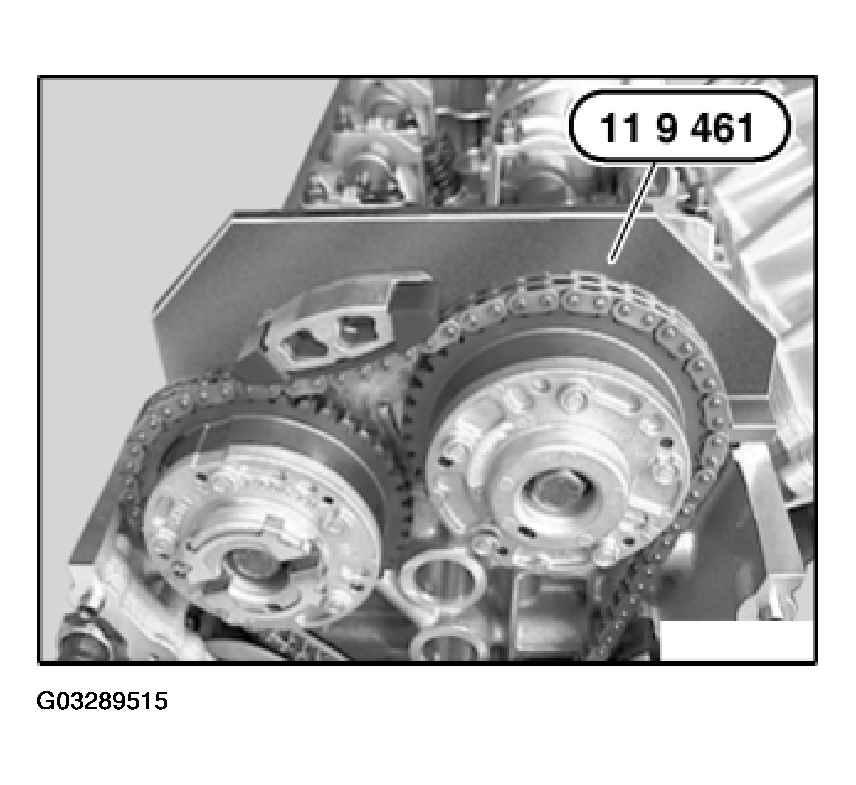

Fig 18: Checking Timing On Inlet Camshaft
G03289515Courtesy of BMW OF NORTH AMERICA, INC.

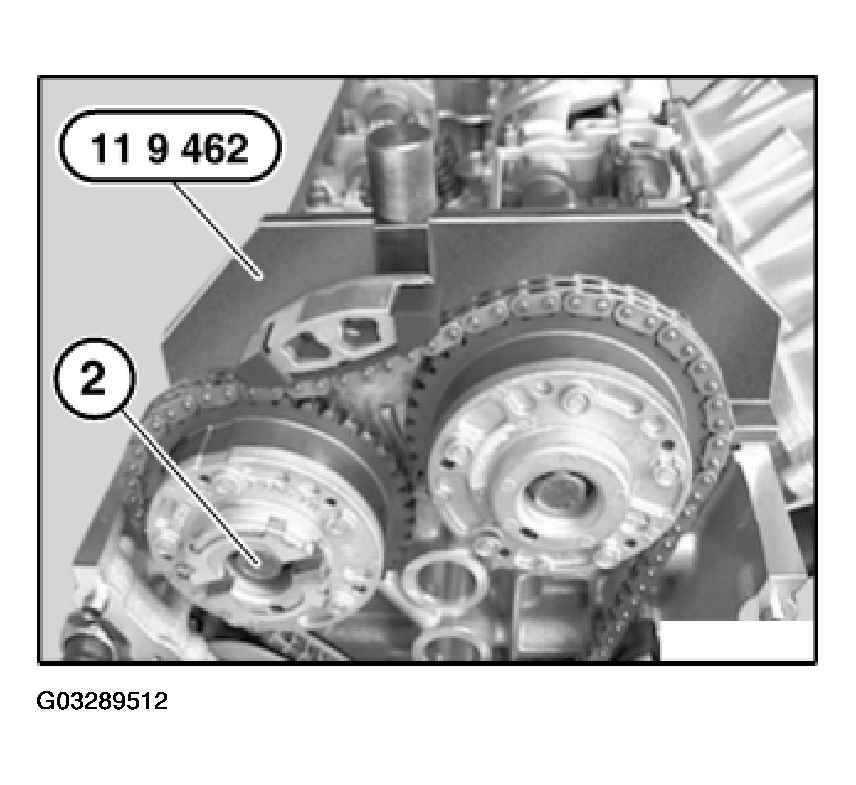

Place special tool 11 9 462 on exhaust camshaft and check timing.

NOTE: The timing is correctly adjusted when special tool 11 9 462 rests flat on the cylinder head or protrudes by up to 0.5 mm to the exhaust side.

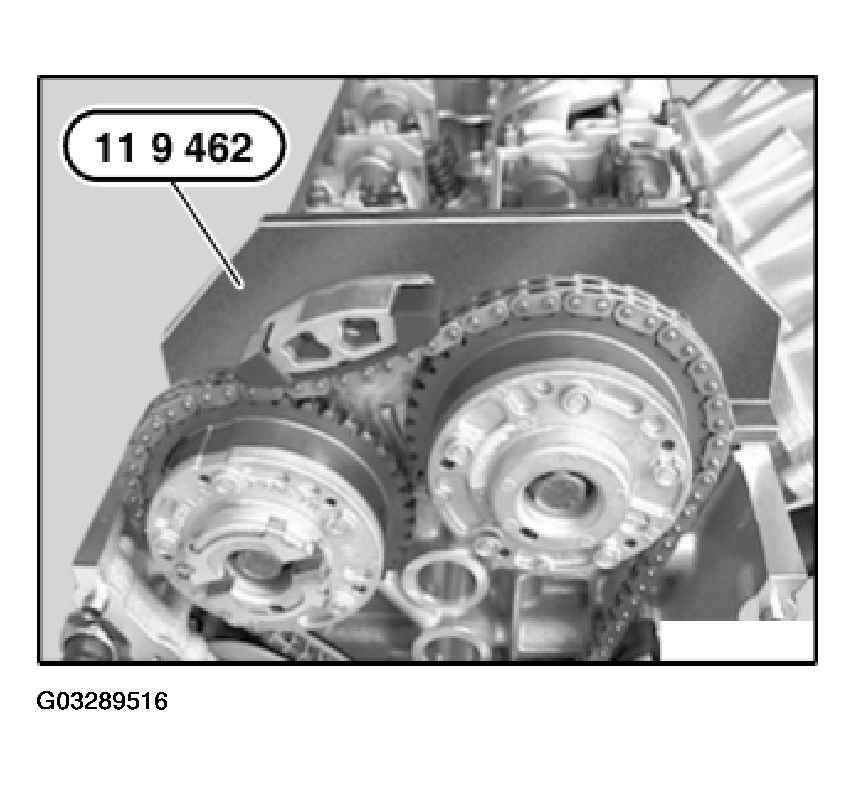

Fig 19: Checking Timing On Exhaust Camshaft
G03289516Courtesy of BMW OF NORTH AMERICA, INC.

Remove all special tools.

CAUTION: Screw (1) is a special screw and must not be replaced with a normal M8 screw.

Clip oil line (3) into retainers (2).

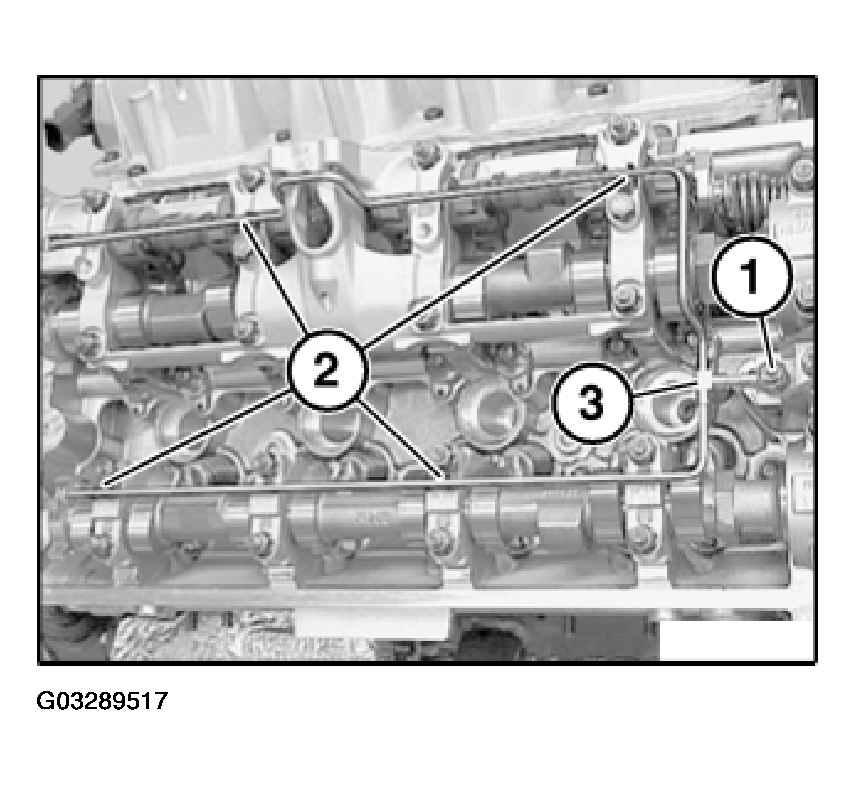

Fig 20: Clipping Oil Line Into Retainers
G03289517Courtesy of BMW OF NORTH AMERICA, INC.

Insert screw (1) and tighten down.

Assemble engine.
