11 33 517 Removing and installing/replacing rocker arms on right inlet side (N62 from 9/03): Installation

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Installation of rocker arms is described separately from removal.

Clean all bearings and cams of inlet camshaft and lubricate with engine oil.

Ends of compression rings (1) point upwards.

Fig 1: Identifying Compression Rings
G03289194Courtesy of BMW OF NORTH AMERICA, INC.

Make sure compression rings (1) are engaged at ends.

Install rocker arms (1) on inlet side.

Fig 2: Installing Rocker Arms On Inlet Side
G03289195Courtesy of BMW OF NORTH AMERICA, INC.
IMPORTANT: Rocker arms (1) slip slightly when bearing bracket is fitted.

Make sure rocker arms (1) are secured as illustrated on hydraulic valve clearance compensating elements and on valves.

Align rocker arms (1) straight.

Remove special tool 1 9 473.

Remove bearing bracket (1) from special tool 11 9 470.

Fig 3: Removing Bearing Bracket From Special Tool
G03289196Courtesy of BMW OF NORTH AMERICA, INC.
IMPORTANT: Do not tilt bearing bracket (1).

Lower bearing bracket (1) from above and carefully bring into contact with cylinder head.

Fig 4: Lowering Bearing Bracket
G03289197Courtesy of BMW OF NORTH AMERICA, INC.

Insert nuts and tighten by hand without play.

IMPORTANT: Make sure none of the intermediate levers or rocker arms have slipped out.

Tighten down nuts from inside to outside.

Tightening torque 11 31 1AZ. Refer to ENGINE - TIGHTENING TORQUES .

IMPORTANT: Do not mix up the camshaft bearing covers of cylinders 1 to 4 and 5 to 8.

Fit bearing cap L E1 in such a way that marking is legible from inlet side.

Fig 5: Identifying Bearing Cap Marking
G03289198Courtesy of BMW OF NORTH AMERICA, INC.

Install nuts and tighten down.

Tightening torque 11 31 1AZ. Refer to ENGINE - TIGHTENING TORQUES .

Rotate inlet camshaft at hexagon head against direction of rotation until cam on 1st cylinder points downwards at an angle as shown in illustration.

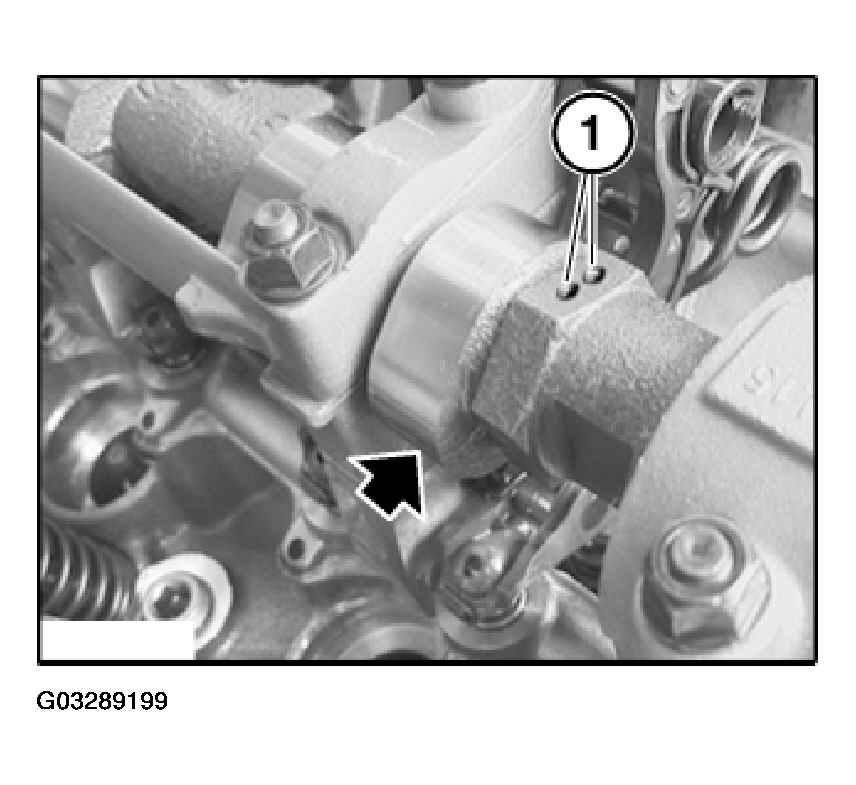

Fig 6: Identifying Inlet Camshaft Hexagon Drive Marking Position
G03289199Courtesy of BMW OF NORTH AMERICA, INC.
NOTE: The marking (1) on the hexagon drive of the inlet camshaft faces upwards.

Install inlet and exhaust adjustment unit on right side. Refer to 11 36 048 Removing and installing/replacing inlet and exhaust adjustment units on right side (N62) .

Install spark plugs on cylinder bank 1 to 4.

Install right cylinder head cover. Refer to 11 12 006 Removing and installing / sealing right cylinder head cover (N62 / N62TU) .

Install ignition coils on cylinder bank 1 to 4.

Install servomotor for right eccentric shaft. Refer to 11 37 024 Removing and installing/replacing servomotor for right eccentric shaft (N62) .

Assemble engine.
