11 25 530 Removing and installing/replacing all pistons (N62): Removal
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.
Removal of pistons is described separately from installation. Assembly sequence for removal and installation is different.
Mount engine on assembly stand.
Remove both cylinder heads.
Unscrew oil sump.
Remove oil pump.
CAUTION:
Re-install piston, connecting rod and bearing shells back in the same position and in the same installation location.
Conrods and conrod bearing caps are denoted with the same pairing letters, do not mix them up.
Conrods and conrod bearing caps are denoted with the same pairing letters, do not mix them up.

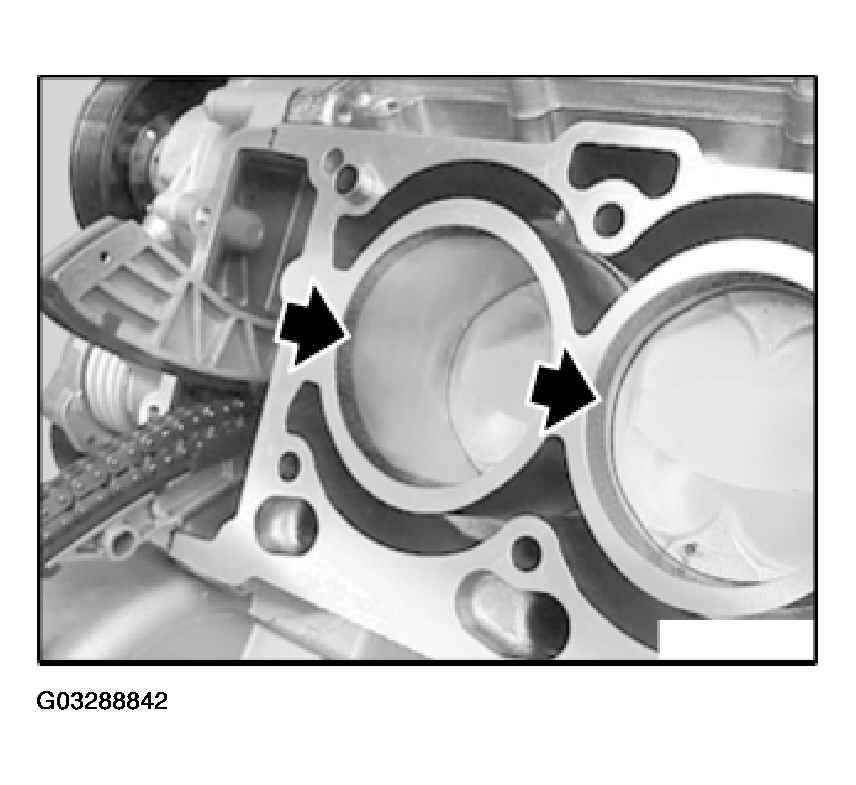

In event of heavy oil carbon residue:
Carefully remove oil carbon residue from cylinder wall.
CAUTION:

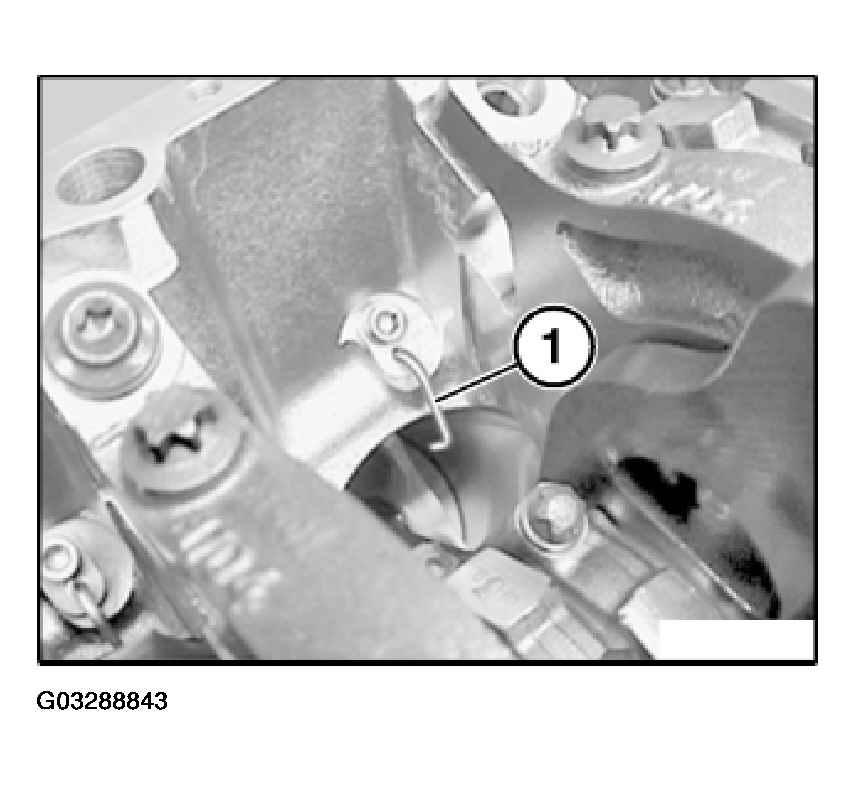

When removing and installing pistons, make sure piston cooling spray nozzles (1) are not damaged.

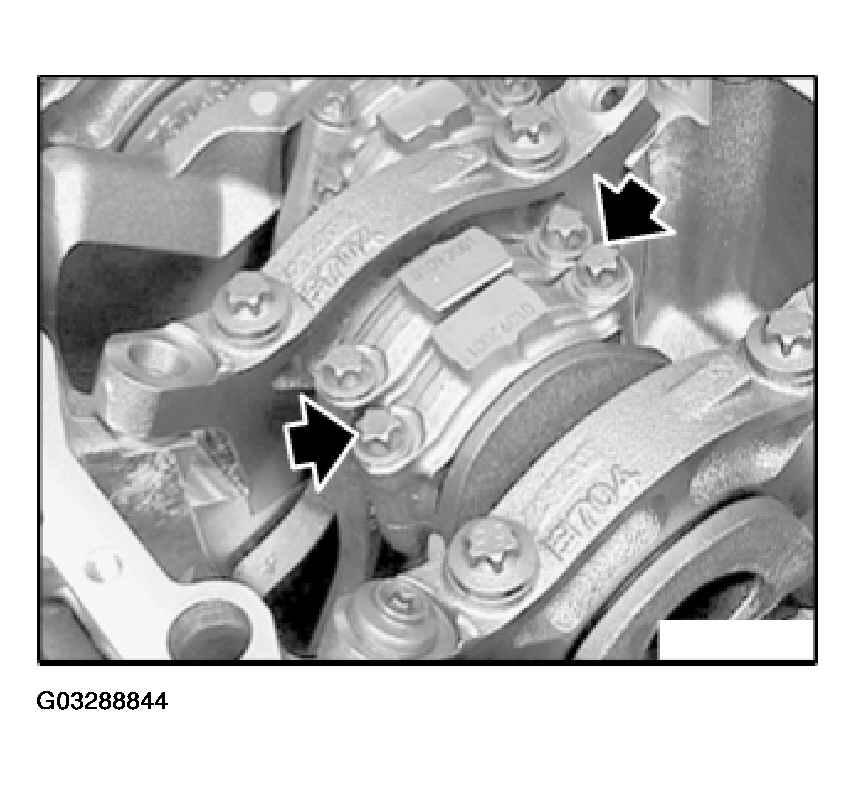

Remove connecting-rod cover.
NOTE:
Conrods and conrod bearing caps are denoted with the same pairing letters.
Set down conrod bearing caps in order.
Set down conrod bearing caps in order.

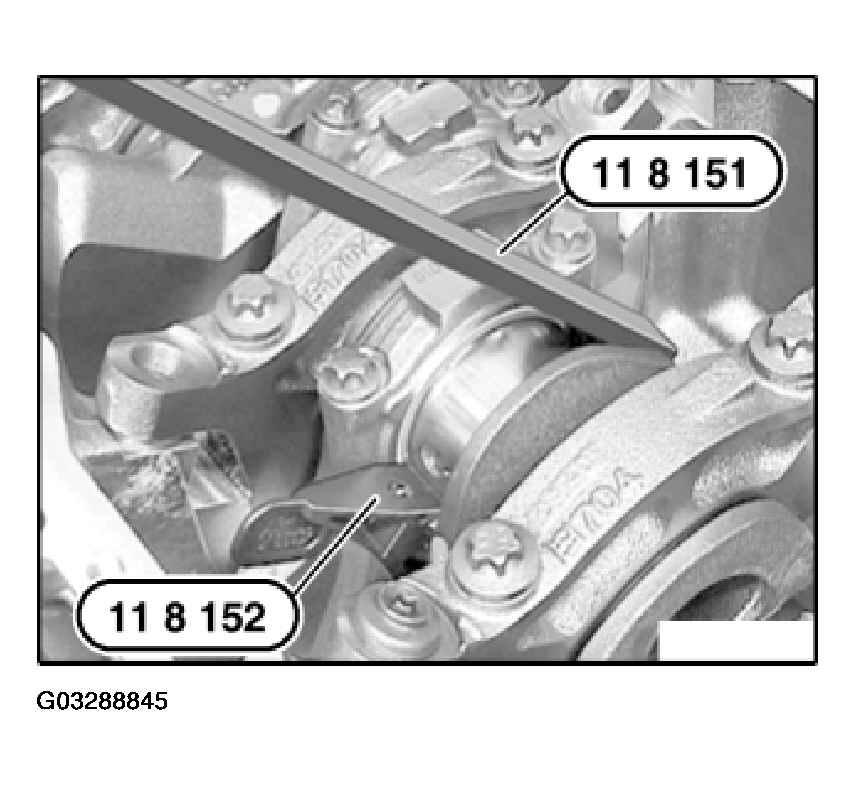

Insert special tools 11 8 151 and 11 8 152 in conrod. Remove connecting rod with piston from cylinder-head side.
CAUTION:
Piston and piston bolts are paired and must not be fitted individually.

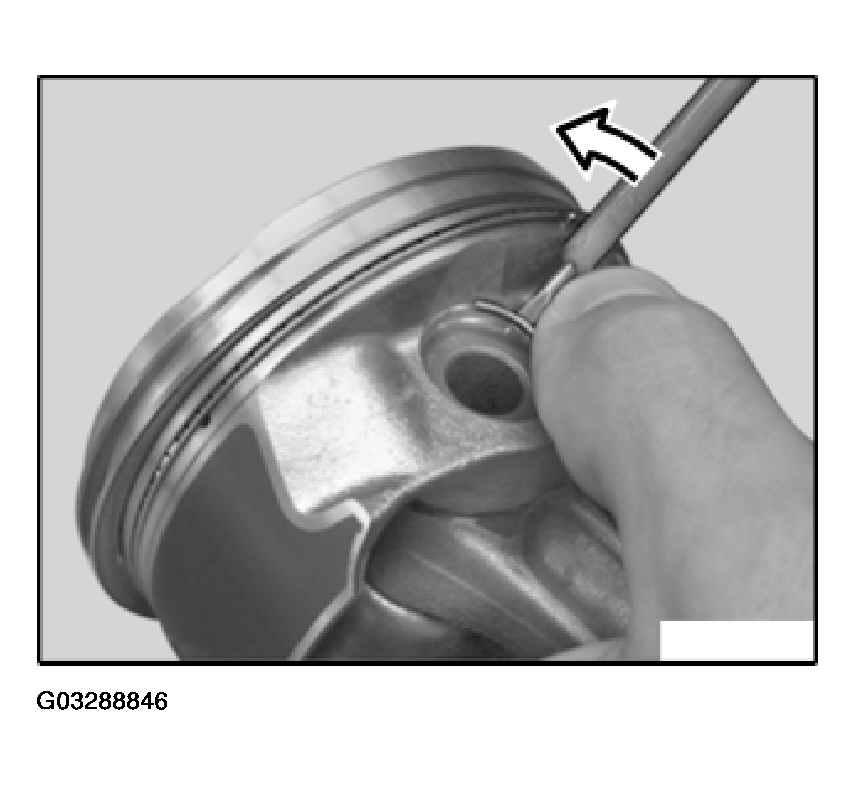

Lift out retaining ring and press out piston pin.
