11 14 080 Removing and installing top left timing case cover (N62): Installation:

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

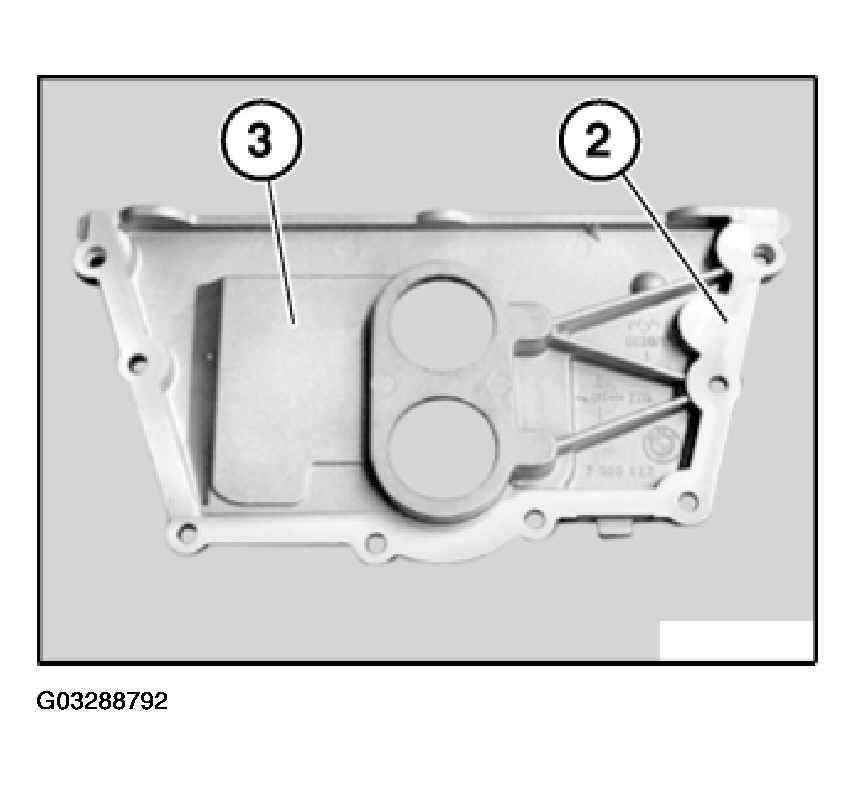

Free sealing face (2) on timing case cover (3) of seal debris and clean.

Fig 1: Cleaning Sealing Face

Courtesy of BMW OF NORTH AMERICA, INC.

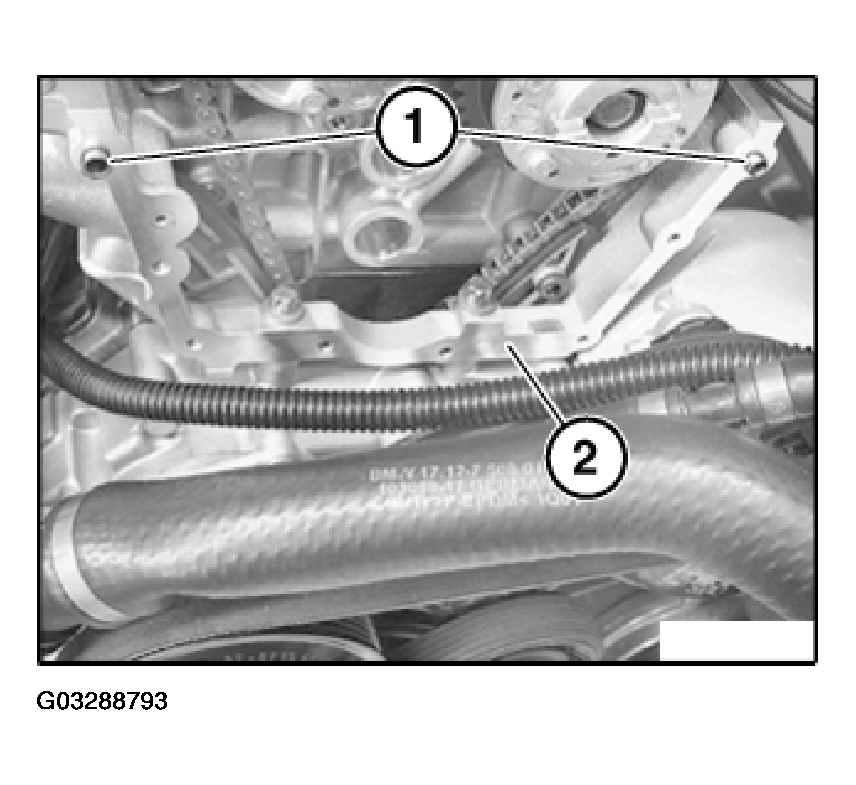

Check adapter sleeves (1) for damage and correct installation position; replace if necessary.

Fig 1: Checking Adapter Sleeves

Courtesy of BMW OF NORTH AMERICA, INC.

Free sealing face (2) of seal debris and clean.

Installation:

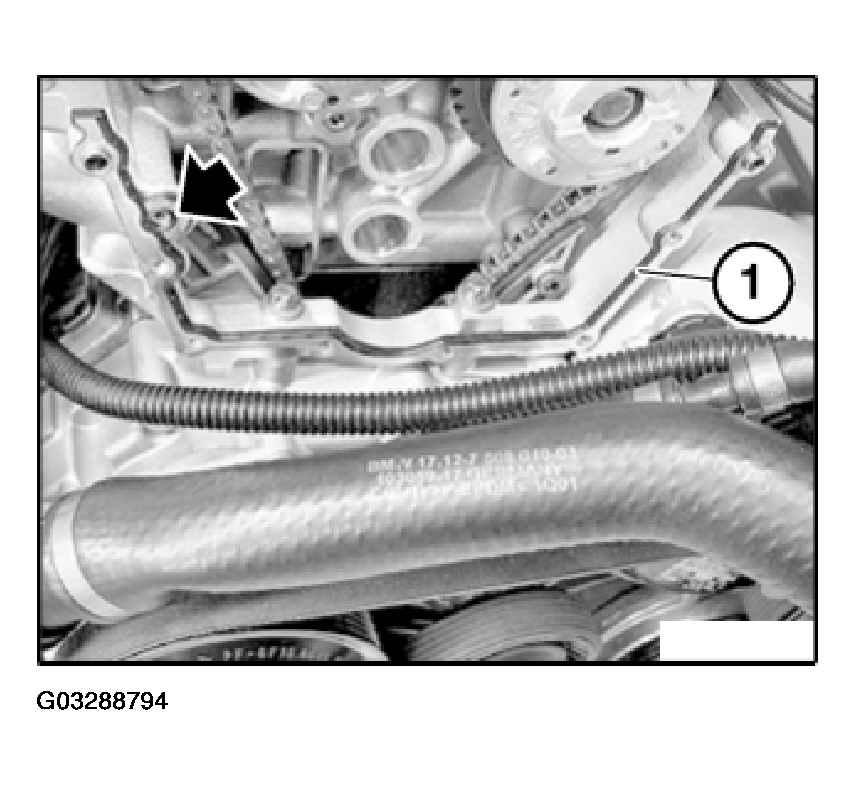

Replace gasket (1) and check for correct installation position.

Fig 2: Replacing Gasket

Courtesy of BMW OF NORTH AMERICA, INC.
