Vehicles with Dynamic Drive only:

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

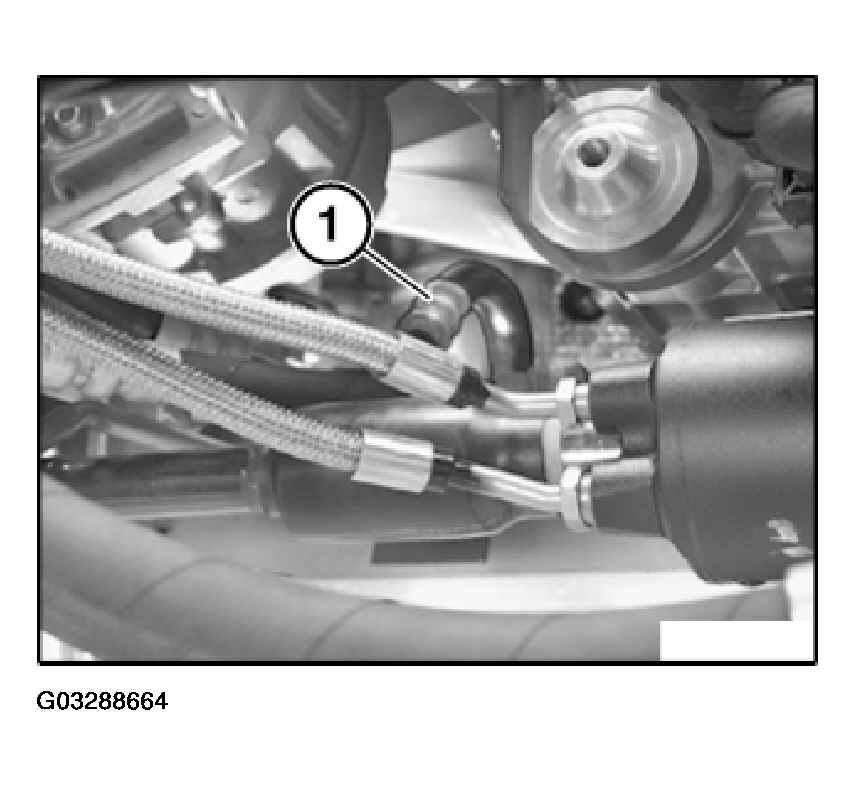

Unlock and detach hydraulic line (1).

Fig 1: Unlocking Hydraulic Line

Courtesy of BMW OF NORTH AMERICA, INC.

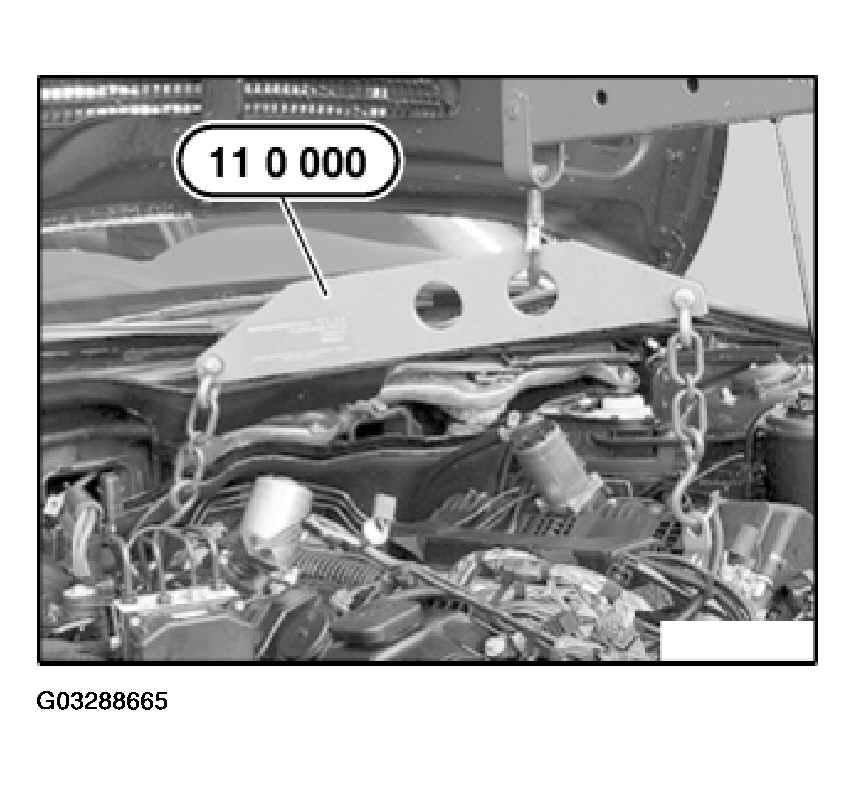

Suspend engine off-center from special tool 11 0 000.

Fig 2: Suspending Engine

Courtesy of BMW OF NORTH AMERICA, INC.

Release engine mounts on left and right from above.

Protect assembly compartment and hydraulic lines against damage.

Installation:

Observe specified tightening torque and safety precautions in all work steps.
