11 12 729 Checking cylinder head for water leaks (N62)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

11 9 430
11 9 431
11 9 432
11 9 433

(cylinder head dismantled)

Have special tool kit 11 9 430 ready.

NOTE: Special tool kit 11 9 430 can be used for cylinder bank 1 to 4 and cylinder bank 5 to 8.

Place special tool 11 9 431 on cylinder head sealing surface, insert screws (special tool 11 9 433) and tighten down.

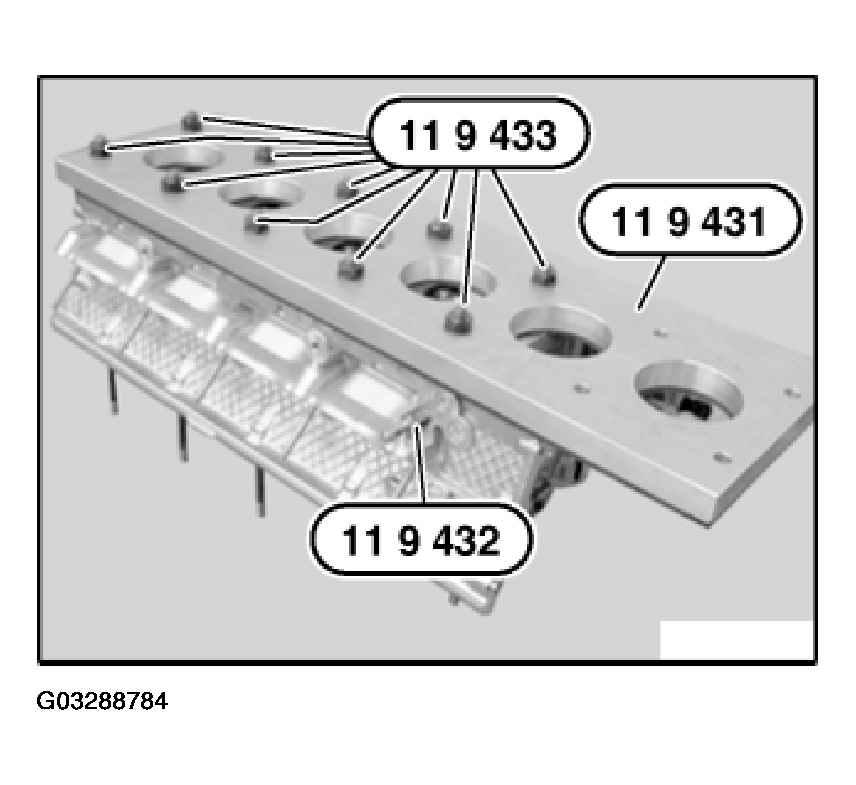

Fig 1: Placing Special Tool On Cylinder Head Sealing Surface

Courtesy of BMW OF NORTH AMERICA, INC.

Seal coolant opening with special tool 11 9 432 and tighten down.

Connect compressed air hose (1) to pressure gauge.

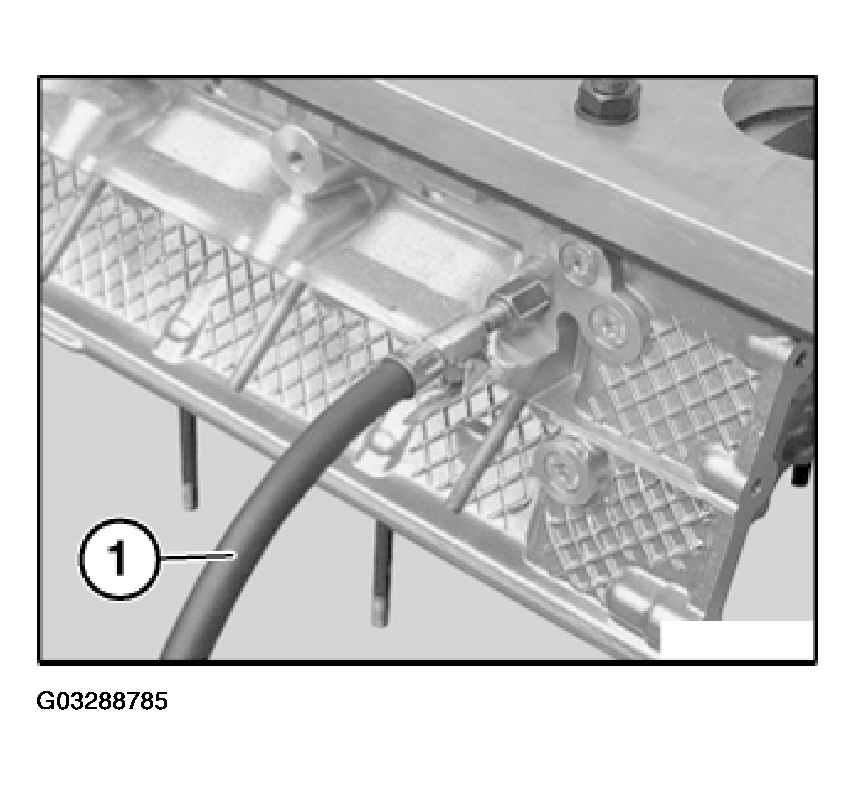

Fig 2: Connecting Compressed Air Hose To Pressure Gauge

Courtesy of BMW OF NORTH AMERICA, INC.

Immerse cylinder head in a water bath. Inspection pressure 4.5 bar.

Check cylinder head for escaping air (cracks).

NOTE: If necessary, soften the bath water with a cleaning agent.
