11 12 106 Removing and installing right cylinder head (N62 to 9 / 03): Removal

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Removal of cylinder head is described separately from installation.

Remove inlet and exhaust adjustment unit on right side. Refer to 11 36 048 Removing and installing/replacing inlet and exhaust adjustment units on right side (N62) .

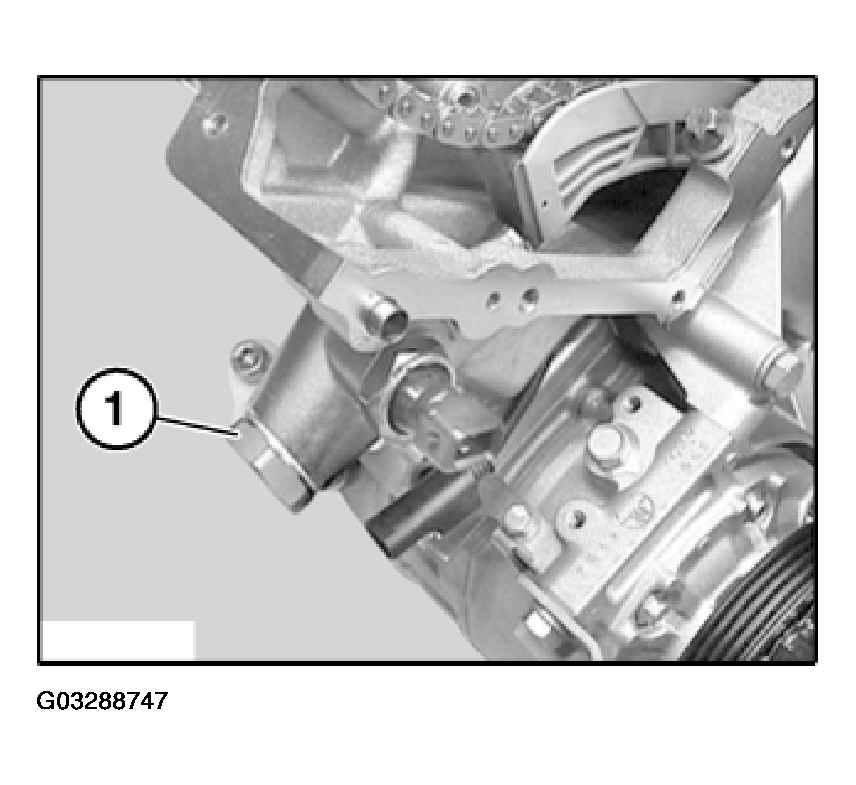

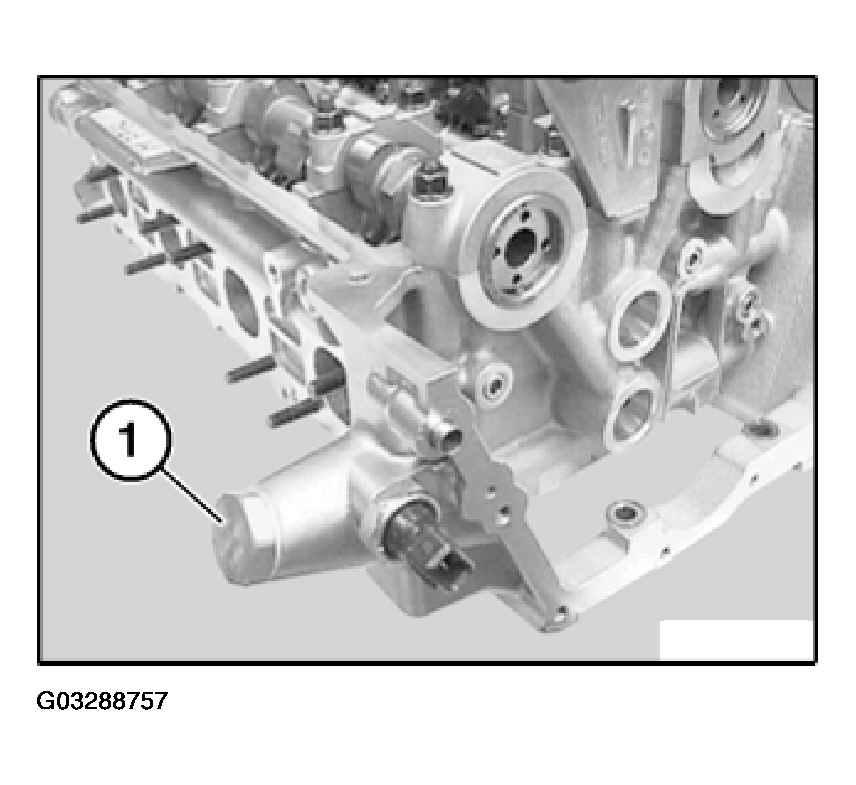

Slacken off chain tensioning piston (1) by approx. one turn.

Fig 1: Locating Chain Tensioning Piston

Courtesy of BMW OF NORTH AMERICA, INC.

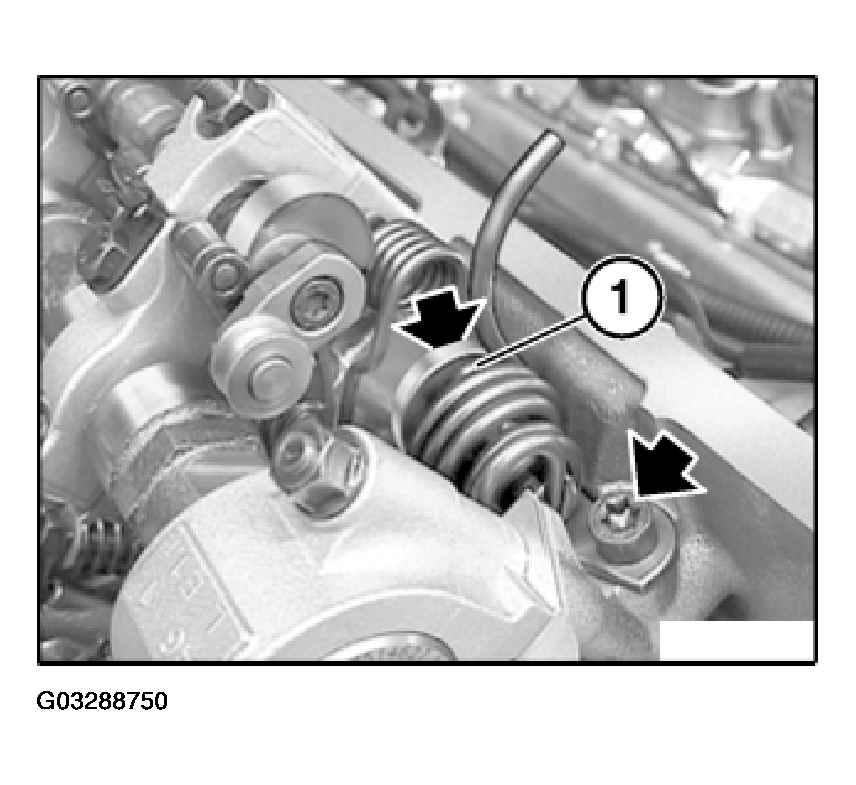

Rotate eccentric shaft at dihedral head as illustrated in order to reduce tension on torsion spring (1).

Fig 2: Reducing Tension On Torsion Spring

Courtesy of BMW OF NORTH AMERICA, INC.

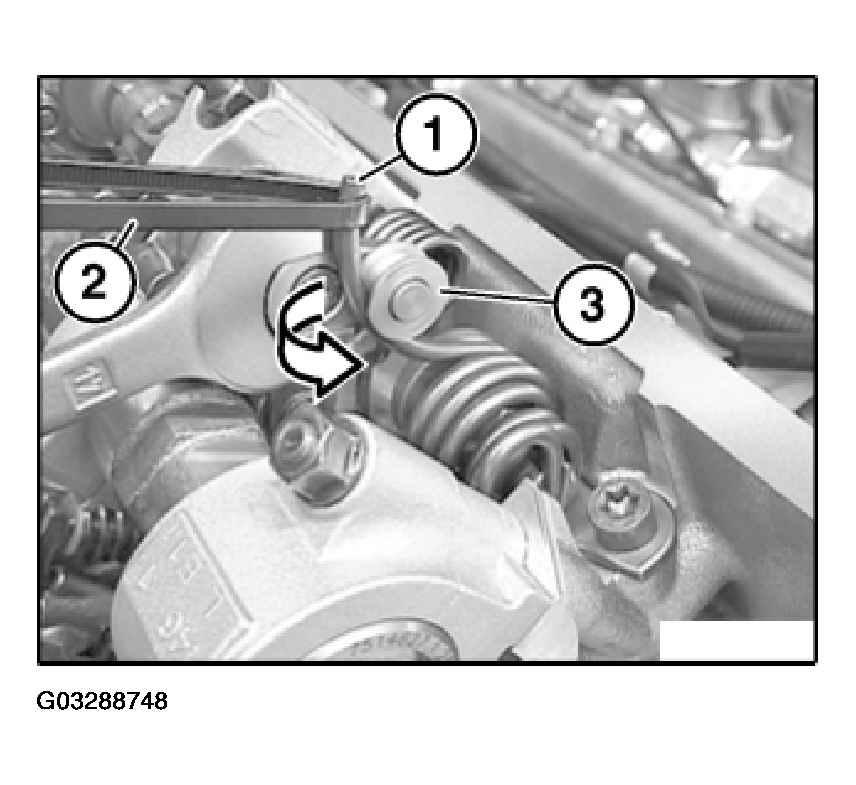

Pretension torsion spring (1) with a cable strap (2), feed out from roller (3) and carefully relieve tension.

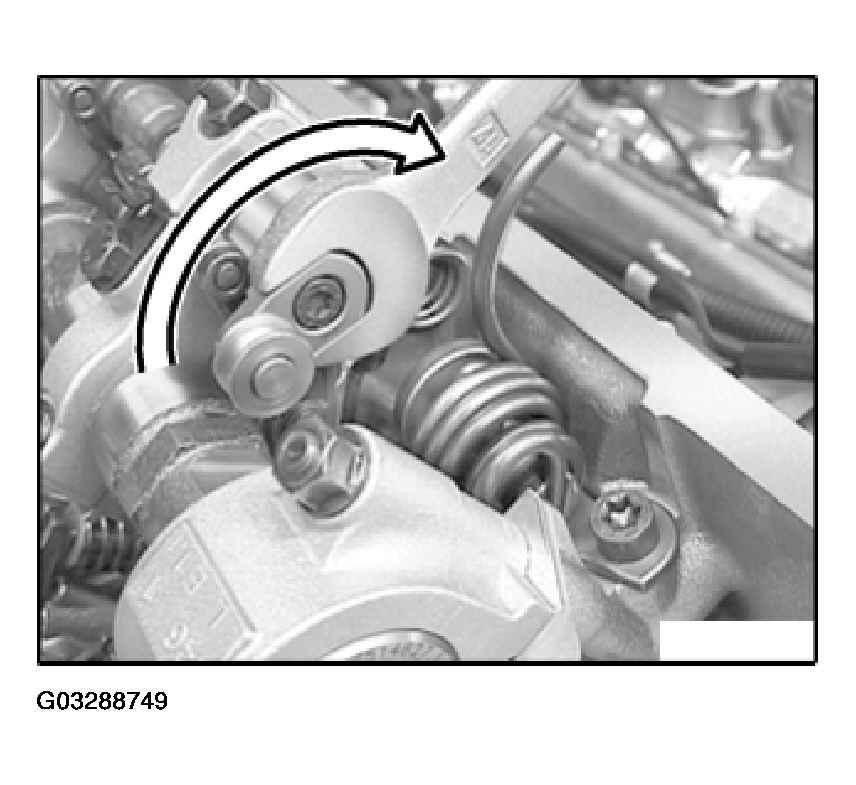

Rotate eccentric shaft at dihedral head as shown in illustration back to minimum stroke position.

Fig 3: Rotating Eccentric Shaft Back To Minimum Stroke Position

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Spring mount (1) has a locating pin opposite screw.

Fig 4: Locating Spring Mount

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw.

Feed spring mount (1) upwards out of locating pin.

NOTE: Illustration with engine removed.

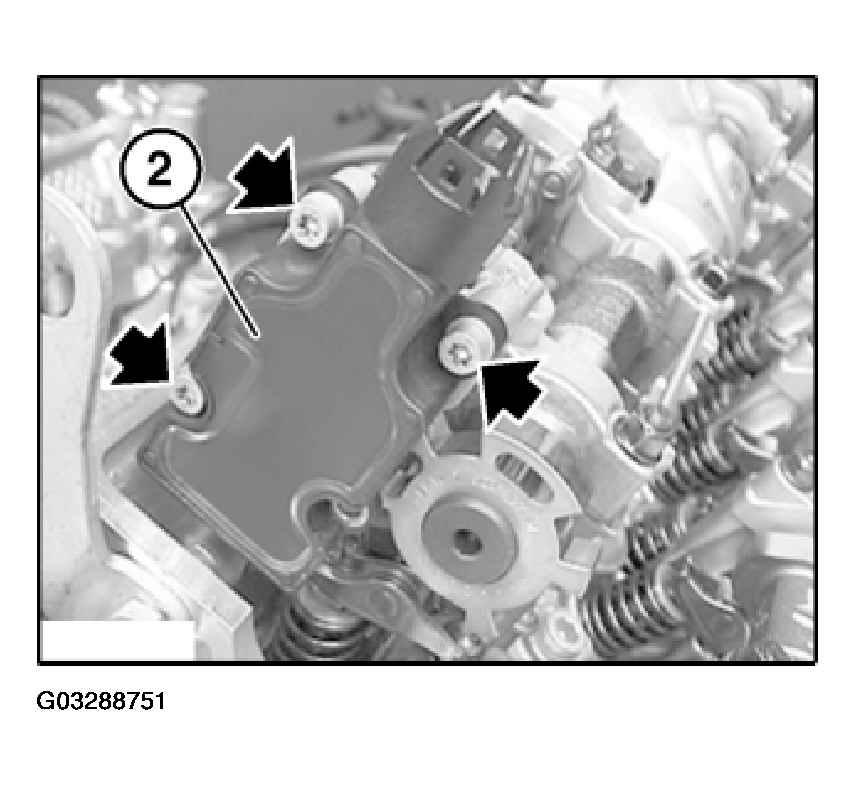

Remove eccentric shaft sensor (2).

Fig 5: Removing Eccentric Shaft Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

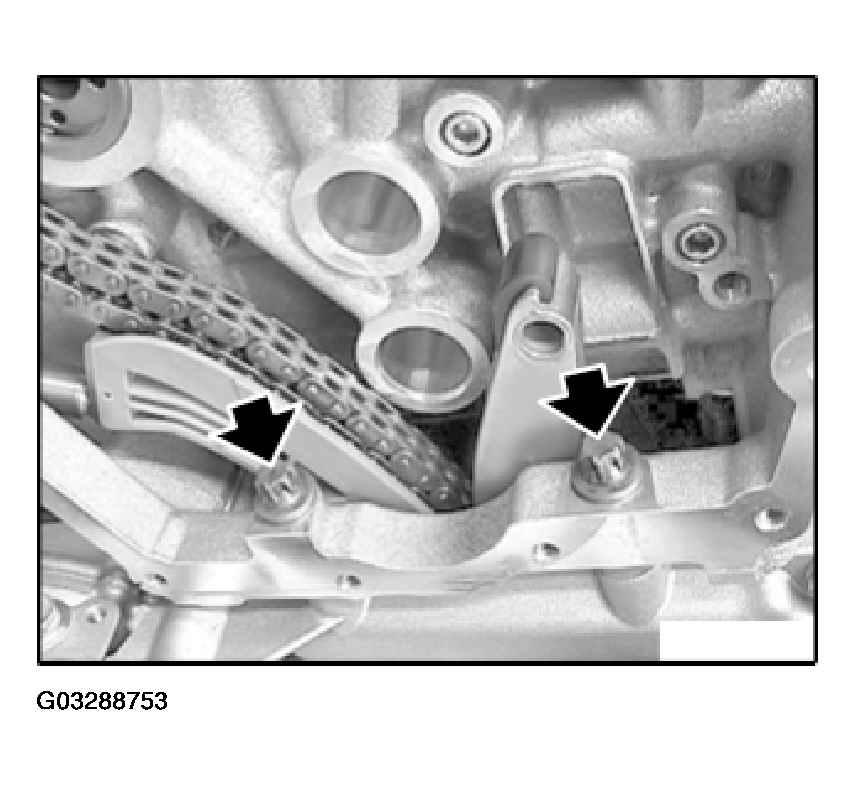

Detach guide rail from cylinder head.

Fig 6: Detaching Guide Rail From Cylinder Head

Courtesy of BMW OF NORTH AMERICA, INC.

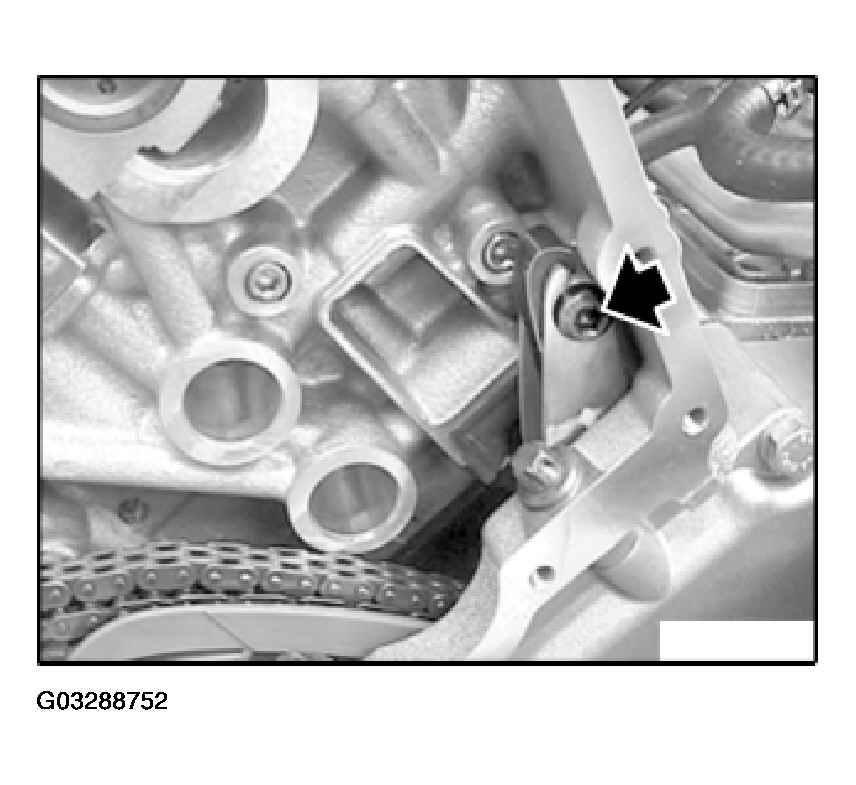

Release screws between cylinder head and timing case cover.

Fig 7: Releasing Screws Between Cylinder Head And Timing Case Cover

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: At narrow points, use a socket with 3/8" drive and a short extension.

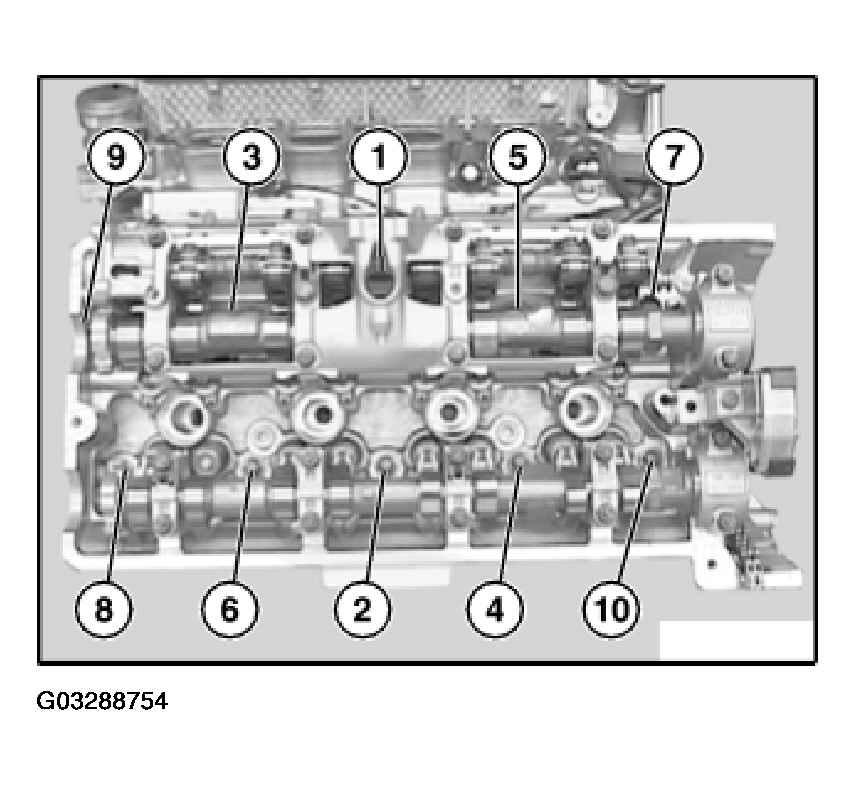

Slacken off cylinder head bolts by one turn in sequence 10 ... 1.

Fig 8: Slackening Cylinder Head Bolts In Sequence

Courtesy of BMW OF NORTH AMERICA, INC.

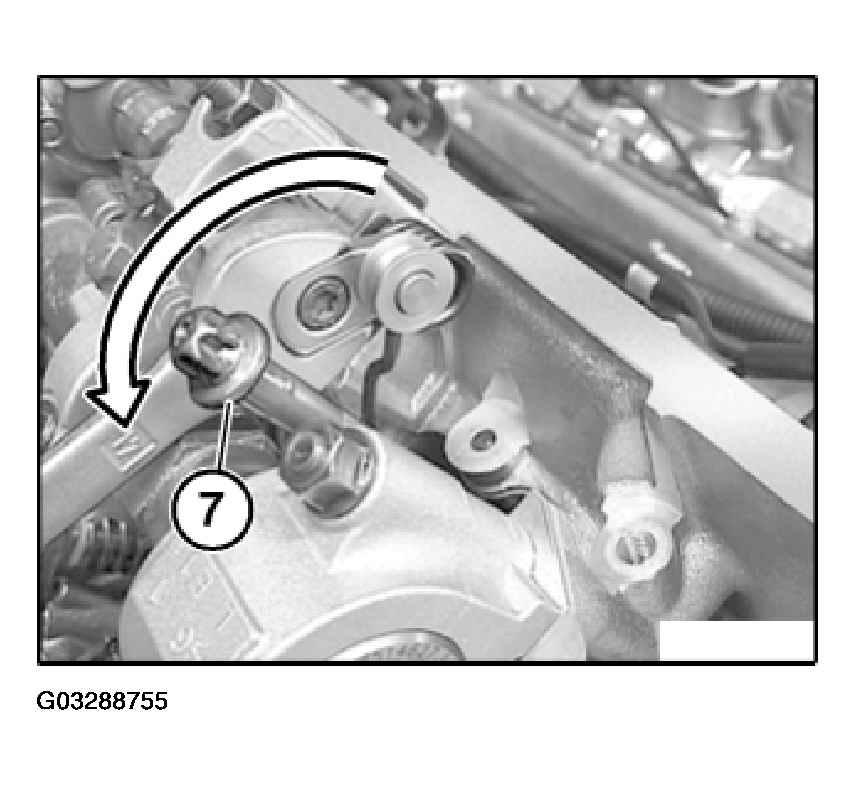

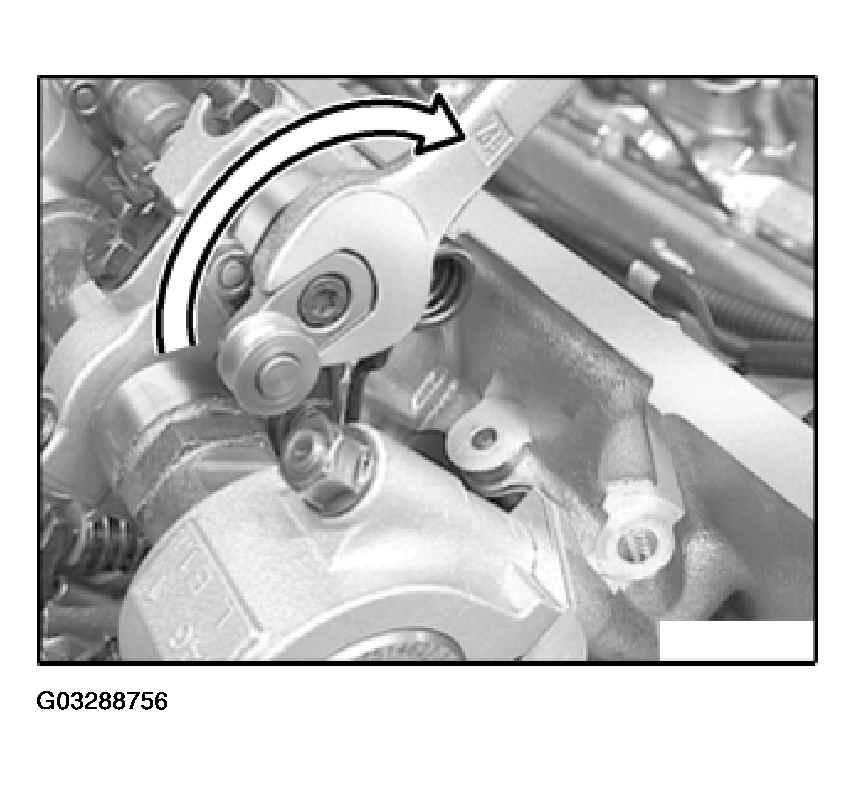

Rotate eccentric shaft at dihedral head as shown in illustration and hold in this position.

Fig 9: Rotating Eccentric Shaft

Courtesy of BMW OF NORTH AMERICA, INC.

Remove cylinder head bolt (7).

Rotate eccentric shaft at dihedral head as shown in illustration back to minimum stroke position.

Fig 10: Rotating Eccentric Shaft Back To Minimum Stroke Position

Courtesy of BMW OF NORTH AMERICA, INC.

Remove remaining cylinder head bolts.

Lift off cylinder head.

Lift off cylinder head gasket.

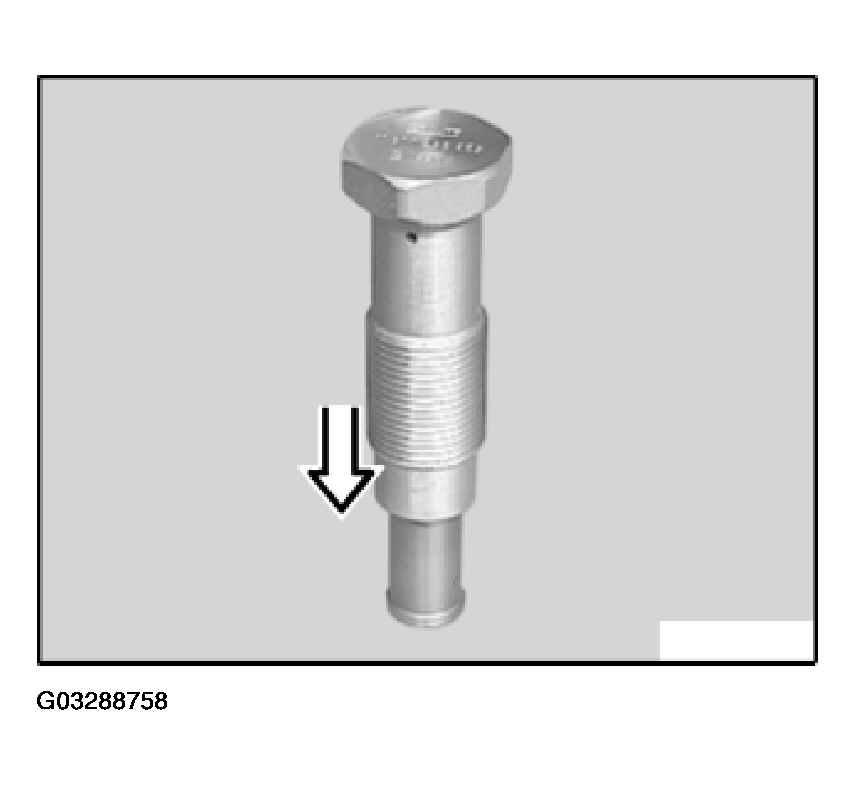

Remove chain tensioning piston (1).

Fig 11: Removing Chain Tensioning Piston

Courtesy of BMW OF NORTH AMERICA, INC.

Place chain tensioning piston (1) on a level surface and compress slowly and carefully.

Fig 12: Compressing Chain Tensioning Piston

Courtesy of BMW OF NORTH AMERICA, INC.

Repeat this procedure twice.
