11 12 105 Removing and installing left cylinder head (N62 to 9 / 03): Removal:

Removal of cylinder head is described separately from installation.

Remove inlet and exhaust adjustment unit on left side. Refer to 11 36 047 Removing and installing/replacing inlet and exhaust adjustment units on left side (N62) .

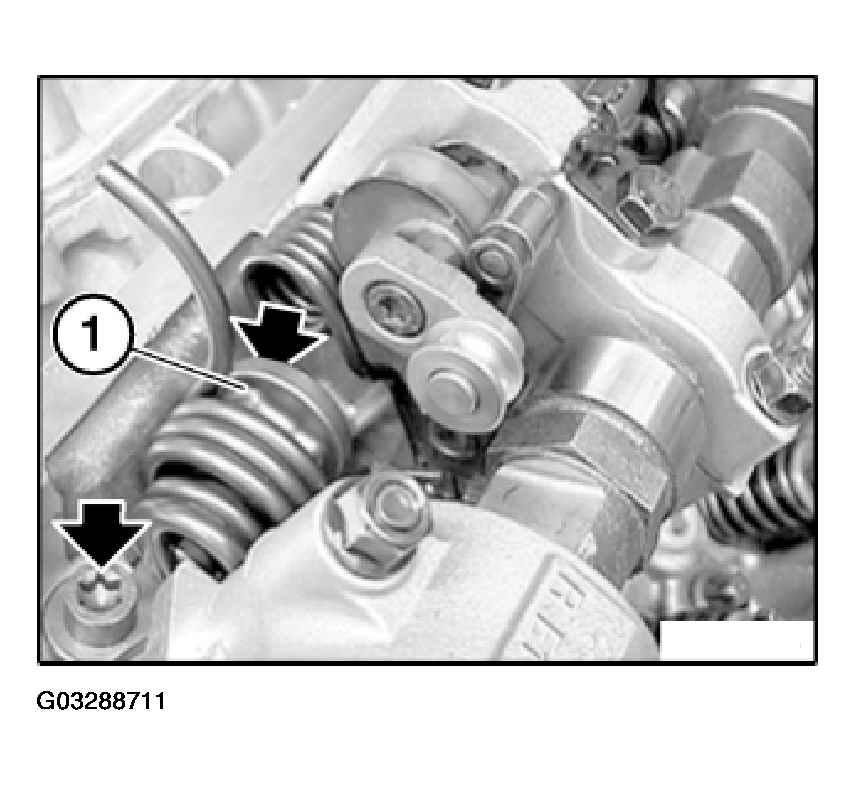

Rotate eccentric shaft at dihedral head as illustrated in order to reduce tension on torsion spring (1).

Fig 1: Rotating Eccentric Shaft

Courtesy of BMW OF NORTH AMERICA, INC.

Pretension torsion spring (1) with a cable strap (2), feed out from roller (3) and carefully relieve tension.

Rotate eccentric shaft at dihedral head as shown in illustration back to minimum stroke position.

Fig 2: Rotating Eccentric Shaft Back To Minimum Stroke Position

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 3: Locating Spring Mount

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw.

Feed spring mount (1) upwards out of locating pin.

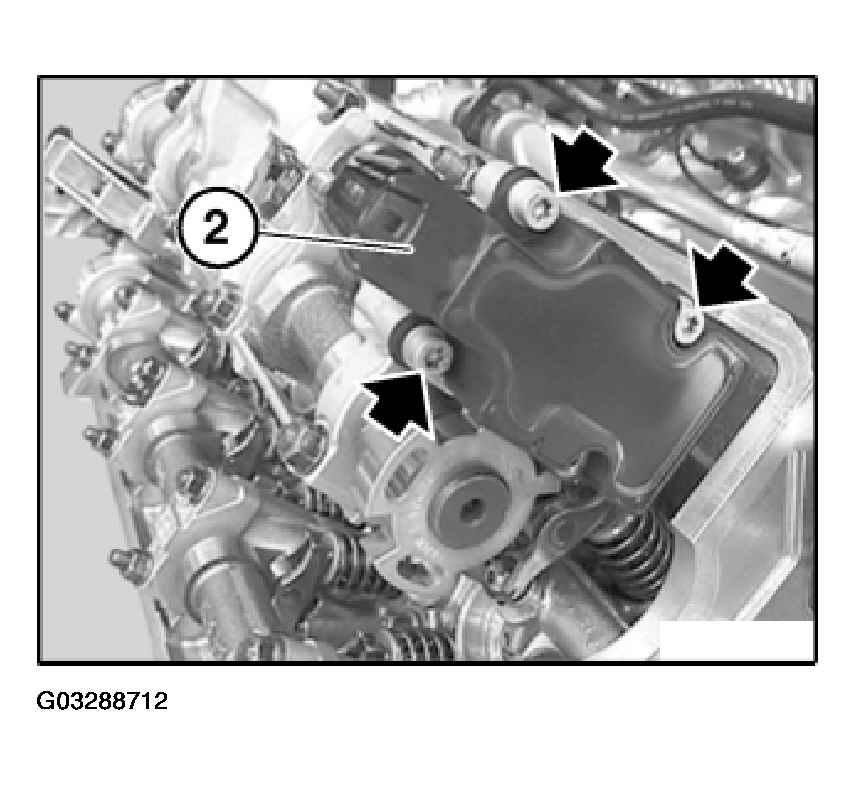

Remove eccentric shaft sensor (2).

Fig 4: Removing Eccentric Shaft Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

Detach guide rail from cylinder head.

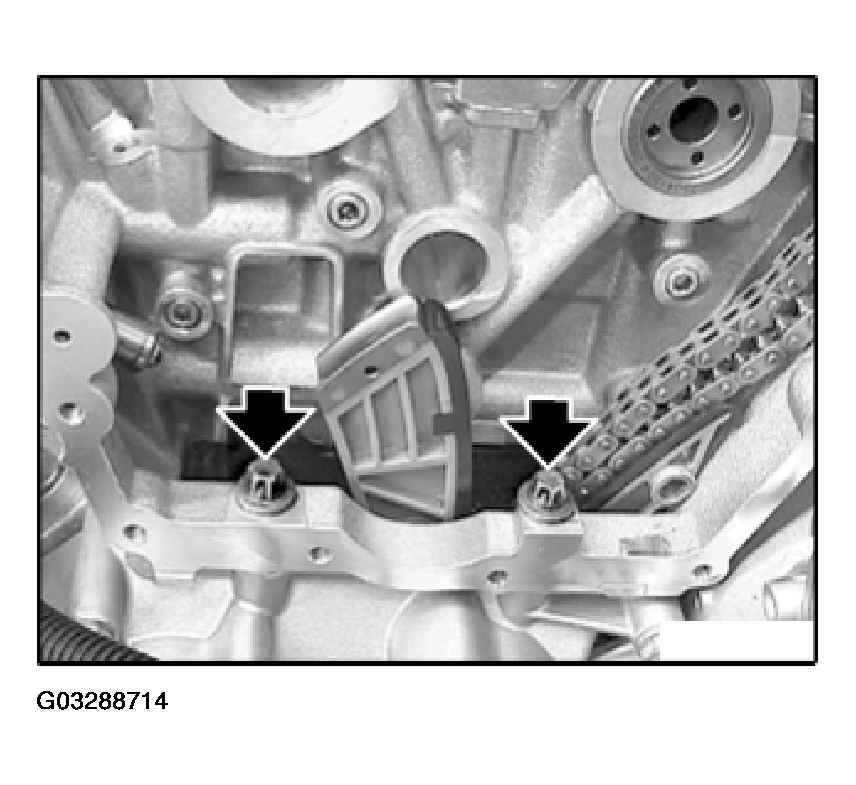

Fig 5: Detaching Guide Rail From Cylinder Head

Courtesy of BMW OF NORTH AMERICA, INC.

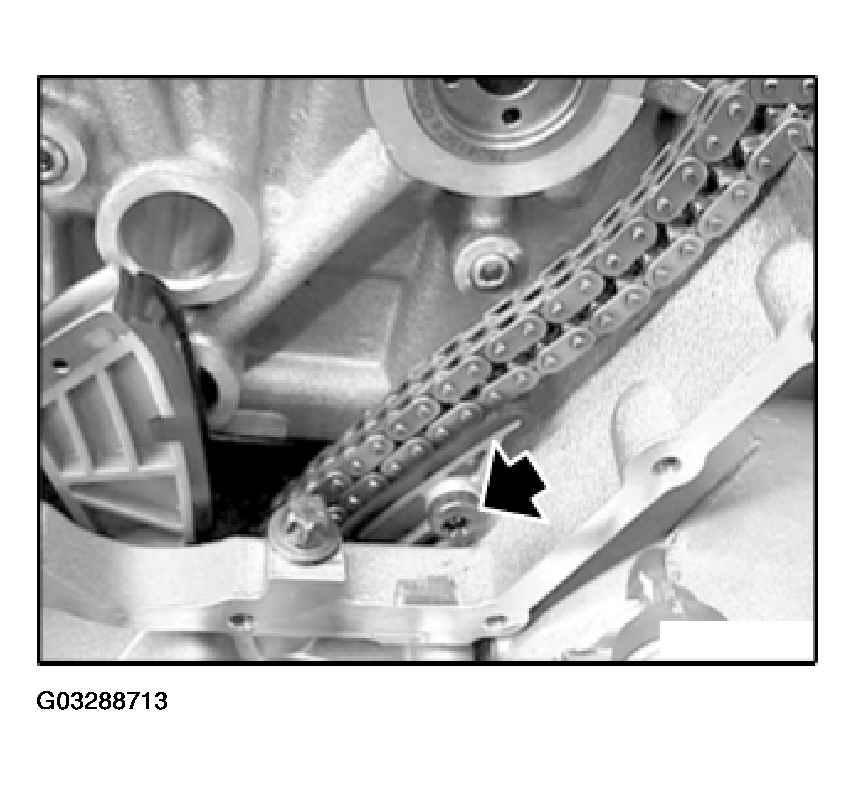

Release screws between cylinder head and timing case cover.

Fig 6: Releasing Screws Between Cylinder Head And Timing Case Cover

Courtesy of BMW OF NORTH AMERICA, INC.

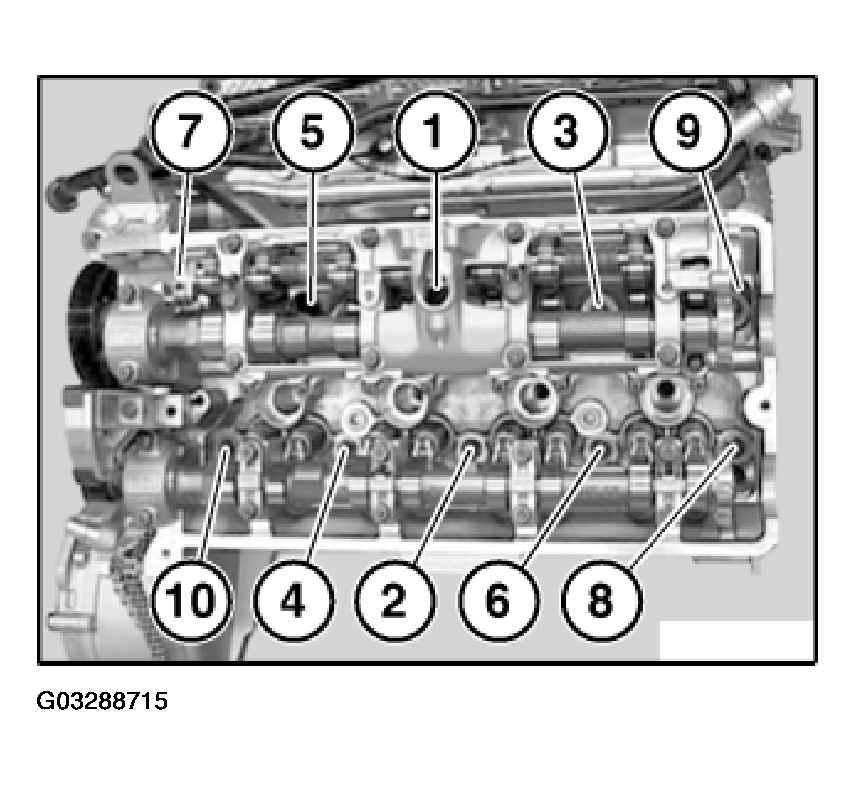

Slacken off cylinder head bolts by one turn in sequence 10 ... 1.

Fig 7: Slackening Off Cylinder Head Bolts In Sequence

Courtesy of BMW OF NORTH AMERICA, INC.

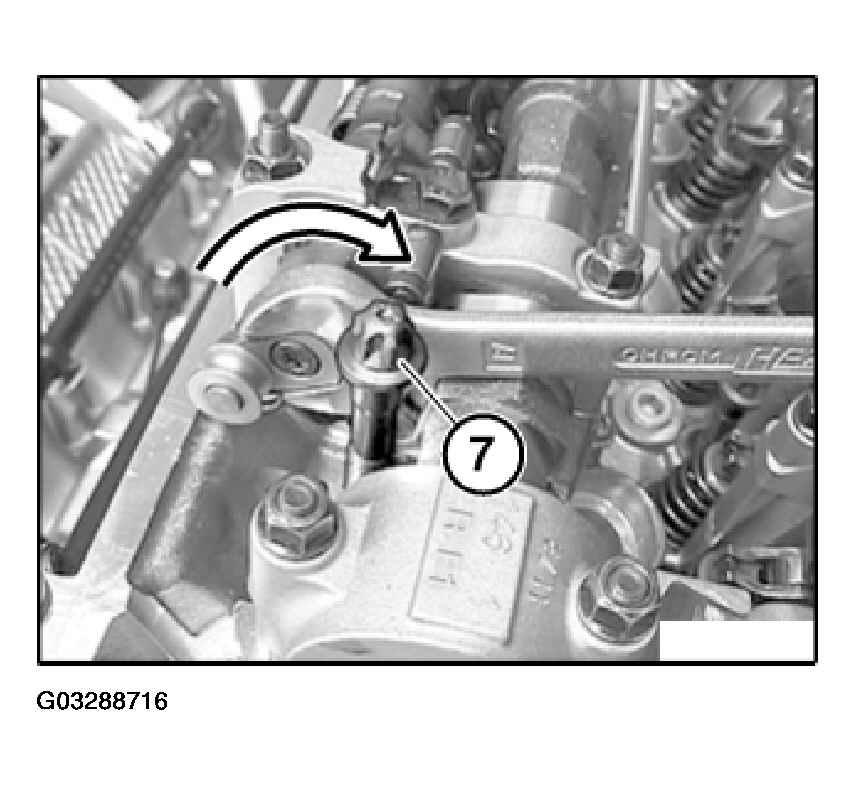

Rotate eccentric shaft at dihedral head as shown in illustration and hold in this position.

Fig 8: Rotating Eccentric Shaft At Dihedral Head

Courtesy of BMW OF NORTH AMERICA, INC.

Remove cylinder head bolt (7).

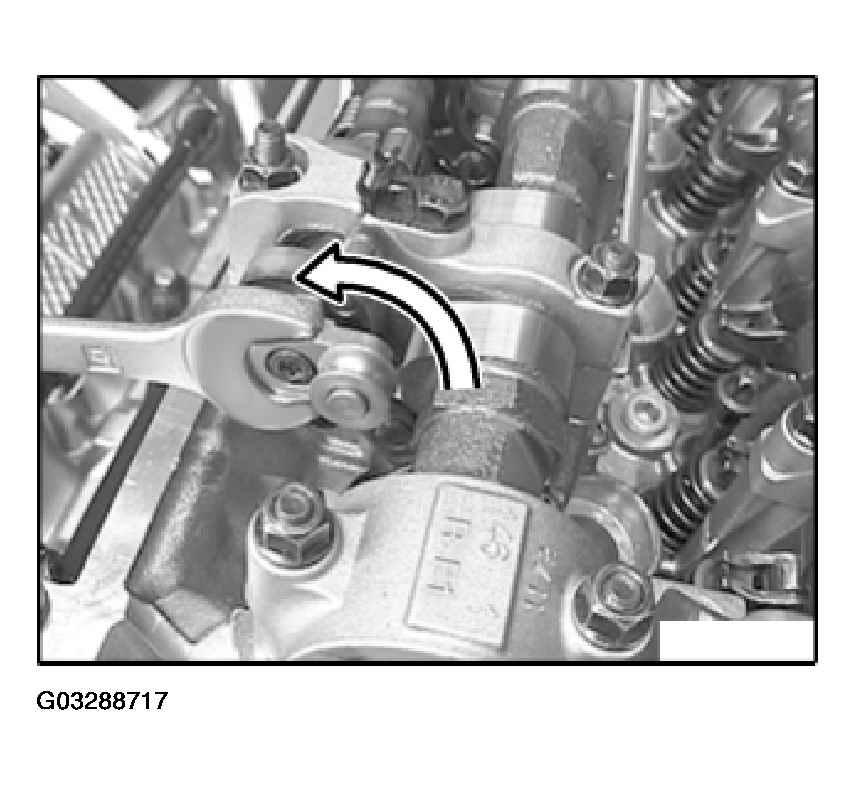

Rotate eccentric shaft at dihedral head as shown in illustration back to minimum stroke position.

Fig 9: Rotating Eccentric Shaft Back To Minimum Stroke Position

Courtesy of BMW OF NORTH AMERICA, INC.

Remove remaining cylinder head bolts.

Lift off cylinder head.

Lift off cylinder head gasket.
