11 12 006 Removing and installing / sealing right cylinder head cover (N62 / N62TU): Installation:

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Clean seal residue from sealing surfaces.

Coat contact surfaces of joint with Drei Bond 1209.

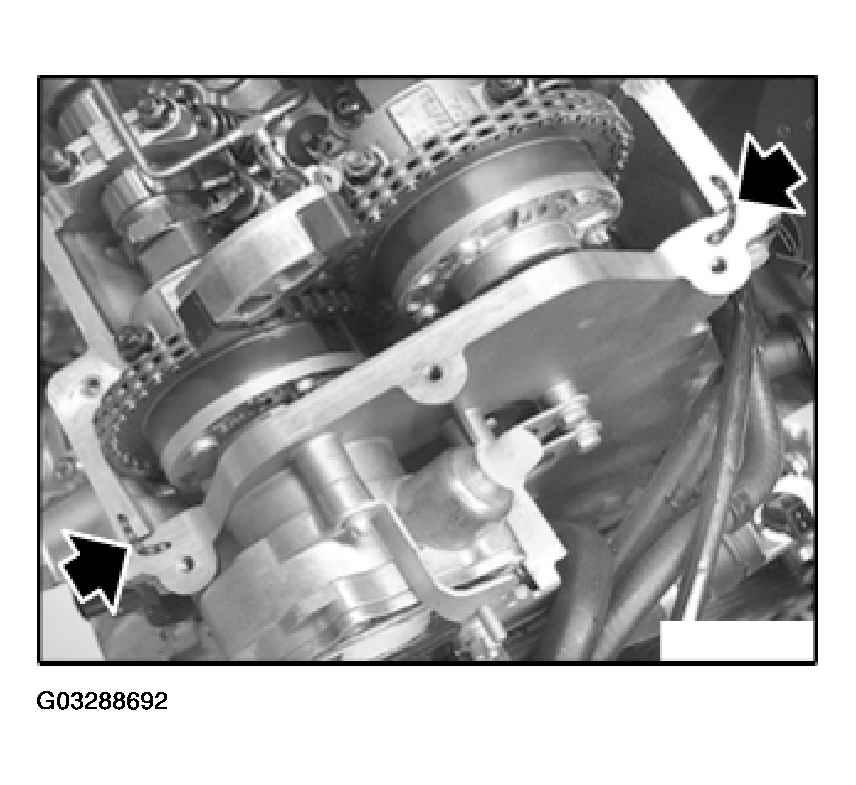

Fig 1: Locating Sealing Surfaces

G03288692

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Clean seal residue from sealing surfaces.

Apply a thin, uniform bead of Drei Bond 1209 to transition area of half-moon sections.

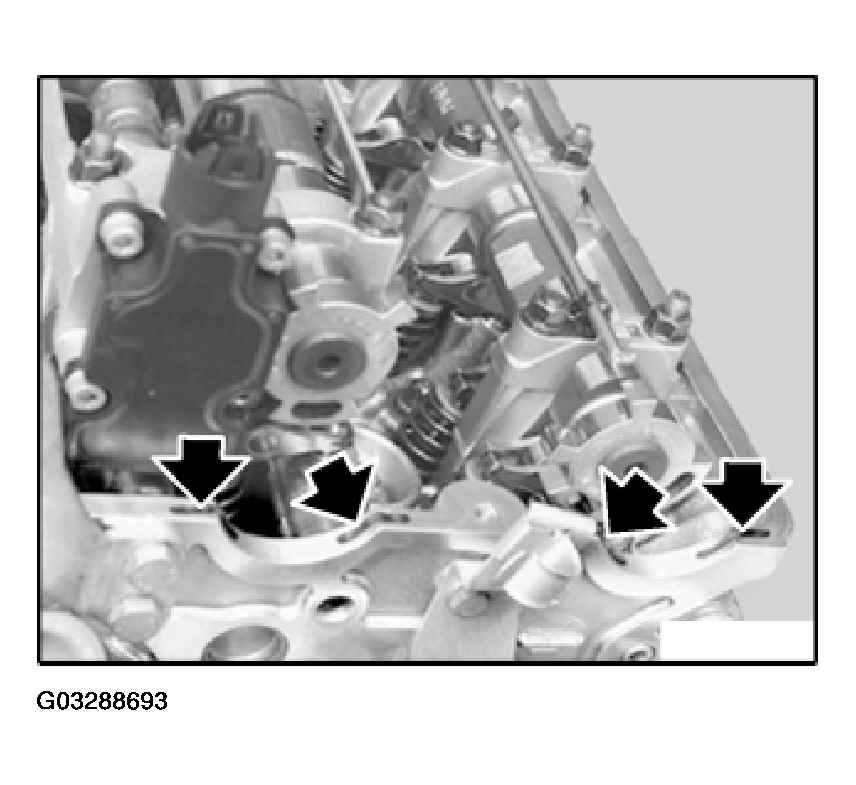

Fig 2: Locating Transition Area Of Half-Moon Sections

G03288693

Courtesy of BMW OF NORTH AMERICA, INC.

Replace sealing elements (1).

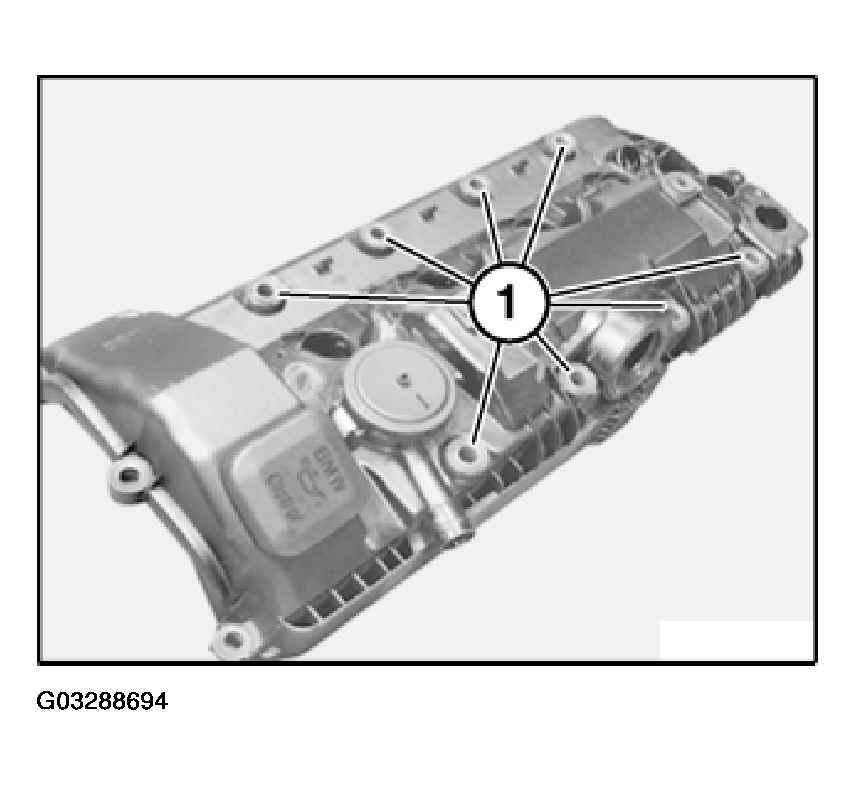

Fig 3: Replacing Sealing Elements

G03288694

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure gasket is correctly seated at sides and on rear side of cylinder head.

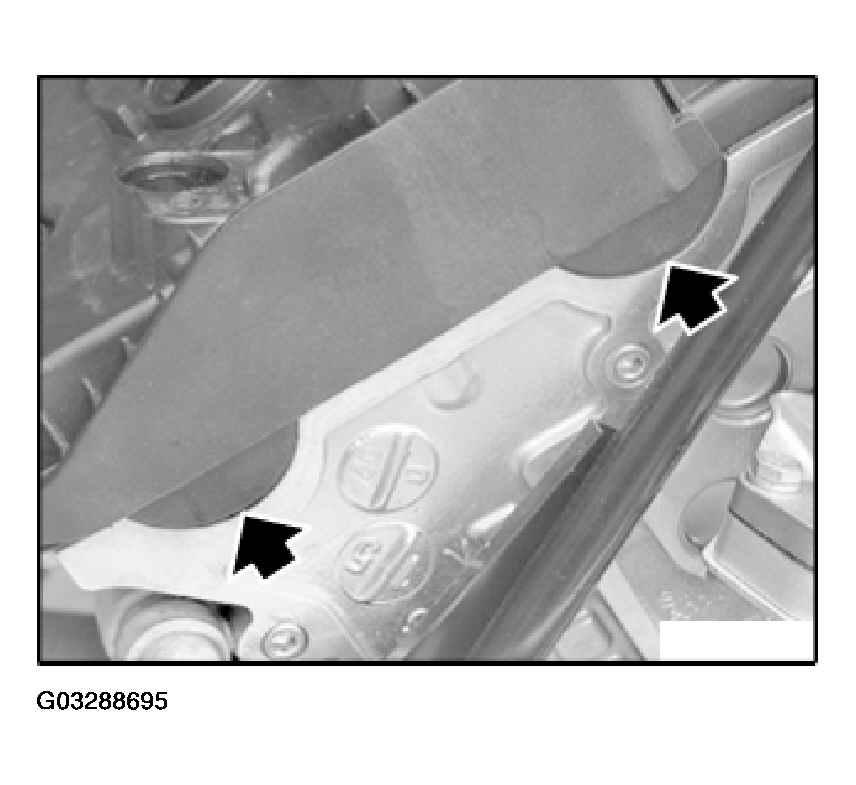

Fig 4: Locating Gasket

G03288695

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Screw connections (1, 2, 3 and 4) of cylinder head cover are different.

Replace screw connections (3).

Move cylinder head cover with gasket into assembly position. Secure cylinder head cover, starting with screw connection (4) from front.

Tighten down screw connections (1, 2 and 3) in diagonal sequence from inside to outside.

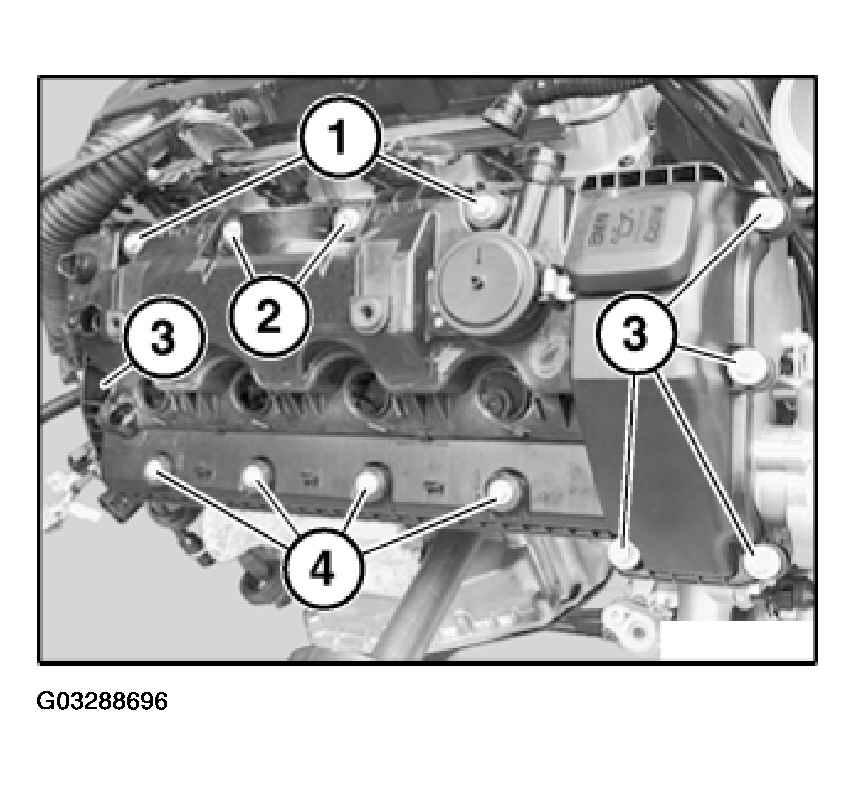

Fig 5: Locating Screw Connections Of Cylinder Head Cover

G03288696

Courtesy of BMW OF NORTH AMERICA, INC.
