11 24 571 Replacing all conrod bearings (N62)

Special tools required:

• 00 2 590
• 00 9 120
• 11 2 110

(piston removed)

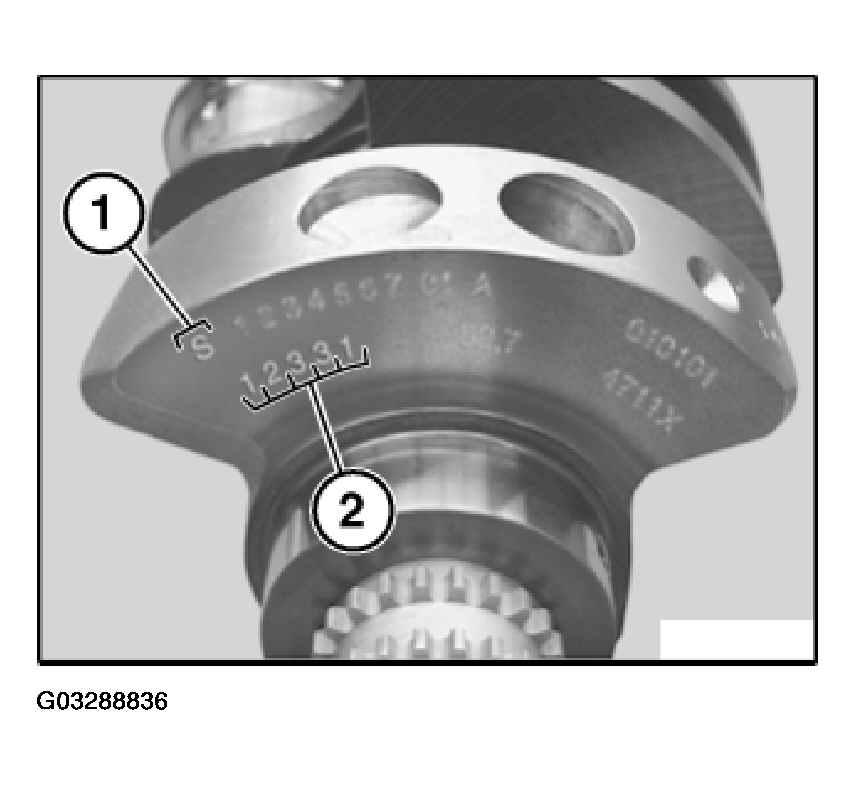

The letter (1) denotes the crankshaft construction stage.

Fig 1: Identifying Crankshaft Construction Stage

Courtesy of BMW OF NORTH AMERICA, INC.

The numbers (2) denote the bearing shell classification for the relevant bearing position from 1 to 5 (main bearing cap).

Install new conrod bearing shells.

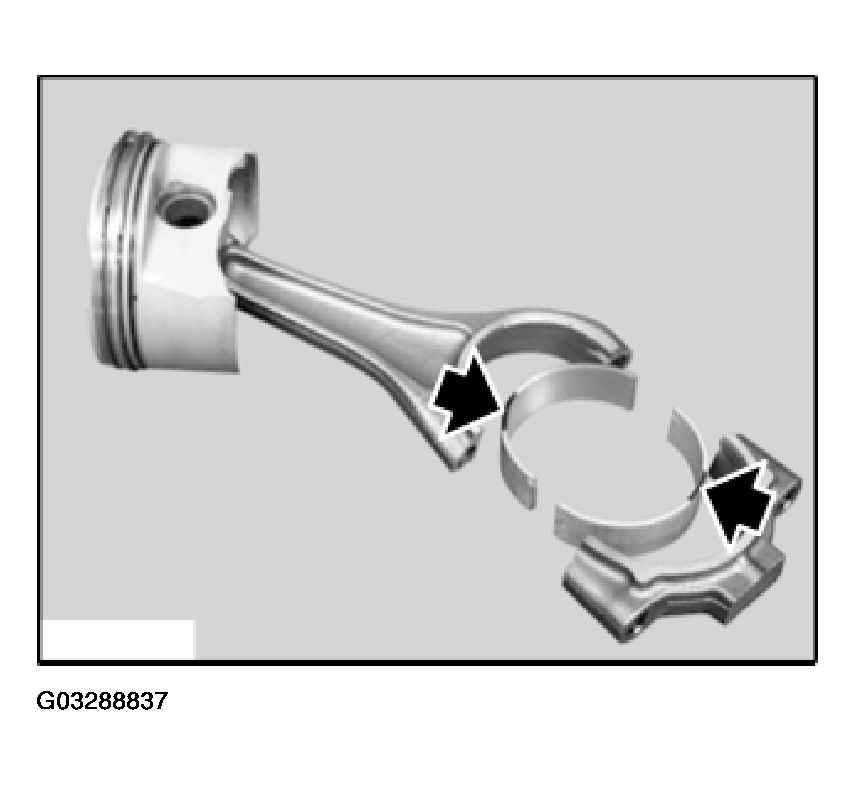

Fig 2: Installing New Conrod Bearing Shells

Courtesy of BMW OF NORTH AMERICA, INC.

Insert one red and one blue bearing shell for each conrod.

Install piston. Refer to 11 25 530 Removing and installing/replacing all pistons (N62) .

Check connecting-rod bearing clearance:

Piston in BDC position.

Fit special tool 00 2 590 (Plastigage Type PG 1) to the oil-free crankshaft.

Position bearing caps so that pair numbers match up.

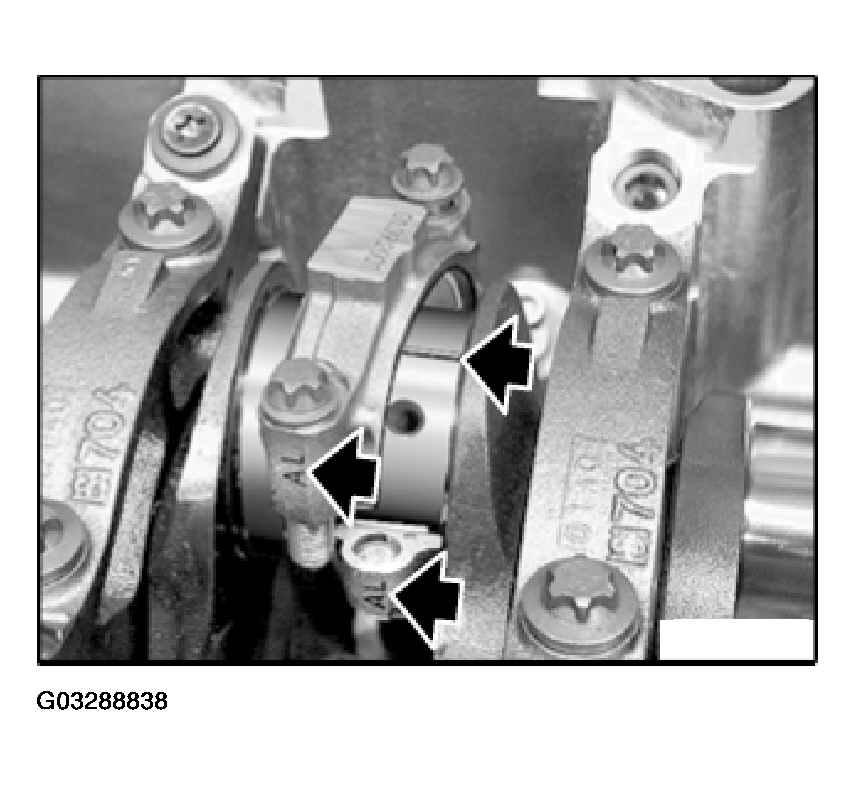

Fig 3: Positioning Bearing Caps

Courtesy of BMW OF NORTH AMERICA, INC.

Use the old connecting-rod bolts to check connecting-rod clearance.

Tighten down conrod bolts with special tool 00 9 120 or special tool 11 2 110.

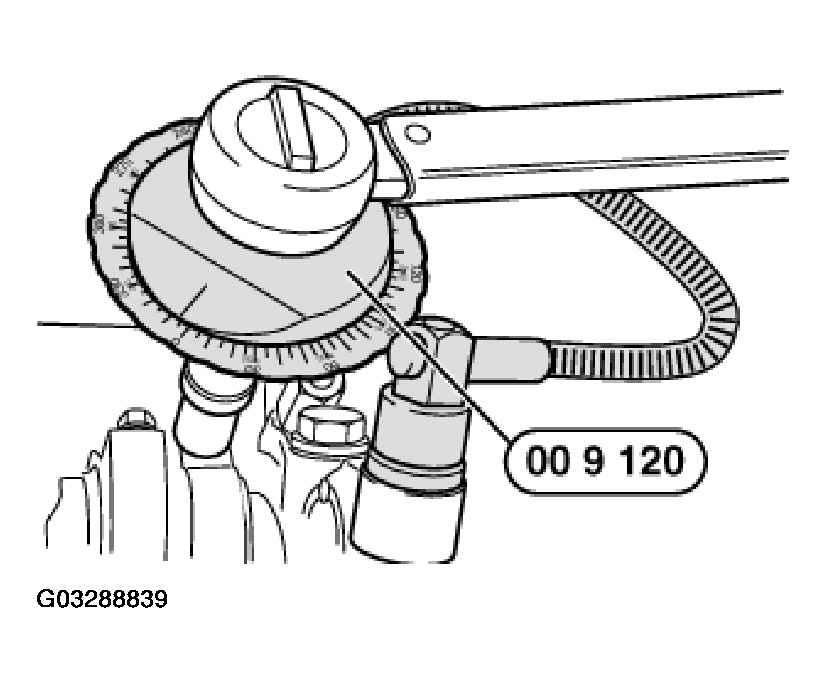

Fig 4: Tightening Conrod Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

Tightening torque 11 24 1AZ. Refer to ENGINE - TIGHTENING TORQUES .

Remove bearing cap and read off bearing play at width of flattened plastic thread with assistance of measurement scale.

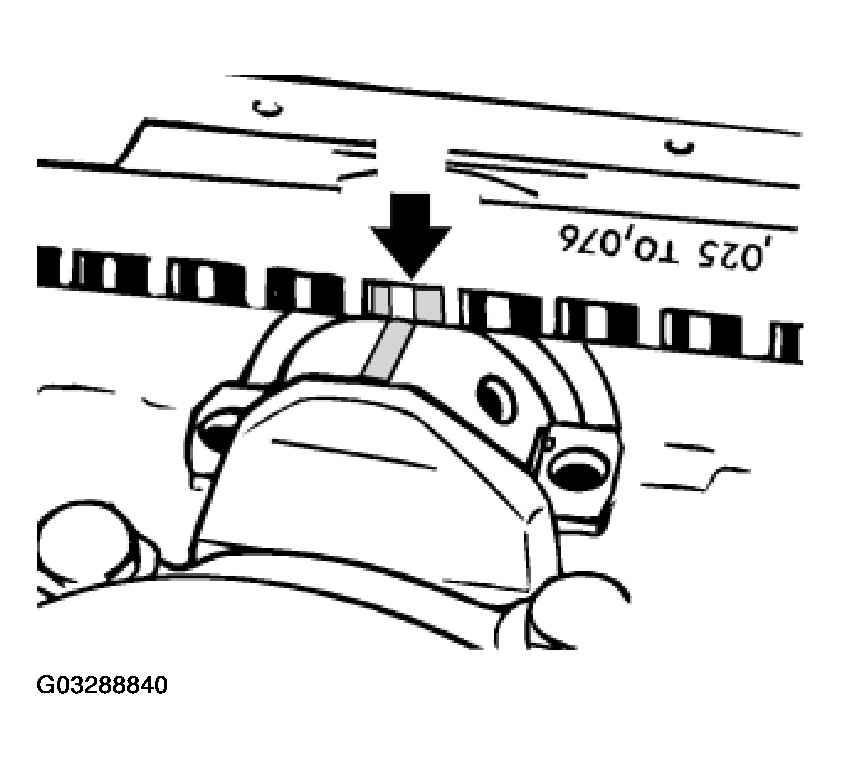

Fig 5: Measuring Bearing Play

Courtesy of BMW OF NORTH AMERICA, INC.

Conrod bearing clearance. Refer to ENGINE - TECHNICAL DATA .

• Remove plastic thread.
• Lubricate crankshaft and bearing shells.
• Install new connecting-rod screws.

Tighten down conrod bolts with special tool 00 9 120 or special tool 11 2 110.

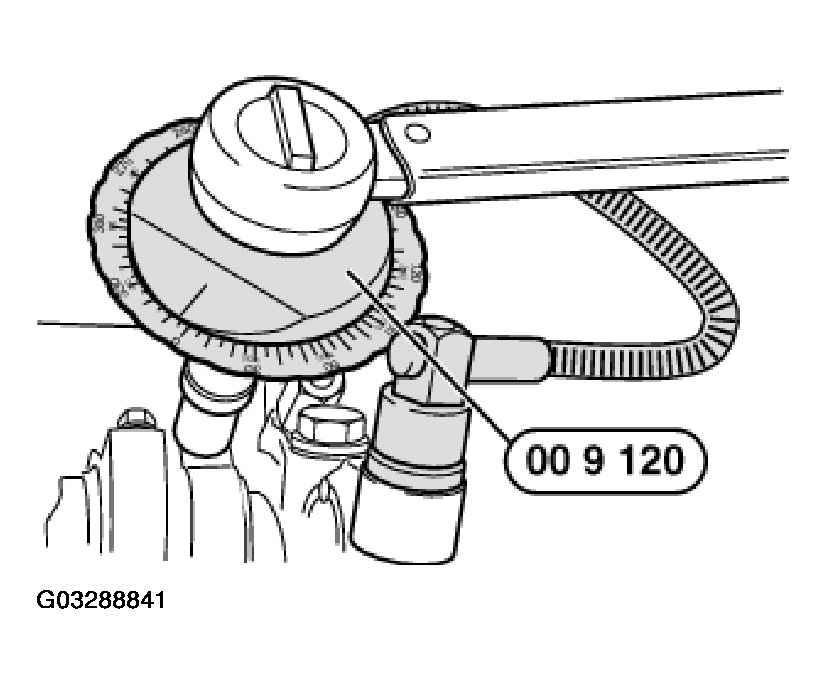

Fig 6: Tightening Conrod Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

Tightening torque 11 24 1AZ. Refer to ENGINE - TIGHTENING TORQUES .
