Topping up transmission fluid after a repair:

WARNING: This page is about a different car, the 2005 BMW 745i, 2004 BMW 745i, 2003 BMW 745i, and 2002 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Stand vehicle on a level surface and secure against rolling off. Undo filler plug (1).

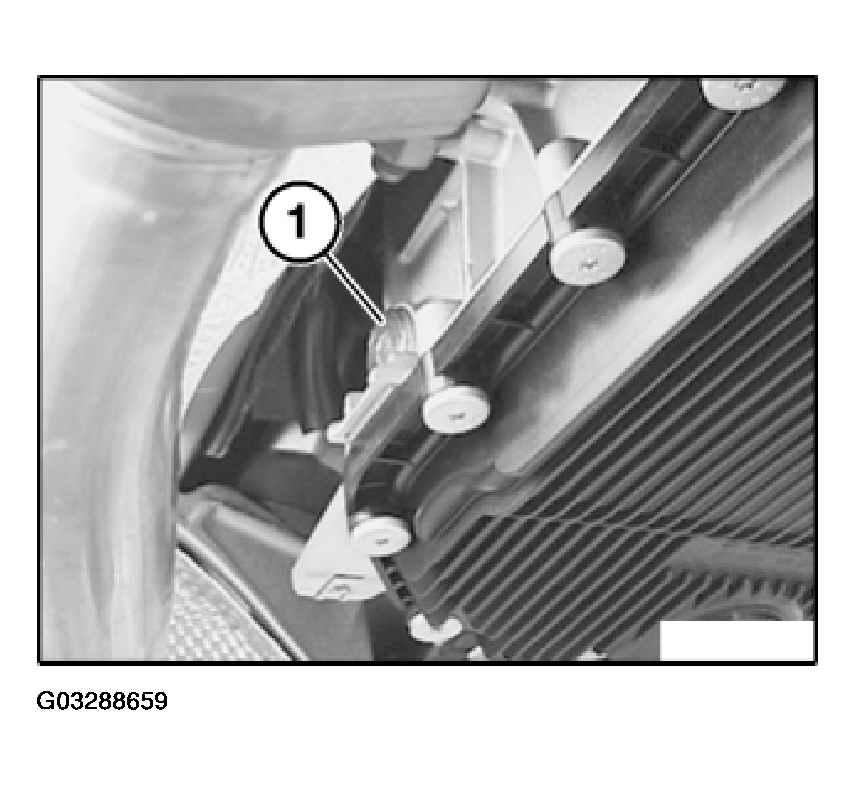

Fig 1: Identifying Filler Plug
G03288659Courtesy of BMW OF NORTH AMERICA, INC.
