67 16 011 Removing and installing/replacing left headlight vertical aim adjuster (xenon headlamp, up to 09/2000)

Remove lens/reflector. 63 12 037 REMOVING AND INSTALLING/REPLACING LENS/REFLECTOR FOR LEFT HEADLIGHT (XENON HEADLAMP, UP TO 09/2000)

Turn plug connection (1) in direction of arrow and disconnect.

Remove low beam cover (2).

Turn side-marker lamp bulb holder (3) in direction of arrow and remove.

Turn plug housing (4) in direction of arrow and remove.

Remove high beam cover cap (5).

Installation:

Make sure low beam cover (2) and high beam cover cap (5) are correctly seated.

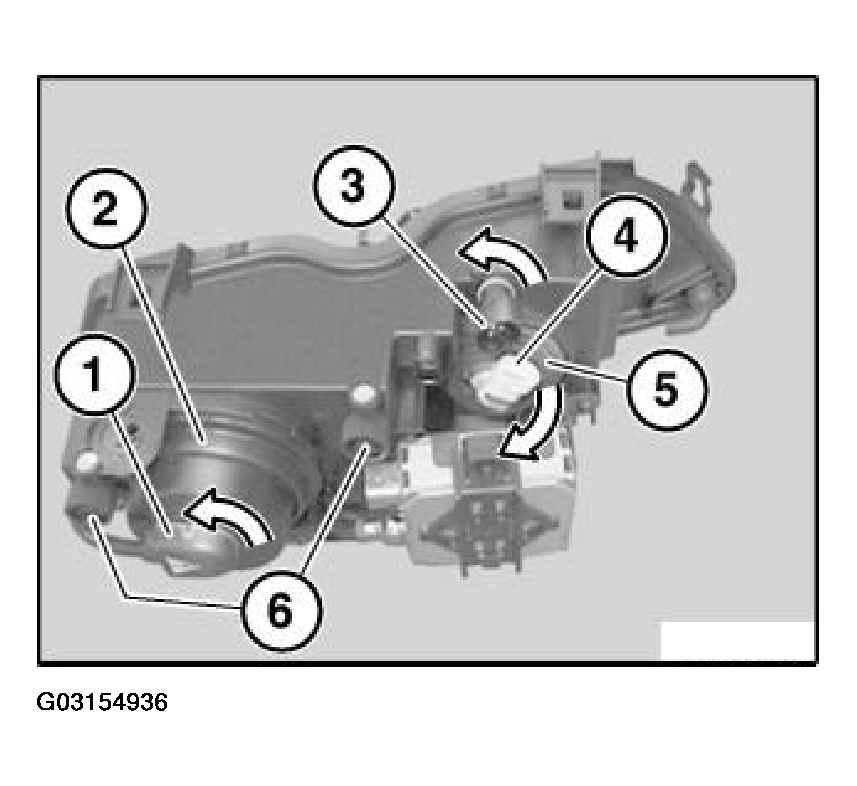

Fig 1: Removing Low Beam Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Fully release adjusting screws (6).

From 01/1997:

In addition, turn lower holder through approx. 90° and lever out at headlight vertical aim adjuster underneath.

All:

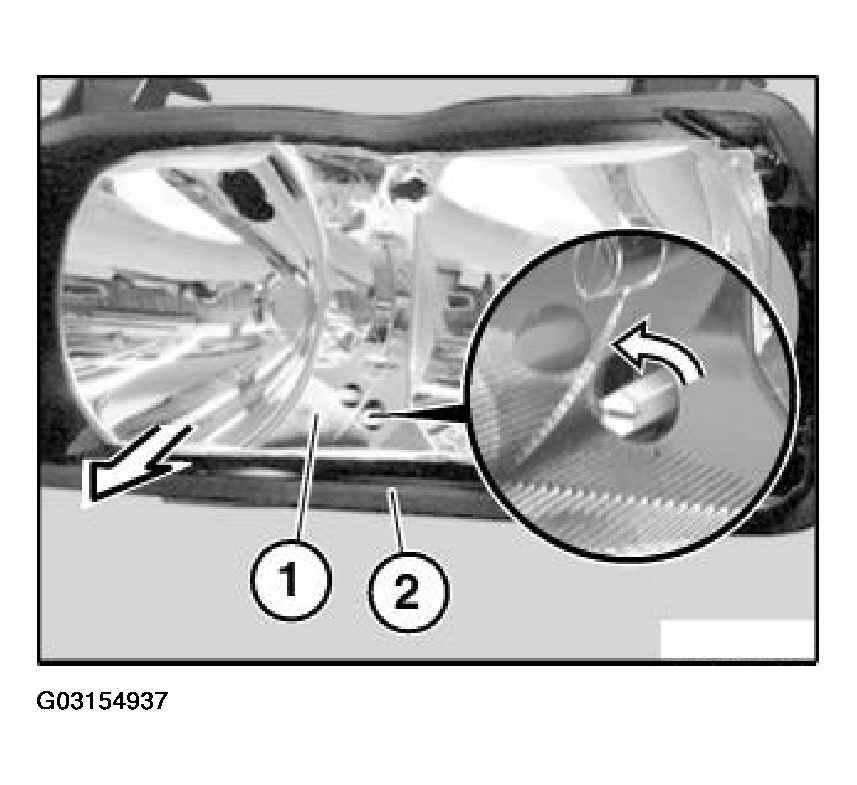

Pull insert (1) in direction of arrow out of headlamp housing (2).

Fig 2: Pulling Insert In Direction Of Arrow Out Of Headlamp Housing

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure guides (1) and (2) are correctly seated in headlamp housing (3).

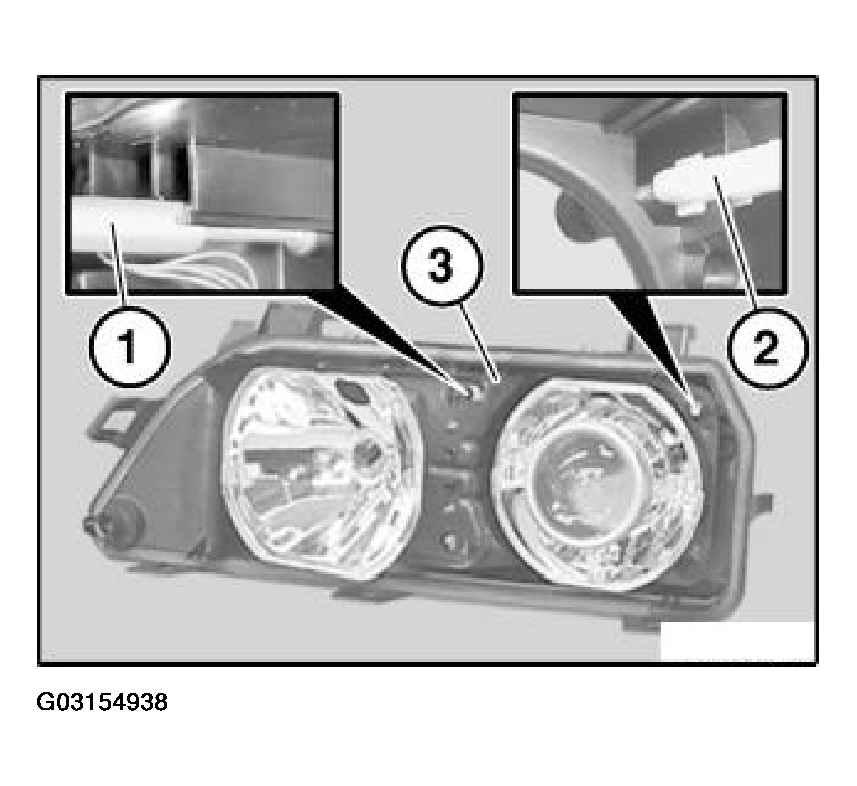

Fig 3: Checking Seated In Headlamp Housing

Courtesy of BMW OF NORTH AMERICA, INC.

Up to 01/1997:

When converting the headlight vertical aim adjuster from a headlight (old version), you must clip the supplied holder onto the headlight vertical aim adjuster.

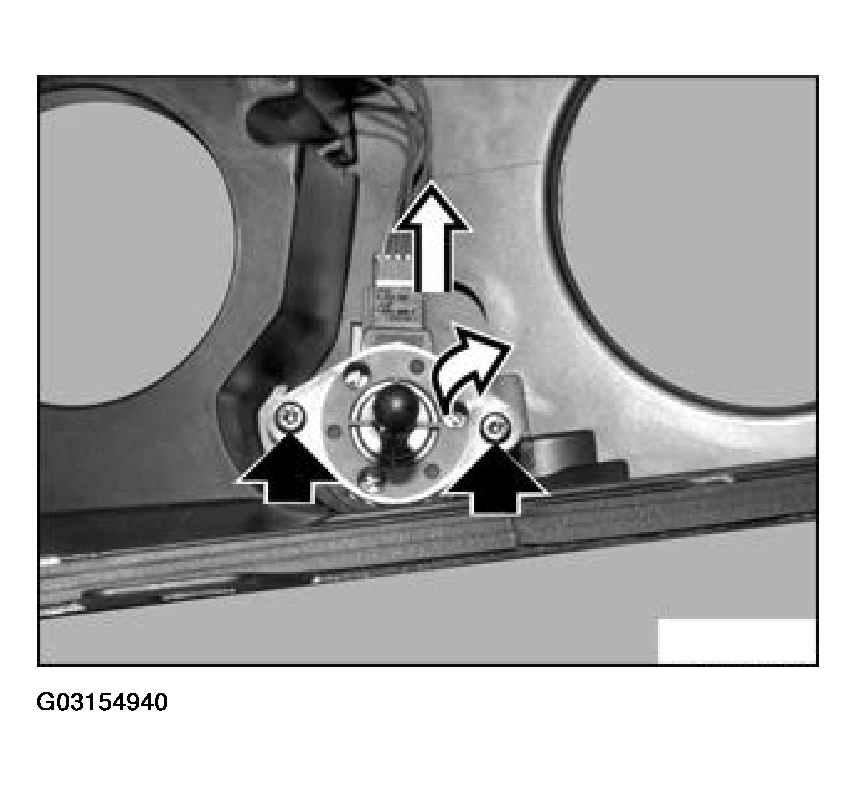

Fig 4: Converting Headlight Vertical Aim Adjuster From Headlight

Courtesy of BMW OF NORTH AMERICA, INC.

All:

Unfasten screws.

Disconnect plug connection and remove headlight vertical aim adjuster.

Installation:

Adjust headlights.

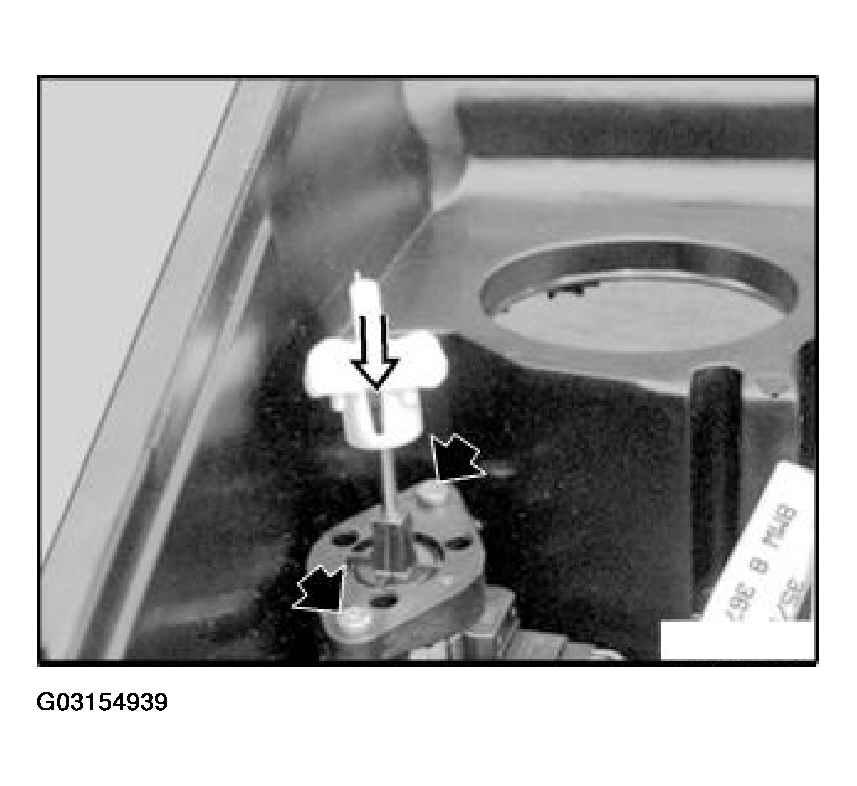

Fig 5: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
