67 63 511 Removing and installing / replacing wiper motor: Notes

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Remove complete wiper console, refer to 61 61 270 REMOVING AND INSTALLING COMPLETE WIPER CONSOLE .

Unfasten nut and remove drive crank with linkage.

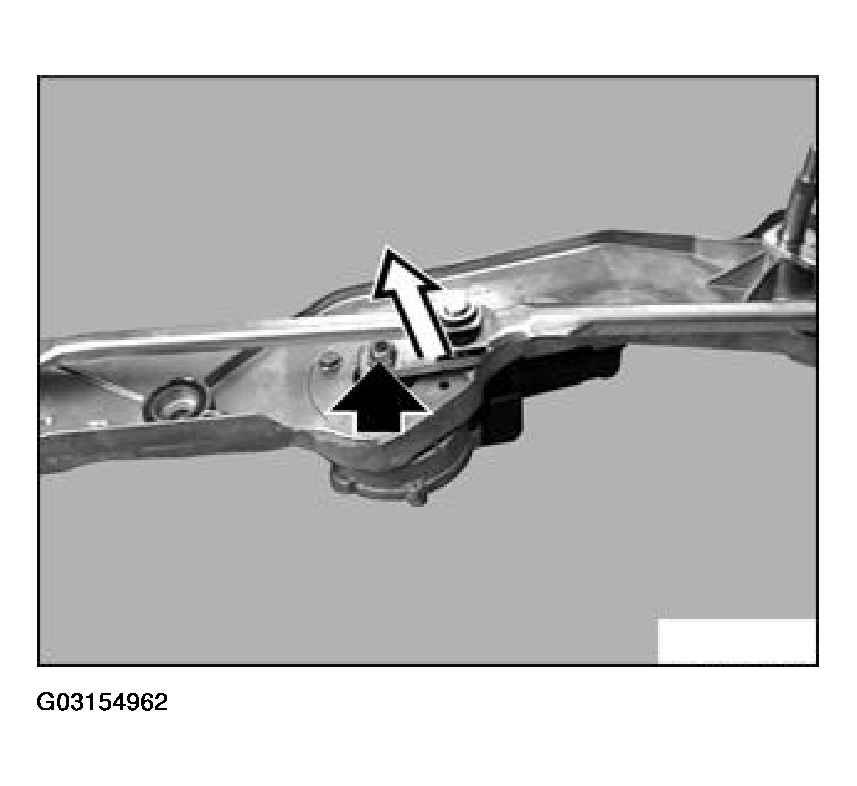

Fig 1: Removing Drive Crank With Linkage

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws and remove wiper motor from console.

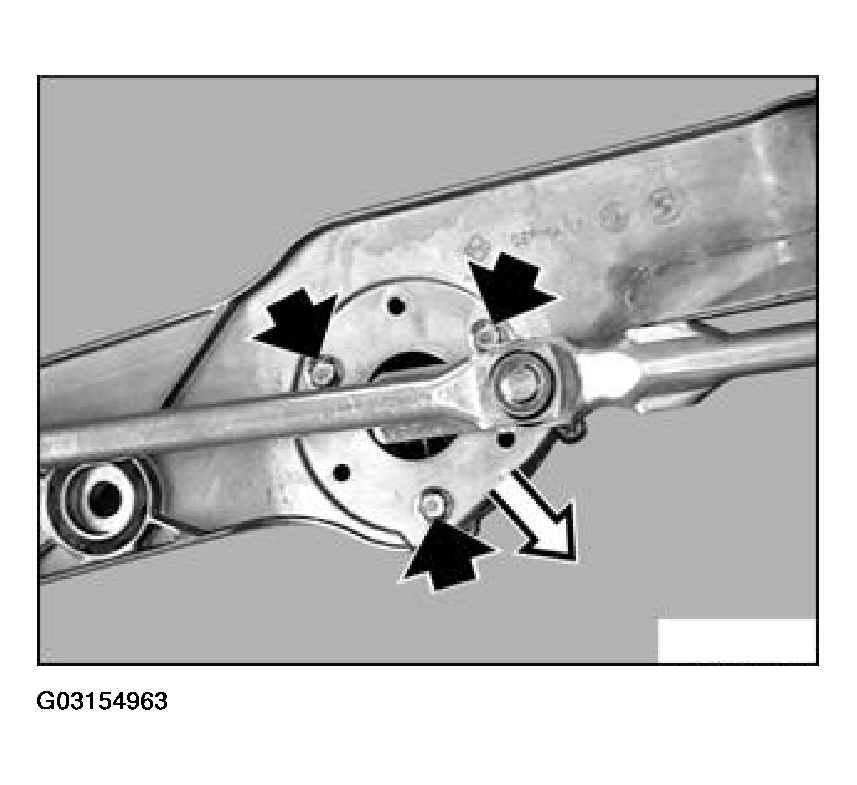

Fig 2: Removing Wiper Motor From Console

Courtesy of BMW OF NORTH AMERICA, INC.
