67 63 511 Removing and installing / replacing wiper motor: Installation:
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.
Install wiper motor together with console. Fit connector and run wiper in rest position. Reinsert connector.

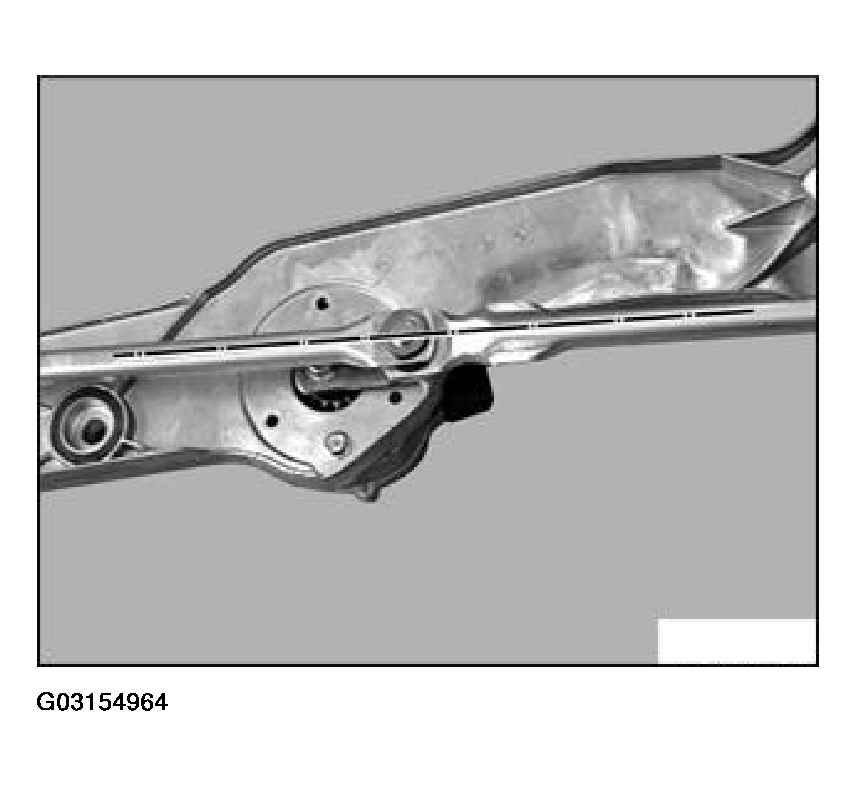

Align wiper linkage in one line, attach drive crank to wiper shaft and tighten down. Comply with tightening torque, refer to 61 61 4AZ in GENERAL ELECTRICAL SYSTEM - TIGHTENING TORQUE
Refit the connector.
